Studded Tubes Finned Tubes Alloy Steel ASTM A335 P9 For Furnaces In Power Plant
Studded Tubes Finned Tubes Alloy Steel ASTM A335 P9 For Furnaces In Power Plant

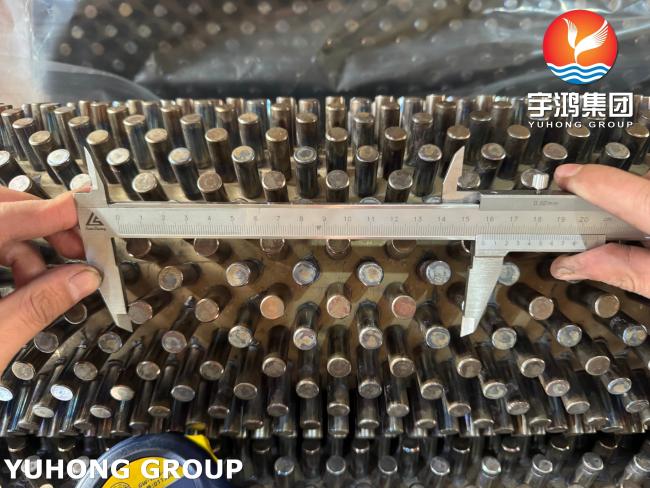

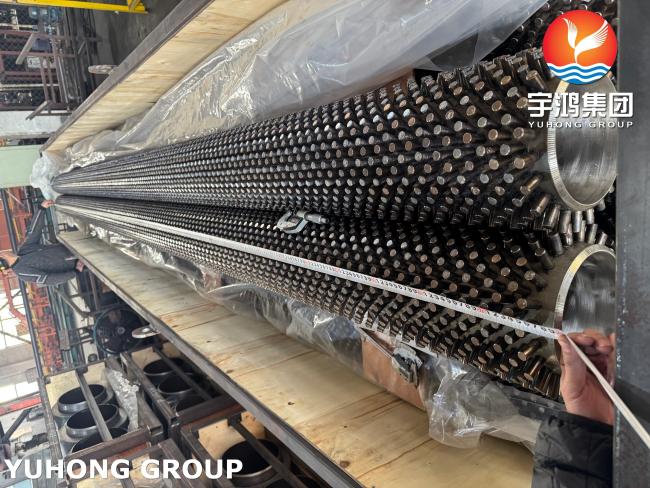

Studded Tubes (P9 base) also called pin-finned tubes, with cylindrical studs welded in square/hexagonal arrays via ERW (electric resistance welding).ASTM A335 P9 Alloy Steel Studded Tubes & Finned Tubes are high-performance heat-exchange components specifically designed for high-temperature, high-pressure furnaces in power plants. And they combine the exceptional material properties of P9 steel with improve heat transfer surfaces to meet the extreme demands of boiler and HRSG (Heat Recovery Steam Generator) systems.
Detailes of ASTM A335 Base Pipes ( Wall thickness generally is Min. )
Chemical Composition (%)
| Grade | C | Mn | P | S | Si | Cr | Mo |
| P9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.00-10.00 | 0.90-1.10 |
Mechanical Properties
| Grade | Tensile Strength,min | Yield Strength (0.2%Offset,min) |
| P9 | 60ksi (415 MPa) | 30ksi (205 MPa) |
ASTM A335 P9 ,also known as 9Cr-1Mo,Iit is a ferritic chromium-molybdenum alloy steel seamless pipe, optimized for elevated-temperature service. P9 pipes have high-temperature strength,excellent creep resistance and mechanical stability up to 600°C (1112°F).And about oxidation & sulfidation resistance: , have high chromium content provides superior resistance to scaling and corrosion in flue gas/steam environments.
Application
Air Preheaters: Heat combustion air to improve furnace efficiency.
Economizers: Preheat boiler feedwater using low-temperature flue gas.
Boiler Superheaters & Reheaters: Heat steam from high-temperature flue gas.
Heat Recovery Steam Generators (HRSG): Recover exhaust heat from gas turbines in combined-cycle plants.
Specifications For Various Types Of Finned Tubes
| Type | Description | Base tube | Fin specification (mm) | ||
| O.D. (mm) | Fin pitch | Fin height | Fin thick | ||
| Embedded | G-type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| Extruded | Single metal / Combined metal | 8-51 | 1.6~10 | <17 | 0.2-0.4 |
| Low fin tube / T-type fin tube | 10-38 | 0.6~2 | <1.6 | ~0.3 | |
| Bamboo tube / corrugated tube | 16-51 | 8.0~30 | <2.5 | ~0.3 | |
| Wound | L / KL / LL type fin tube | 16-63 | 2.1~5 | <17 | ~0.4 |
| String | String fin tube | 25-38 | 2.1-3.5 | <20 | 0.2-0.5 |
| U-type | U-type fin tube | 16-38 | / | / | / |
| Welding | HF-welding fin tube | 16-219 | 3~25 | 5~30 | 0.8-3 |
| H/HH type fin tube | 25-63 | 8~30 | <200 | 1.5-3.5 | |
| Studed fin tube | 25-219 | 8~30 | 5~35 | φ5-20 | |
