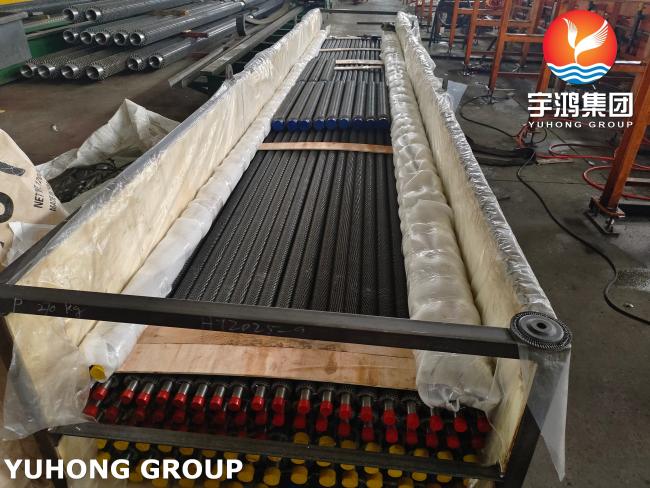

ASTM A210 A1 Serrated Finned Tubes Carbon Steel For High Stage Evaporator

ASTM A210 A1 Serrated Finned Tubes Carbon Steel For High Stage Evaporator

Chemical Composition (%)

Mechanical Properties

ASTM A210 specification covers min. wall thickness seamless medium carbon steel boiler and superheater tubes.Because it surpasses many carbon steels in terms of high-temperature strength, pressure resistance, heat transfer, machinability, and cost, it is widely used in high-pressure evaporators (e.g., power plants, seawater desalination plants, and process heat recovery units).

ASTM A210 A1 Benefits For High Stage Evaporator

Why Use A210 A1 Serrated Finned Tubes On High Stage Evaporator

Using ASTM A210 A1 carbon steel serrated finned tubes for high‑stage evaporators because they deliver the best balance of high‑temperature strength, superior heat transfer, robust fin‑to‑tube bonding, anti‑fouling performance, and low cost—perfect for the typical 300–480°C / 10–18 MPa service conditions.

High‑stage evaporators demand tubes that handle high pressure, high temperature, and thermal cycling while maintaining good thermal conductivity.ASTM A210 A1 is a ideal choice.

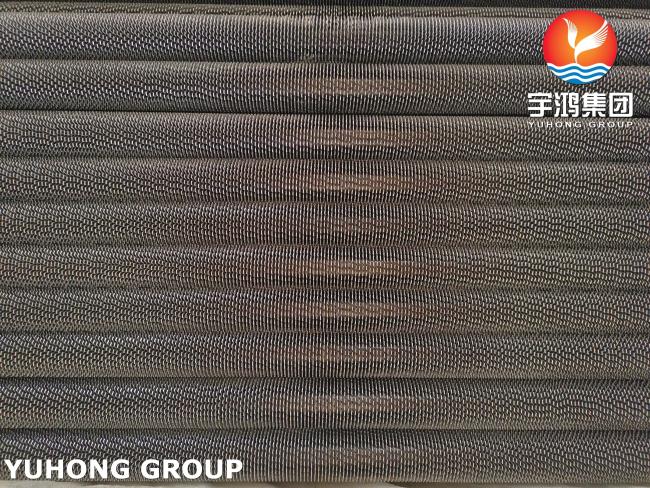

By the way, serrations can break the fluid boundary layer and induce strong turbulence.Much higher convection coefficients than smooth fins.Serrated edges maximize surface area without excessive pressure drop. And high‑frequency welding creates a metallurgical bond (not just mechanical contact). The excellent thermal contact conductance; fins won’t detach under thermal cycling or pressure transients.Can withstands high flue gas/steam velocities and cleaning (steam lancing, water washing).

Some Important Applications

*Power Plant Boilers

*Air Heaters and Process Gas Heaters

*Heat Recovery Steam Generators (HRSGs) and Waste Heat Boilers
