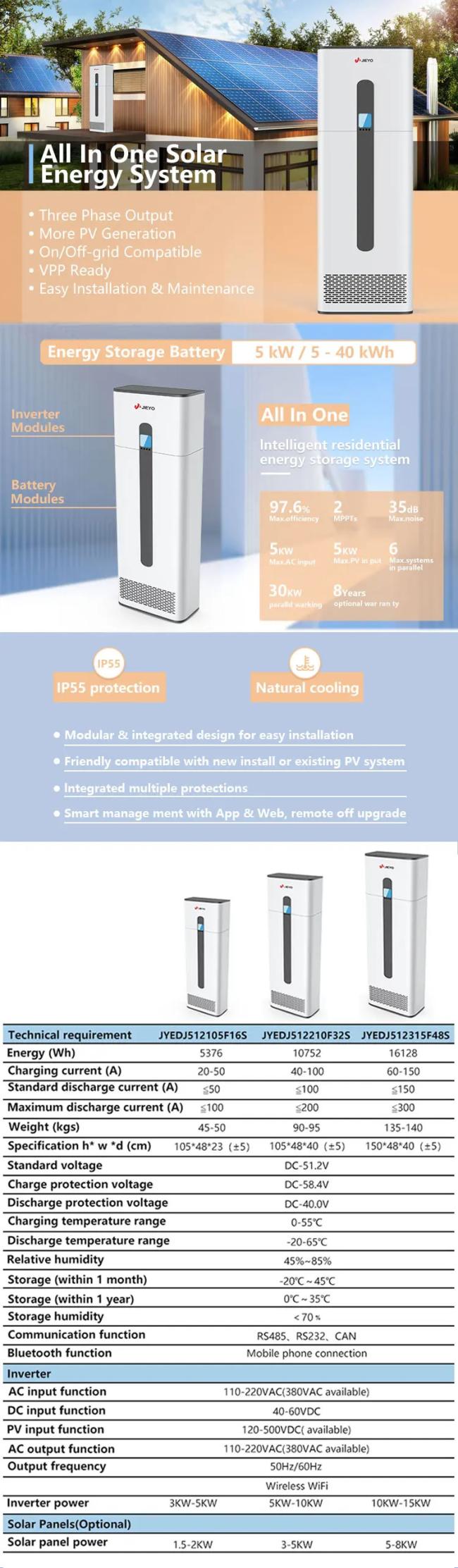

5KWH All in One Home Energy Storage System

Battery Performace

• 1. Energy (Wh) : 5376
• 2. Standard voltage: DC-51.2V
• 3. Charge protection voltage: DC-58.4V
• 4. Discharge protection voltage: DC-40.0V
• 5. Charging temperature range: 0-55℃
• 6. Discharge temperature range: -20-65℃
• 7. Relative humidity: 45%~85%
• 8. Storage (within 1 month) : -20℃～45℃
• 9. Storage (within 1 year) : 0℃～35℃
• 10. Storage humidity: ＜70﹪
• 11. Charging current (A) : 20-50
• 12. Standard discharge current (A) : ≦50
• 13. Maximum discharge current (A) : ≦100
• 14. Weight (kgs) : 40-45
• 15. Specification high * width *depth (mm): 1050*480*230(±5)
• 16. Communication function: RS485,RS232,CAN
• 17. Bluetooth function Mobile phone connection

Inverter

• 1. AC input function: 110-220VAC(380VAC available)
• 2. DC input function: 40-60VDC
• 3. PV input function: 120-500VDC( available)
• 4. AC output function: 110-220VAC(380VAC available)
• 5. Output frequency: 50Hz/60Hz
