Diamond Pattern White PVC Conveyor Belting 3mm Thick Food Grade Anti Slip
Diamond Pattern white PVC Conveyor Belt with Food Grade
Food Industry Conveyor Belts
Professional and Efficient Food Processing Solutions
- Baked Goods: Biscuits, bread, etc. Choose PU belts (glossy or matte finish) depending on the equipment.
- Meat Processing: Processing of poultry, livestock, and seafood.
- Puffed Foods: Potato chips, etc. Primarily PU belts and mesh belts.
- Fruit and Vegetable Conveying and Cleaning: Currently, PVC belts (blue/white) and mesh belts are primarily used. For example, for fruit lifting, use a PU belt+T100/T120 baffled lifting belt, and mesh belts for fruit cleaning. Vegetable Deep Processing: PU belts, primarily blue. Depending on the processing technology, either standard PU belts or easy-clean belts are recommended.
- Frozen Foods: Dumplings, glutinous rice balls, etc. Use plastic mesh belts for tunnel cooling. For conveying, standard PU belts or meat-cutting belts may be recommended, depending on the production equipment. Low-temperature easy-clean belts may be recommended near tunnel exits.
- Chocolate Confectionery: Primarily PU belts, 0.8mm-1.5mm, primarily smooth finish.
- Grain Conveyance
- Primarily PU belts
- Compliance with EU/FDA standards
- Oil, weak acid, and weak alkali resistance
- Mildew and antibacterial
- High and low temperature resistance
- No burrs
- Available colors: white, sky blue, and dark blue (mildew and antibacterial)
Jarulan PU and PVC conveyor belts have been approved by certification of EC 1935/2004, EC 2023/2006, EU 10/2011 and FDA food grade.
We are experienced in producing different quality levels of products. Not like other companies are just provided products with prices, we are good at offering conveyor belt solutions, development and customization.
Belt data | 881035
Fabric layer(s) 2 | EM | 05
Topside Flexible PVC diamond patern | white | 0.5 mm | 0.020 | inch | 80A Shore hardness
Bottomside fabric
Thickness approx. 3 | mm | 0.118 | inch
Weight approx. 3.6 | kg/m² | 0.737 | lb/ft²
Standard width 2000 | mm | 78.7 | inch
Maximum width 3000 | mm | 118.1 | inch
Belt characteristics
Force at 1% elongation 10 | N/mm | 56.0 | lbs/ins
Laterally stable
Noise level (not applicable)
Ambient temperature -10 - 80 °C | 14 -176°F
Max. temperature short -15-100 °C | 5-212 °F
We are available for all series conveyor belts for food industry. Please find below some PVC types and PU types for your reference:
| Code | Thickness (mm) | Material | Surface | Bottom | Color | Plies | 1% Extension stress (N/mm) | Weight (kg/㎡) | Min. roller diameter (mm) | Temperature range (℃) | Standard Prodiction width (mm) | Special properties |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PU0/8SF1W | 0.80 | PU | smooth | fabric | white | 1 | 5 | 0.8 | 16 | -10~+100 | 2000/3000 | Blue color available |
| PU0/8MF1W | 0.80 | PU | matt | fabric | white | 1 | 5 | 0.8 | 16 | -10~+100 | 2000/3000 | Blue color available |
| PVC1SF1W-FDA | 1.00 | PVC | smooth | fabric | white | 1 | 6 | 1.2 | 15 | -10~+80 | 2000/3000 | FDA |
| PU1/2SF1W | 1.20 | PU | smooth | fabric | white | 1 | 5 | 1.4 | 40 | -20~+80 | 2000/3000 | Matt or blue color surface available |
| PU1/25SF2W | 1.25 | PU | smooth | fabric | white | 2 | 10 | 1.4 | 20 | -20~+100 | 2000/3000 | Matt or blue color surface available |
| PU1/5SF2W | 1.50 | PU | smooth | fabric | white | 2 | 10 | 1.7 | 40 | -20~+100 | 2000/3000 | Matt or blue color surface available |
| PU1/8SF2W | 1.80 | PU | smooth | fabric | white | 2 | 6 | 1.9 | 35 | -20~+90 | 2000/3000 | Matt or blue color surface available |
| PVC1/8FF2W | 1.80 | PVC | fabric | fabric | white | 2 | 8 | 1.7 | 40 | -15~+80 | 2000/3000 | FDA |
| PU1/8MDF2W | 1.80 | PU | mini diamond | fabric | white | 2 | 8 | 1.8 | 60 | -20~+80 | 2000/3000 | |
| PU2SF2W | 2.00 | PU | smooth | fabric | white | 2 | 12 | 2.1 | 30 | -20~+80 | 极2000/3000 | |
| PVC2SF2BE-FDA | 2.00 | PVC | smooth | fabric | blue | 2 | 10 | 2.3 | 30 | -10~+80 | 2000/3000 | Matt or blue color surface available |
| PU2MF2BE | 2.00 | PU | matt | fabric | bule | 2 | 10 | 2.1 | 25 | -20~+80 | 2000/3000 | |
| PVC3SF2BE-FDA | 3.00 | PVC | smooth | fabric | blue | 2 | 8 | 3.5 | 50 | -10~+80 | 2000/3000 | FDA |
| PU3SF2W | 3.00 | PU | smooth | fabric | white | 2 | 18 | 3.8 | 60 | -20~+80 | 2000/3000 | Matt surface availlable |
| PU3SF2T | 3.00 | PU | smooth | fabric | transparent | 2 | 18 | 3.8 | 60 | -20~+80 | 2000/3000 | |
| PU4SF2W | 4.00 | PU | smooth | fabric | white | 2 | 10 | 4.5 | 100 | -20~+80 | 2000/3000 |

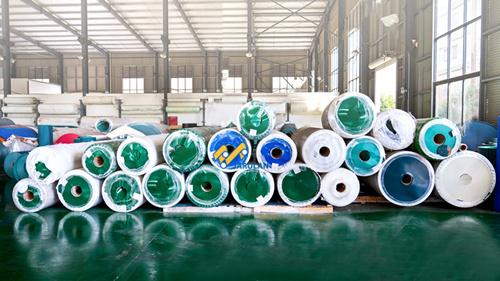

We are one of the biggest conveyor belt and timing belt manufacturers in China. We have at least 10-year production experiences and over 20-year industrial experiences accumulation in ceramics, stone, food and logistics industry market.
