Frayless Knife Edge PU Belt Matt Top Conveyor Belt Food Industry

Name: Frayless Knife Edge PU Belt Matt Top Conveyor Belt Food Industry
Brand: Jiangxi Jarulan Industrial Belt Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 square meter

Delivery Time: within 15-20 days

Brand: JARULAN

Product Description

Frayless Knife Edge PU Belt Matt Top Conveyor Belt Food Industry

Description

The knife edge PU conveyor belt finally passes over a very small-diameter pulley (the "knife-edge" pulley), which forces it to bend backwards sharply.

It is particularly widely used in industries like food, pharmaceuticals, and electronics assembly.

Its thin thickness and flexibility make the smooth transfer from one conveyor to another conveyor. Normally the pulley diameter for the knife edge PU belt to run on will be less than 10mm.

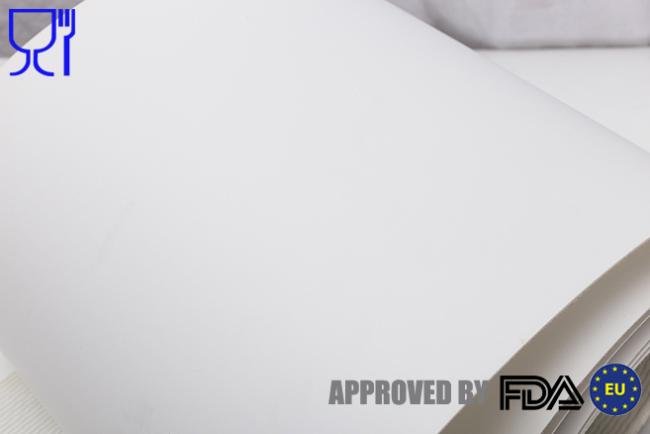

JARULAN food industrial conveyor belt is manufactured with international food grade standard. Approved by FDA and EU certificate, it has great performance in terms of oil resistance, wear resistance and cutting resistance. Now it is widely used in biscuit, candy, vegetables processing, meat processing, puffed food and other food industries.

TECHNICAL DATA OF RECOMMENDATION FOR KNIFE EDGE CONVEYING

Thickness (mm)	Material	Surface	Bottom	Color	Plies	Force at 1% Elongation (N/mm)	Weight (kg/㎡)	Min. roller diameter (mm)	Temperature range (℃)	Standard Production width (mm)
0.80	PU	smooth	fabric	white	1	4	0.9	6	-20~+90	2000/3000
0.80	PU	matt	fabric	white	1	4	0.9	6	-20~+90	2000/3000
0.80	PU	smooth	fabric	sky blue	1	4	0.9	6	-20~+90	2000/3000
0.80	PU	matt	fabric	sky blue	1	4	0.9	6	-20~+90	2000/3000
0.80	PU	matt	fabric	dark green	1	4	0.9	6	-20~+90	2000/3000
0.80	PU	smooth	fabric	dark green	1	4	0.9	6	-20~+90	2000/3000
1.10	PU	round dot	fabric	white	1	4	1.0	8	-20~+90	2000/3000
1.10	PU	round dot	fabric	sky blue	1	4	1.0	8	-20~+90	2000/3000
1.20	PU	smooth	fabric	white	1	4	1.4	8	-20~+90	2000/3000
1.20	PU	matt	fabric	white	1	4	1.4	8	-20~+90	2000/3000
1.20	PU	smooth	fabric	sky blue	1	4	1.4	8	-20~+90	2000/3000
1.20	PU	matt	fabric	sky blue	1	4	1.4	8	-20~+90	2000/3000
1.25	PU	smooth	fabric	white	2	6	1.4	10	-20~+90	2000/3000
1.25	PU	matt	fabric	white	2	6	1.4	10	-20~+90	2000/3000
1.25	PU	smooth	fabric	sky blue	2	6	1.4	10	-20~+90	2000/3000
1.25	PU	matt	fabric	sky blue	2	6	1.4	10	-20~+90	2000/3000
1.30	PU	fabric	fabric	transparent	2	6	1.4	10	-10~+80	2000/3000
1.30	PU	matt	fabric	white	2	5	1.5	10	-20~+90	2000/3000

OTHER TYPES OF PU CONVEYOR BELTS FOR FOOD INDUSTRY:

Code	Thickness (mm)	Material	Surface	Bottom	Color	Plies	Force at 1% Elongation (N/mm)	Weight (kg/㎡)	Min. roller diameter (mm)	Temperature range (℃)	Standard Production width (mm)
PU1/5SF2W	1.50	PU	smooth	fabric	white	2	6	1.8	20	-20~+90	2000/3000
PU1/5MF2W	1.50	PU	matt	fabric	white	2	6	1.8	20	-20~+90	2000/3000
PU1/5SF2SB	1.50	PU	smooth	fabric	sky blue	2	6	1.8	20	-20~+90	2000/3000
PU1/5MF2SB	1.50	PU	matt	fabric	sky blue	2	6	1.8	20	-20~+90	2000/3000
PU1/5MF2DG	1.50	PU	matt	fabric	dark green	2	6	1.8	20	-20~+90	2000/3000
PU1/5SF2DG	1.50	PU	smooth	fabric	dark green	2	6	1.8	20	-20~+90	2000/3000
PU1/5FF2W	1.50	PU	fabric	fabric	white	2	6	1.8	15	-10~+80	2000/3000
PU1/8SF2W	1.80	PU	smooth	fabric	white	2	6	2.1	30	-20~+90	2000/3000
PU1/8MF2W	1.80	PU	matt	fabric	white	2	6	2.1	30	-20~+90	2000/3000
PU1/8SF2BE	1.80	PU	smooth	fabric	blue	2	6	2.1	30	-20~+90	2000/3000
PU1/8MF2BE	1.80	PU	matt	fabric	blue	2	6	2.1	30	-20~+90	2000/3000
PU2SF2W	2.00	PU	smooth	fabric	white	2	12	2.1	30	-20~+80	2000/3000
PU2MF2W	2.00	PU	matt	fabric	white	2	10	2.1	25	-20~+80	2000/3000
PU2SF2SB	2.00	PU	smooth	fabric	sky blue	2	12	2.1	30	-20~+80	2000/3000
PU2MF2SB	2.00	PU	matt	fabric	sky blue	2	10	2.1	25	-20~+80	2000/3000
PU3SF2W	3.00	PU	smooth	fabric	white	2	15	3.8	60	-20~+80	2000/3000
PU2MF2W	3.00	PU	matt	fabric	white	2	15	3.8	50	-20~+80	2000/3000
PU3SF2T	3.00	PU	smooth	fabric	transparent	2	15	3.8	60	-20	2000/3000
PU3SF2DG	3.00	PU	smooth	fabric	deep green	2	15	3.6	100	-20~+90	2000/3000
PU3SF3DG	3.00	PU	smooth	fabric	dark green	3	15	3.6	100	-20~+90	2000/3000
PU3SF2BK	3.00	PU	smooth	fabric	black	2	15	3.8	60	-20~+80	2000/3000
PU3/5MGF3DG	3.50	PU	mini grip	fabric	dark green	3	15	3.6	100	-20~+90	2000/3000
PU4SF2DG	4.00	PU	smooth	fabric	deep green	2	10	4.5	100	-20~+80	2000/3000
PU4SF2W	4.00	PU	smooth	fabric	white	2	10	4.5	100	-20~+80	2000/3000
PU4SF2BK	4.00	PU	smooth	fabric	black	2	10	4.5	100	-20~+80	2000/3000
PU1/8MDF2DG	1.80	PU	mini diamond	fabric	deep green	2	8	1.8	60	-20~+80	2000/3000
PU1/8MDF2W	1.80	PU	mini diamond	fabric	white	2	8	1.8	60	-20~+80	2000/3000
PU1/8MDF2BK	1.80	PU	mini diamond	fabric	black	2	8	1.8	60	-20~+80	2000/3000
F3FF2W	3.00	FELT	felt	fabric	white	1	5	1.9	50	-20~+90	2000
F3/3FF2W	3.30	FELT	felt	fabric	white	2	10	2.7	50	-20~+90	2000

PRODUCT ADVANTAGES FOR PU BELTS

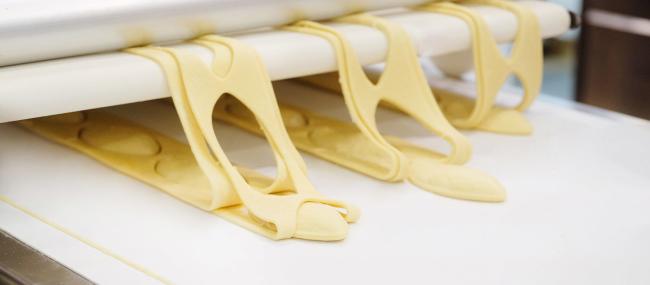

Biscuit, bakery Industry PU conveyor belt: excellent winding performance; suitable for small pulley and cutter.
Blue conveyor belt: using Ag + international anti-bacterial technology; effectively reduce the bacterial contamination of the food, especially suitable for meat and other bacteria production environment.
Candy, vegetable processing, meat processing conveyor belt: anti-adhesive treatment; good at anti-stick performance; international standards of cutting resistance and temperature performance, ensure longer servicing life of JARULAN PU conveyor belt.
