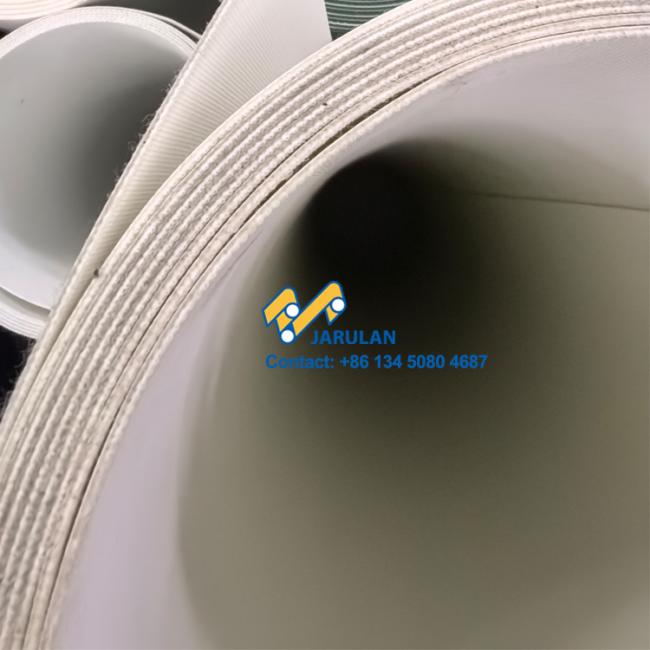

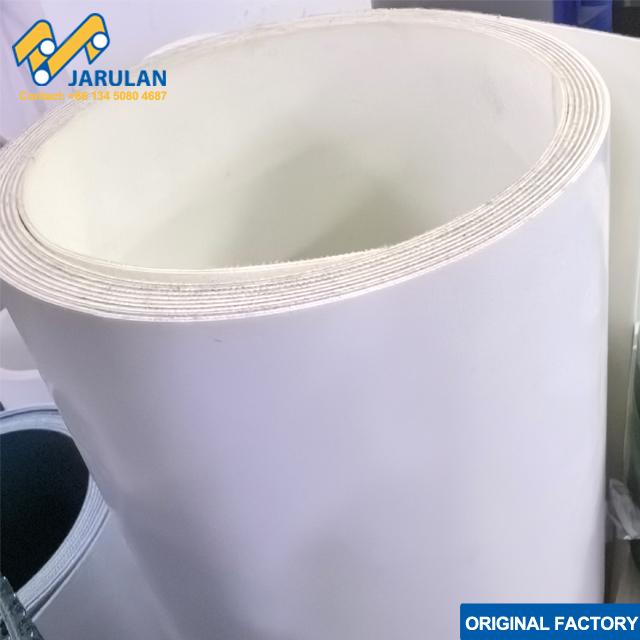

High Temperature Resistant Silicone Conveyor Belt Heat Resistant Anti Sticking
Characteristics
Good oil & fat/grease resistance
Good resistance to solvents.
High Temperature resistance
Anti-sticking, Super-Adhesive surface, Easy release
Specification
|
Product Name |
Silicone conveyor belt |
|
Structure |
2 fabric+ 1 silicone+1 PU |
|
Top Feature |
Silicone material |
|
Middle Feature |
PU material |
|
Bottom Fabric Feature |
laterally stiff + Polyester Fabric |
|
Material |
silicone+PU |
|
Width |
2000mm |
|
Total Thickness |
1.4-1.6mm |
|
Length |
100m/roll |
|
Color |
White/transparent |
|
Surface |
Smooth/matt/fabric embossed |
|
Hardness |
35 shore A |
|
Tensile Force of 1% Elongation |
8N/mm |
|
Maximum Tensile Force |
16N/mm |
|
Temperature (℃) |
-20/+200 |
|
Minimum Pulley Diameter A |
40mm |
|
Minimum Back Pulley Diameter B |
60mm |
|
Bottom Friction Coefficient (compare to steel) |
0.2 |
|
Standard Width |
2000mm |
|
Bearing Way |
Flat plate/ roller |
|
Certificate |
FDA/EC |
Pure Silicone belt or Silicone belt with PU in the middle are available. We could produce according to your need.
Different fabric layer strutures like 1ply or 2 ply are also workable to arrange for the production.
JARULAN Silicone conveyor belts are based on food-grade quality, with a stable molecular structure that complies with FDA international safety standards.
In food baking production lines, silicone material does not release harmful substances in a 180°C high-temperature baking environment, and there is no odor residue when it comes into direct contact with bread, biscuits, etc.; in medical supplies assembly workshops, the non-toxic properties of silicone prevent equipment contamination.
High temperature resistance is the core advantage of silicone conveyor belts. Its operating temperature range can reach -60°C to 200°C. In the high-temperature steam environment of food cooking and sterilization processes, or in the hot-melt packaging of daily chemical products, the belt body does not soften or deform.
