PVC Top Diamond Bottom Smooth Conveyor PVC Belt Green Color Double Side
Price:
Negotiable
MOQ:
1 square meter
Delivery Time:
within 15-20 days
Product Description

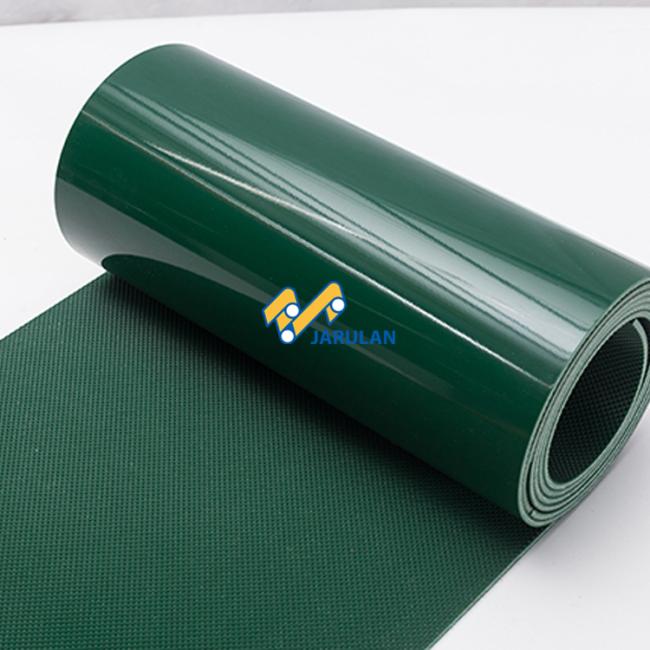

Double-side PVC Top Diamond Bottom Smooth PVC Conveyor Belts Green Color
Description
The surface is diamond and the bottom is smooth,
The thickness is available for 3mm, 4mm and 5mm, etc.
The color is green. Other colors like white, blue, black are workable to produce according to your need.
If your demand is large, it can also be customized according to your special requirement.
Technical Data Sheet
| Belt data | ||||
| Color | green | |||
| Tension Member | Polyester Fabric | |||
| Fabric layer(s) | 2 | EM | ||
| Total Thickness | 3 | mm | 0.118 | inch |
| Weight approx. | 3.6 | kg/m² | 0.737 | lb/ft² |
| Standard width | 2000 | mm | 78.7 | inch |
| Maximum width | 3000 | mm | 118.1 | inch |
| Top side | PVC | 05 | green | |
| Thickness | 0.5 | mm | 0.020 | inch |
| Hardness | 80A | Shore hardness | ||
| Middle side | PVC | green | ||
| Bottom side | Polyester Fabric | |||
| Thickness | H18 | mm | inch | |
| Hardness | Shore hardness | |||
| Belt characteristics | ||||
| Force at 1% elongation | 10 | N/mm | 56.0 | lbs/ins |
| Laterally | stable | |||
| Noise level | (not applicable if blank) | |||
| Ambient temperature | -10 | °C | 14 | °F |
| 80 | 176 | |||
| Max. temperature short | -15 | °C | 5 | °F |
| 100 | 212 | |||
If our green diamond pvc conveyor belts caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
