Food Grade Double Side PVC Fabric Conveyor Belt 1.8mm For Dough Sheeter
Food belt Double-side fabric 1.8mm Conveyor Belt for Dough Sheeter
Description
Product name: double-side fabric PVC conveyor belt
Material: fabric, PVC
Thickness: 1.8mm
Application: food industry, bread factories
Technical Data Sheet
| Belt data | |||
|---|---|---|---|
| Color | white | ||
| Tension Member | Polyester Fabric | ||
| Fabric layer(s) | 2 EM | ||
| Total Thickness | 1.8 mm | 0.071 inch | |
| Weight approx. | 2.1 kg/m² | 0.430 lb/ft² | |
| Standard width | 2000 mm | 78.7 inch | |
| Maximum width | 3000 mm | 118.1 inch | |
| Top side | |||
| Material | FABRIC | white | |
| Thickness | mm | inch | |
| Hardness | Shore hardness | ||
| Middle side | |||
| Material | FABRIC | white | |
| Bottom side | |||
| Material | Polyester Fabric | ||
| Thickness | 0 mm | inch | |
| Hardness | Shore hardness | ||
| Belt characteristics | |||
| Force at 1% elongation | 8 N/mm | 44.8 lbs/ins | |
| Laterally | stable | ||
| Noise level | (not applicable if blank) | ||
| Ambient temperature | -10 °C | 14 °F | |
| 80 °C | 176 °F | ||
| Max. temperature short | -15 °C | 5 °F | |
| 100 °C | 212 °F | ||
Oil resistance and food grade are available. Jarulan is able to produce the PVC Conveyor belt according to your standard.
Jarulan PU and PVC conveyor belts have been approved by certification of EC 1935/2004, EC 2023/2006, EU 10/2011 and FDA food grade. We are experienced in producing different quality levels of products. Not like other companies are just provided products with prices, we are good at offering conveyor belt solutions, development and customization.

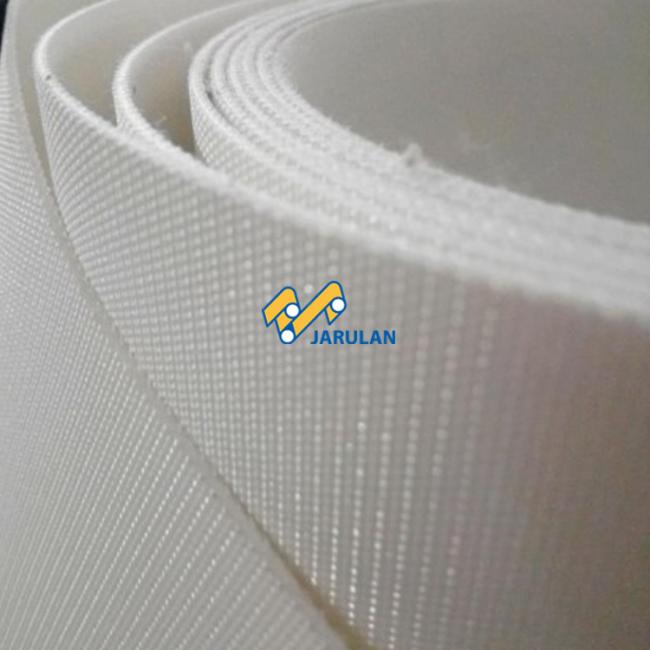

Our double-side fabric 1.8mm thickness PVC conveyor belt is the best choice for dough sheeter application.

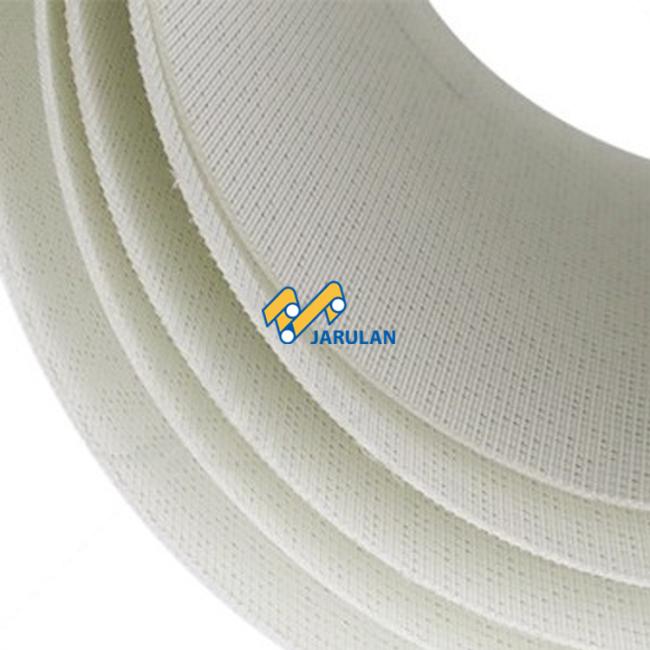

If you have higher food grade requirement for it, we suggest our 1.3mm PU conveyor belt with double-side fabric will meet your need.
Please contact us for further information.
All series of conveyor belts are available from JARULAN.
