Antibacterial PU Sidewall Without Fabric Reinforcement For Food Grade Conveyor Belt

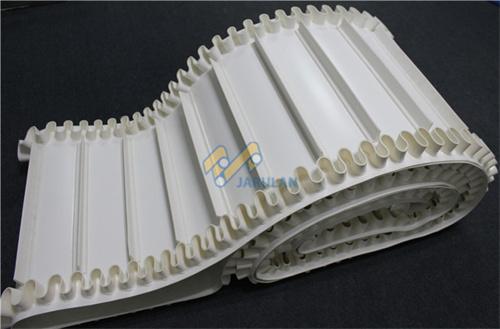

The sidewall of a conveyor belt is a crucial component designed to contain and stabilize the conveyed material, preventing spillage and ensuring efficient transportation. It is typically made of flexible, wear-resistant materials (e.g., rubber or PVC) and attached vertically to the belt's edges.
- Material Containment - Prevents bulk materials (e.g., granules, powders, or uneven loads) from falling off the belt, especially on inclined or declined conveyors.
- Support for Cleats/Buckets - Reinforces the structure when used with cleats or elevators for steep-angle conveying.
- Belt Tracking - Helps guide the belt, reducing misalignment and improving operational stability.
- Enhanced Load Capacity - Allows higher material volume by creating a "trough" effect when paired with a flat or cleated belt.
- Dust/Contaminant Control - Minimizes material leakage, improving cleanliness and safety in industrial environments.
Common applications include mining, agriculture, food processing, and packaging systems where spillage prevention and efficient material handling are critical.
The sidewalls have different characteristics.

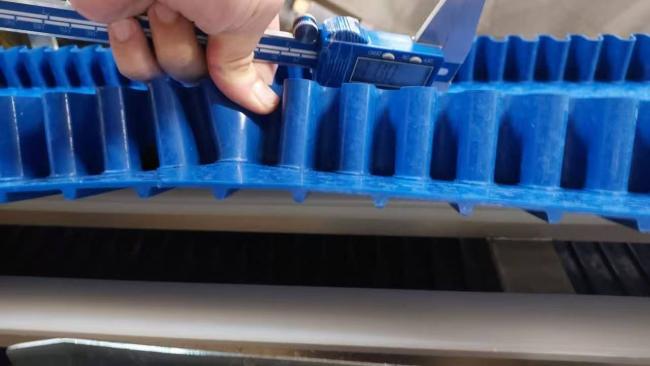

White/blue: non-toxic, antibacterial, FDA food grade,use for food delivery. It could be pure PU without fabric.
Green & Other colors: apply to all which don't need to meet the food grade belts
| Sketch of Skirt rims | Material | Thickness (mm) | Width (mm) | Height (mm) | Color | Temperature (℃) | Min. Turning Diameter (mm) |
|---|---|---|---|---|---|---|---|
| PVC | 3 | 30 | 35 | white/green/blue/black | -10/70 | 80 | |
| 40 | -10/70 | 90 | |||||
| 45 | -10/70 | 90 | |||||
| 50 | -10/70 | 100 | |||||
| 55 | -10/70 | 100 | |||||
| 60 | -10/70 | 110 | |||||
| 65 | -10/70 | 120 | |||||
| 5 | 45 | 35 | white/green/blue/black | -10/70 | 80 | ||
| 40 | -10/70 | 100 | |||||
| 45 | -10/70 | 100 | |||||
| 50 | -10/70 | 120 | |||||
| 55 | -10/70 | 120 | |||||
| 60 | -10/70 | 140 | |||||
| 65 | -10/70 | 140 | |||||
| 70 | -10/70 | 160 | |||||
| 75 | -10/70 | 160 | |||||
| 80 | -10/70 | 180 | |||||
| 85 | -10/70 | 180 | |||||
| 90 | -10/70 | 200 | |||||
| 95 | -10/70 | 220 | |||||
| 100 | -10/70 | 220 | |||||
| PU | 2 | 30 | 35 | white/green/blue/black | -20/+80 | 50 | |
| 40 | -20/+80 | 60 | |||||
| 45 | -20/+80 | 65 | |||||
| 50 | -20/+80 | 75 | |||||
| 55 | -20/+80 | 80 | |||||
| 60 | -20/+80 | 90 | |||||
| 65 | -20/+80 | 95 |
Other specifications can produce according to clients.
