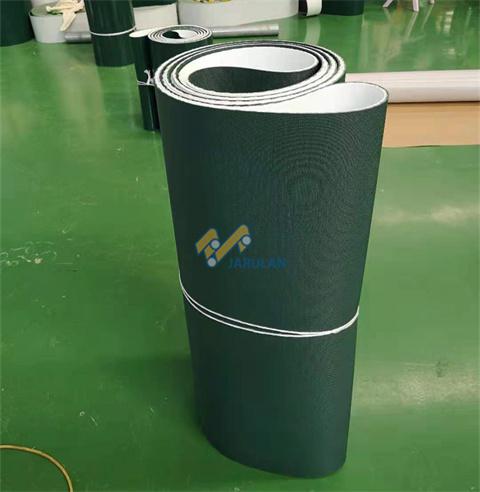

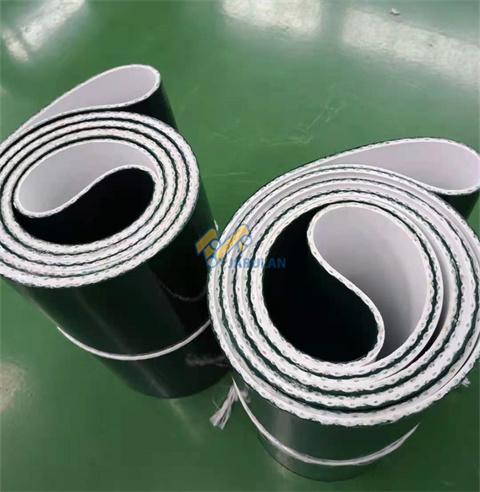

Dark Green PU Conveyor Belt Seamless Wrapping Steel Belt Oil Resistant
Price:
Negotiable
MOQ:
1 square meter
Delivery Time:
within 15-20 days
Product Description
Technical Parameters
Product model: JRL0775H
Fabric structure: seamless polyester woven fabric
Belt thickness: 5mm to 10mm
Belt surface: TPU hardness 85 Shore A/91 Shore A
Middle layer of belt: polyester wire weave
Belt bottom layer: oil-resistant PU coating
Surface friction: iron 0.830 and aluminum 0.672
Peel strength: between fabric layer and TPU>8N/mm
Stretching rebound: GKJ550
- Force at 1% elongation: 18N/mm, recovery rate 99.9% (4min)
- Force at 2% elongation: 45N/mm, recovery rate 99.9% (7min)
- Force at 3% elongation: 70N/mm, recovery rate 99% (9min)
- Force at 5% elongation: 137N/mm, recovery rate 70~75%
Maximum width: 2000mm
Belt performance:
- The material of the tape being assisted: CQ, DQ, DDQ, 50W470-50W800
- The thickness of the assisted strip: 0.05-10mm
- The performance of the assisted strip: σ s≤360N/mm2 σ b≤500N/mm
Ambient temperature: -10°C---+100°C (contact temperature)
Running speed: 400 m/min
Minimum pulley diameter: 500mm
Scope of application:
cold-rolled steel pickling crew, cold sheet mill, temper mill, galvanizing line, Aluminum industry, etc.
Recommended Options
Application indication
Automobile Sheeted metal Steel General handling
In addition, JARULAN can also provide coiling machine belts used in the steel plate industry.
We are available for all kinds of industrial belts. Please feel free to contact us for more details.
