Rhombic Pattern 9mm PVC Line Polishing Conveyor Belt For Ceramics Industry
JARULAN specially designs the Rhombic (snake-skin) surface for polishing conveyor belt, which is best for increasing the absorptive property of polished goods and excretion performance of waste water. The fabric layer has got patent approved, which is specially good at wear resistance, pressing resistance and durability. KEDA, which is one of the famous machine brands in international ceramics industry, has chosen JARULAN polishing conveyor belts as their original machine belts for years. JARULAN can customize a variety of width, length, thickness, hardness of the open ended or closed ended polishing conveyor belt. Jarulan's polishing conveyor belts have gain good reputation for best performaces around the world.
| Product Name | PVC Conveyor Belt for ceramic/marble polishing |
| No. | HPVC9SSF4PG |
| Top cover | PVC |
| fabric | EM |
| Tension/ number of plies | 60/4 (9.0); 45/3 (7.0); |
| Bottom thickness / profile | 00 |
| Top cover thickness / profile | H8 |
| Color | petrol blue |
| Standard width (mm) | 380/900/950/1000/1200/1500/2000/2200/2600/3000 |
| Max. available width (mm) | 3500 |
| Belt thickness mm | 9.0/7.0 |
| Weight kg/m2 | 10.9 (9.0)/ 8.9 (7.0) |
| F/E at 1% | 60 N/mm (9.0); 45N/mm (7.0) |
| Number of plies | 4(9.0)/3(7.0) |
| Material | PVC |
| Top hardness shore | 75A |
| Top cover thickness(mm) | 2.2 |
| Laterally | stable |
| Flexing mm (20ºC) | 250 |
| Back flexing mm (20ºC) | 350 |
| Prolonged minimum °C | -15 |
| Prolonged maximum °C | 80 |
| Short minimum °C | -15 |
| Short maximum °C | 100 |
| Application | polishing machines for Ceramics, marble, tiles, stones |

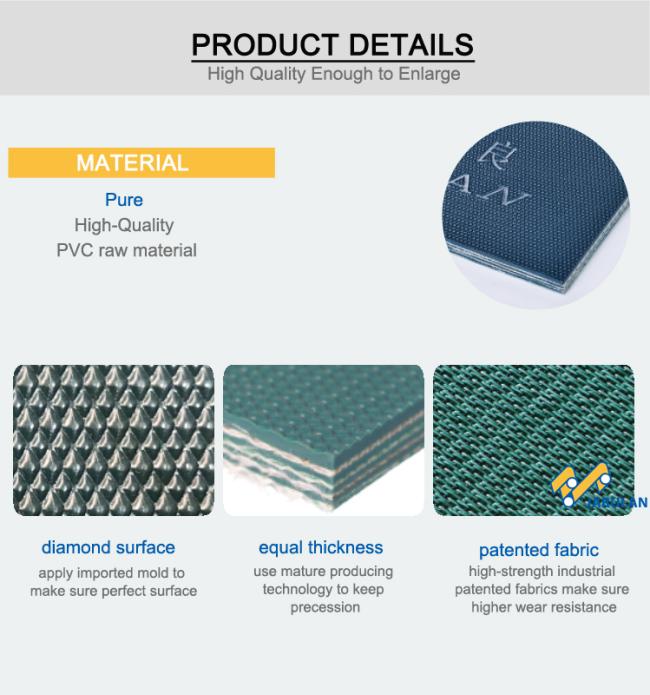

- Diamond pattern (snake-skin) surface design, which can effectively promote the ability of wast water excretion.
- Patented fabric layer design, making JARULAN's polishing conveyor belt is better than others in the durability and wear resistance.
- Imported production equipments, confirming JARULAN's conveyor belts with uniform thickness, moderate hardness.
- Suppliers of big famous machine brands like KEDA, trustworthy.
- Experienced jointing workers; dealers are throughout the China and even the world, to provide timely on-site service.
| ITEM | Thickness (MM) | Material | Surface | Bottom | Color | Plies | Top hardess shore | 1% Extension stress | Weight | Min. roller diameter | Prodiction width |
|---|---|---|---|---|---|---|---|---|---|---|---|
| PVC7SSF3PB-50 | 7.00 | PVC | snake skin | fabric | petrol bule | 3 | 45-50 | 45 | 8.9 | 120 | 1300/1000/950/900/850 |
| PVC7SSF3PB | 7.00 | PVC | smooth | fabric | petrol bule | 3 | 75 | 45 | 8.9 | 120 | 1300/1000/950/900/850 |
| PVC9SSF4PB | 9.00 | PVC | snake skin | fabric | petrol bule | 4 | 75 | 60 | 10.9 | 350 | 1300/1000/950/900/850 |
| PVC9/5SF4BE | 9.50 | PVC | snake skin | fabric | Blue color | 4 | 75 | 60 | 11.5 | 350 | 1300/1000/950/900/850 |
**We can manufacture max. width of 3500mm. Other width dimensions of PVC polishing conveyor belts are avaialble.

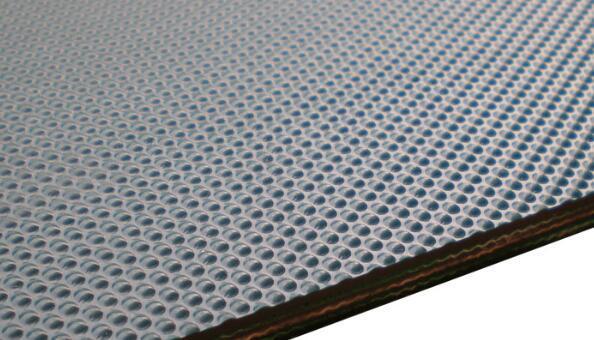

Y pattern and Dot pattern
- Diamond pattern (snake-skin) surface design, can effectively promote the ability of wast water excretion.
- Patented fabric layer design, making JARULAN's polishing conveyor belt is better than others in the durability and wear resistance.
- Imported production equipments, confirming JARULAN's conveyor belts with uniform thickness, moderate hardness.
- Suppliers of big famous machine brands like KEDA, trustworthy.
- Experienced jointing workers; dealers are throughout the China and even the world, to provide timely on-site service.
If our high quality diamond surface 7mm or 9mm pvc polishing conveyor belt for ceramics polishing machine caters to your requirement, welcome to buy the low price and quality belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
If our high quality diamond surface 7mm or 9mm pvc polishing conveyor belt for ceramics polishing machine caters to your requirement, Welcome to buy high quality low price conveyor belt from our factory. As one of the leading China belt manufacturers and suppliers, we must be your best choice.
Founded in 2010, with an area of more than 40,000 square meters, the seat of the Jarulan Industrial belt Co., Ltd. is located in Jiangxi Province, China. Jarulan has 4 advanced imported production lines that can produce conveyor belt rollers with a maximum width of 4 m. Annual Production of conveyor belts is up to 36 million square meters. Depending on the First-Class technical strength and strong manufacturing capacity, Jarulan is able to customize its main products such as PVC, conveyor belt polishing, PVC/PU/PE conveyor belt, transmission belt and high precision Timing belt, according to the special requirements of our customers. Not only in Fujian, Guangdong, Shandong and other provinces of China, but also in Turkey, India, Middle East, South America and some European countries, Jarulan has built its full sale and service network, with the cooperation of traffickers to provide Customers with timely door to door service.
In Addition to the large input of advanced equipment, such as hard power support, Jarulan also spares no effort to develop its soft power. Since Now, Jarulan has owned more than 30 senior technicians, including 4 senior R& D Engineers, 5 Senior product Development engineers and many technical joint workers who have at least 5 years of joint experiences. In addition, Jarulan has created a 24-hour service sales team to provide professional services to domestic and foreign customers.
With Strong technical strength, advanced production equipment of international standard and talented sales team, Jarulan has gained high degree of recognition from industry worldwide.
