One Stage Reverse Osmosis Pure Water Equipment With 8T/Hour Capacity
Price:
US$23000~US$23900
MOQ:
1Set
Delivery Time:
7-10work days
Brand:
Hongjie
Product Description
8T/H one-stage reverse osmosis pure water equipment

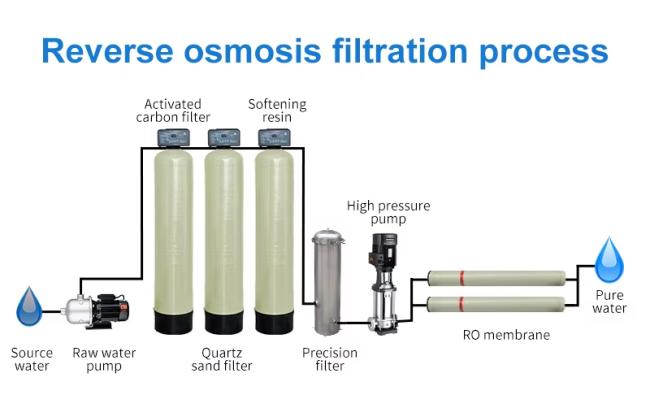

Reverse Osmosis System
Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.
RO Membrane is mainly used in different small systems, such as domestic water Hospital and laboratory cleaning and other cleaning water equipment. Achieve the same high flux as conventional low pass and salt.
Water production requirements
1. The inlet water quality is urban tap water or water source of equivalent water quality.
2. Water production technical indicators:
(1) Water production flow rate: 10 tons/hour (water temperature 25℃) first-stage reverse osmosis output and second-stage reverse osmosis output
(2) Water production standard: in line with the national standard A for reverse osmosis equipment (GB/T 19249-2003)
(3) Water quality standard: in line with the national "2010 National Pharmacopoeia Water Quality Standard" (Pharmaceutical GB-2010)
(4) Resistivity ≥ 0.5 megohm/cm, (biological agents ≥ 10 megohm/cm), that is, conductivity 2-5us/cm
Key Fetures:
| Product name | Reverse Osmosis Water Treatment System | Capacity | 1000-30000L/H |
| Type | Pure Water Treatment System | Usage | Pure Water Process |
| RO membrane | DOW Membrane USA Original Vontron | Core components | Pressure vessel, Pump, PLC |
| Water inlet diameter | 80 | Salt rejection rate | 99.2% |
| Raw water pH | 5-8 | Filter Media | Sand+carbon+RO |
| Work Pressure | 0.6-1.5(psi) | Keywords | Water Filter System large Industry |
| Function | Water Purification Plant | Voltage | 220V, 380V, 110V |
| Weight (kg) | 1000kg | Warranty period | 1year |
