20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing

Name: 20M3/H Integrated RO EDI Ultra Purified Water System For Biopharmaceutical Manufacturing
Brand: Shenzhen HongJie Water Technology Co., Ltd.

Price Negotiable

Price: US$44000~US$44500

MOQ: >=1sets

Delivery Time: 1-7working days(depand on raw materials stocking)

Brand: HongJie

Product Description

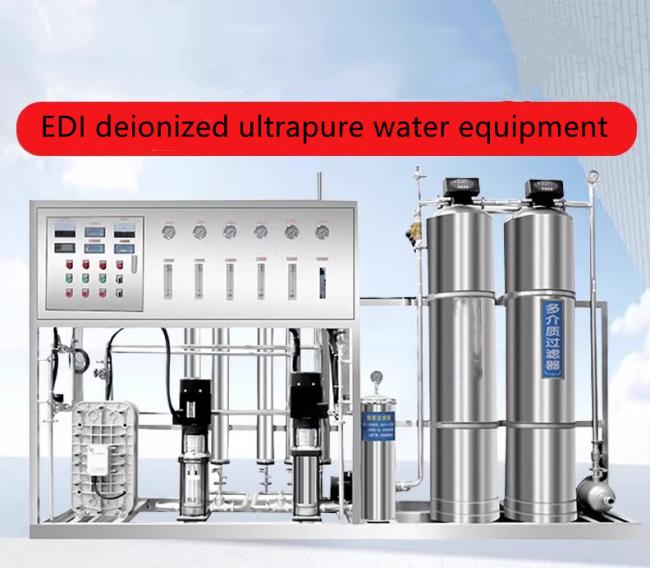

20 M³/H Integrated Reverse Osmosis-EDI ultra pure water Equipment for Biopharmaceutical Manufacturing

I. Equipment Overview

Water for biopharmaceutical production demands even stricter water quality requirements. To ensure the safety of water used in biopharmaceutical manufacturing, the entire system is constructed using all-stainless steel materials, and the final water delivery point is equipped with a sterilization device. The cleaning of production equipment and facilities consumes significant volumes of process water.

II. Process and Specifications of HJ-UPWPh20T

Raw Water → Raw Water Pressure Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary RO → pH Adjustment → Intermediate Water Tank → Secondary RO → Intermediate Water Tank → Intermediate Water Pump → EDI System → Purified Water Tank → Pure Water Pump → UV Sterilizer → Microporous Filter →Pasteurization → Water Point

III.Specifications

Item			Specification
Electricity Supply			380V
Produced Water Quality			Resistivity ≥15-18.25 MΩ·cm
Core Technology			Double-pass Reverse Osmosis + EDI + Polishing Resin
Key Components			RO Membrane Modules, EDI Units
Operation Mode			Full Automatic (PLC-controlled)
Product Features			Stable Water Quality,Low Operation Cost,Reliable Performance

After-Sales Service			2-Year Warranty For Standard Equipment

IV. Design Highlights

The system employs fully automatic control (with manual override capability). During operation, automatic backwash and regeneration programs can be configured.
All unit wiring is pre-completed at the factory, reducing installation and commissioning time.
Both primary and secondary Reverse Osmosis (RO) systems are equipped with recirculation pipelines. The RO unit includes chemical cleaning and sterilization/disinfection devices.
Piping utilizes 304/316L stainless steel materials with both sanitary and non-sanitary grade designs available.
The entire ultra-pure water treatment system is constructed of stainless steel, featuring smooth, flat, crevice-free surfaces for easy cleaning/sterilization, with corrosion resistance to prevent rust.
Directly produces sterile ultra-pure water from tap water, fully replacing distilled water and double-distilled water.
Automated welding of stainless steel pipes with borescope inspection.
Purified water storage tanks incorporate vent filters. Distribution piping is equipped with UV sterilizers and microporous filters to ensure water meets sanitary requirements.
Integrated control and instrumentation systems enable convenient operation and management.
Features online monitoring with timed printing and water quality alarm functions for abnormal parameters, safeguarding your production water supply.

V.Here is a guideline for you to get a proper quotation

Tell us the raw water/source of water(tap water, well water, or sea water, etc)
Provide water analysis report(TDS , conductivity, or resistivity, etc)
Required production capacity( 5m³/H, 50m³/H,or 500m³/H, etc)
What's the pure water used for( industrial,Food and Beverage,or agriculture, etc )
