500LPH Stainless Steel RO Water Purification System For Industrial Water Treatment Solutions
500LPH Industrial Stainless Steel RO Water Treatment System with High Purity Filtration
I. Machine Overview

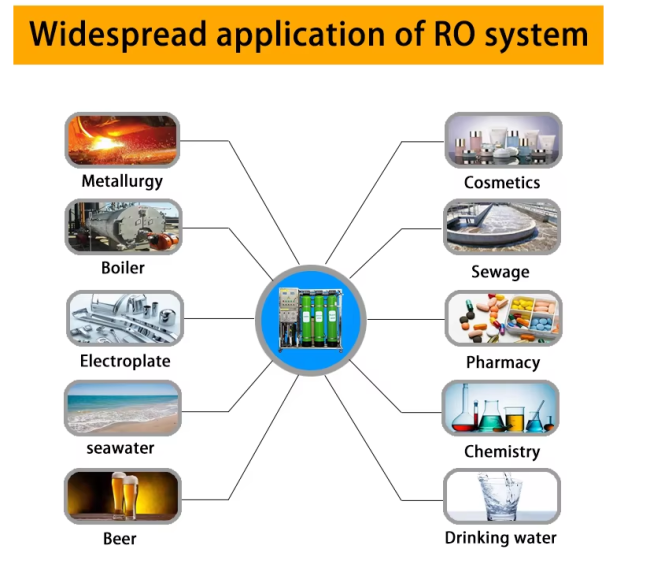

The Pure Water Equipment utilizes a reverse osmosis (RO) system, designed for industries such as beverages, winemaking, dairy, fermentation, and food processing. These applications often require pretreated or purified water, with conductivity typically below 10 µS/cm.
Hongjie Water's system ensures optimal water quality by incorporating a liquid level control system in the water tank, pressure protection for the pump, online water quality monitoring, and a PLC-based programmable control system. These features allow for unattended operation, ensuring high reliability and cost-effectiveness. Additionally, material selection is based on both industry recommendations and customer specifications, offering superior performance compared to similar products.
II. Process Flow
1.Basic System Configuration:
Raw Water → Raw Water Booster Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Precision Filter → Primary Reverse Osmosis → Pure Water Tank → Ultraviolet Sterilizer → Water Point
2.Advanced System Configuration:
Raw Water → Raw Water Booster Pump → Multi-Media Filter → Activated Carbon Filter → Water Softener → Precision Filter → Stage Reverse Osmosis → pH Regulation → Intermediate Water Tank → Stage Reverse Osmosis → Purified Water Tank → Pure Water Pump → Ultraviolet Sterilizer → Microporous Filter → Water Point
III.Parameters
| Item | Specification |
|---|---|
| Operating Pressure | 0.8 ~ 1.2 MPa |
| pH Range | 5.5 ~ 8.5 |
| Applicable Temperature | 5 ~ 40°C |
| Feed Water TDS | ≤ 2000 PPM |
| Desalination Rate | ≥ 97% |
| Recovery Rate | ≥ 50% |
| Organic Matter Removal Rate | ≥ 99% |
| Bacterial Removal Rate | ≥ 99.9% |

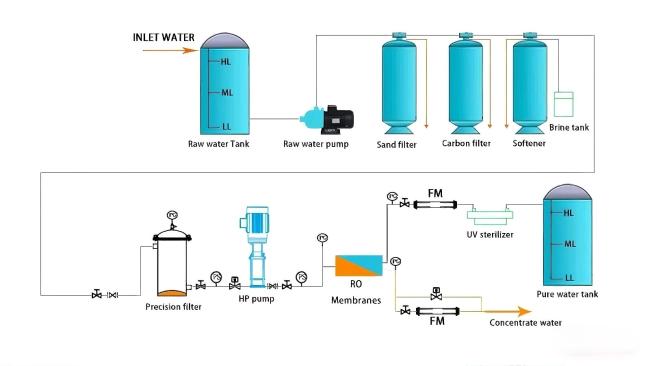

IV.RO reverse osmosis system process flow
FAQ
Q: Why did I choose your product?
A: We have advanced technology, can provide lower prices, better product quality, higher performance, lower maintenance costs, and perfect after-sales service.
Q: How long does it usually take for your products to ship?
A: Generally, the delivery time is 1-7working days(depending on raw materials stocking).
Q: Do you offer OEM and ODM services?
A: Yes. We can customize the LOGO and products according to your needs.
Q: What if the product breaks down in the future?
A: Don't worry, we offer a very long warranty.
Q: Material of the reverse osmosis system?
A: You can choose FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe, or total stainless steel.
Q: How is the quality?
A: All the materials used for our products are strictly chosen by QA, and finishings are checked carefully by QC. Every machine will be strictly tested and aged for several days before delivery.
Guidelines for getting the right quote:
1. Tell us your desired production capacity (0.5T/H, 1T/H, 2T/H...)?
2. What is your water source (tap/groundwater...)?
3. What is the product water used for (drinking water/bottled water...)?
4. If you have a water report, please send it to us.
