Heat Resistant Fiberglass Chopped Strand Mat Cloth Polyester Surface Veil Customizable

Price Negotiable

Price: $7.04-$36.62（㎡）

MOQ: 500㎡

Delivery Time: 3-7 work days

Brand: WGSC

Product Description

Polyester Surface Veil Engineered For Superior FRP Performance

Product Attributes

Attribute	Value
Material	Fiberglass
Alkali Resistance	Excellent
Heat Resistance	Good
Moisture Content	≤0.2%
Acid Resistance	Excellent
Application	Hand lay-up, RTM, Filament winding

Product Definition

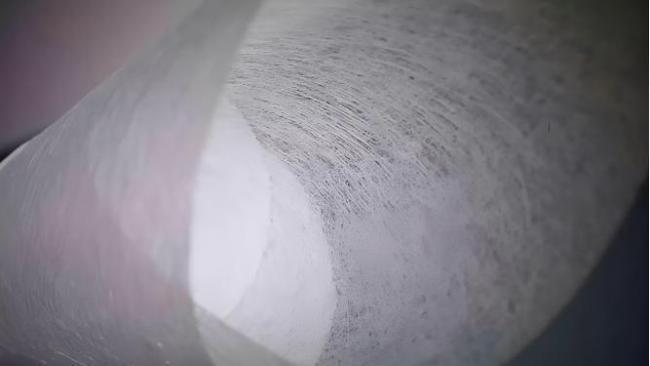

Polyester surface veil is a 100% modified polyester fiber non-woven fabric manufactured through hydro-entanglement technology. Designed as the critical surface enhancement layer for FRP composites, it forms a high-resin-permeability barrier that significantly improves corrosion resistance, surface finish, and weather durability.

Core Advantages

Exceptional Chemical Resistance
- Withstands highly corrosive media like hydrofluoric acid (HF) (superior to glass fibers), ideal for chemical storage tanks and acid digestion chambers
- Validated by ISO 28721-3 for chemical solvent resistance.
Rapid Resin Penetration
- Fiber-modified surface accelerates resin saturation by 30%, eliminating bubbles, white spots, and fiber print-through for uniform resin-rich surfaces
Environmental Durability
- UV Stability: Blocks photodegradation, extending outdoor service life (e.g., fencing, wind turbine blades)
- Thermal Endurance: Continuous service at 230°C, peak tolerance at 280°C
Operator & Process Safety
- Soft fibers prevent skin irritation vs. glass fiber splinters; excellent conformability to complex mold geometries

Global Applications

Corrosion Engineering

HF Storage Tanks & Wastewater Liners: 50% longer lifespan than traditional materials
Chemical Pipeline Liners: Leak-proof performance certified to ISO 28721-3.

Infrastructure & Transportation

FRP Railings/Auto Bumpers: Mirror-like finish with impact resistance; complies with EN 45545-2 fire standards
Mass Transit Interior Panels: Fiber-free surface ensures human-contact safety.

Renewable Energy

Wind Blade Surface Layer: Zero chalking after 3,000 hrs QUV testing (ASTM G154)
Desulfurizer Towers: Resists sulfide corrosion (-40°C to 230°C).

High-Precision Manufacturing

Aerospace Components: Dimensional stability for tight-tolerance assemblies.
Reverse Osmosis Housings: Mashes fabric patterns, enhances hydraulic pressure resistance.

Technical Specifications

Parameter	Value Range	Test Standard
Weight	20-60 g/m² (customizable up to 120 g/m²)	ISO 3374
Width	100-3600 mm (±1% tolerance)	Custom specification
Thickness	0.2-0.8 mm	ISO 534
Operating Temperature	-40°C ~ +230°C (peak 280°C)	ISO 3795
Chemical Resistance	98% H₂SO₄, 40% HF, NaOH ≤30%	ISO 175
Resin Saturation Time	≤15 sec (30% faster vs. glass veil)	In-house method
Tensile Strength	≥35 MPa (longitudinal)	ISO 527
UV Stability	Zero chalking after 3,000 hrs QUV	ASTM G154

Customizable weight, color (white/dyed), and pore size (10 μm/22μm/25μm).

Packaging & Traceability

Roll Configuration
- Core: Ø76mm industrial-grade paper tube.
- Outer Protection: Full-seal waterproof stretch film + anti-vibration woven bag/custom carton.
Palletization
- Vertical/horizontal placement on wooden pallets (max. 1.5 tons/pallet).
- Pallet labels include: Product code, specs, batch number, production date, QC ID.
Blockchain Traceability
- QR code per roll linking to real-time QC reports and raw material origins

Storage Protocol

Requirement	Specification
Environment	15-35°C, 35%-65% RH; shaded warehouse away from heat/water sources
Stacking Limit	≤3 pallet layers; avoid compression deformation
Post-Opening Handling	Re-seal unused rolls; consume within 48 hours
Shelf Life	12 months in original packaging (post-expiry resin penetration test required)

Why Choose Our Polyester Surface Veil?

Process Versatility: Compatible with pultrusion, RTM, hand lay-up, vacuum infusion, filament winding
Eco-Compliance: REACH SVHC-free, RoHS 3 certified, PFAS-free per EU 2023/707
Performance Guarantee: 24-month warranty against manufacturing defects.
