Eco Friendly Fiberglass Roving Roll Chemical Resistant With Versatility
| Attribute | Value |
|---|---|
| Model Number | ER2400 |
| Linear Density Tex | 2400 |
| Moisture Content | ≤ 0.2% |
| Tolerance | ±6% |
| Size Content | 0.50±0.20% |
| Stiffness mm | 110±15% |

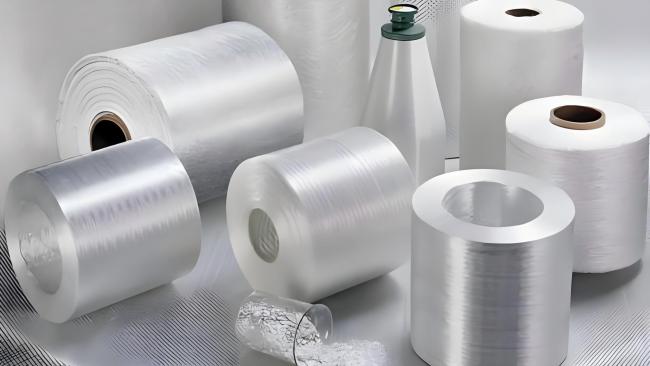

Fiberglass Roving Yarn is a primary reinforcement material in composite manufacturing, produced by aligning and twisting continuous glass filaments into strands (rovings). Designed for high tensile strength, corrosion resistance, and cost-efficiency, it serves as the "skeleton" in composites, enhancing mechanical performance while reducing material weight.
- Superior Strength: Tensile strength up to 3,000 MPa (equivalent to steel at 1/5 the weight).
- Thermal Stability: Withstands temperatures from -60°C to 500°C (short-term: 600°C).
- Chemical Resistance: Inert to acids, alkalis, and solvents (except hydrofluoric acid).
- Versatility: Compatible with epoxy, polyester, vinyl ester, and thermoplastic resins.
- Raw Material Melting: Silica sand, limestone, and boron oxide are melted at 1,500-1,600°C in a refractory furnace to form molten glass.
- Fiber Drawing: Molten glass is extruded through platinum-rhodium bushings (nozzles) to form continuous filaments (diameter: 5-25 µm).
- Twisting & Roving Formation: Filaments are gathered into strands (200-4,800 tex) and twisted (0-10 turns/meter) using high-speed roving machines.
- Coating (Sizing): A protective coating (e.g., silane or acrylic) is applied to enhance resin adhesion.
- Winding & Packaging: Rovings are wound onto cardboard tubes or plastic spools (diameters: 200-600 mm).
- Quality Control: ISO 9001-certified testing for tensile strength, linear density, and resin compatibility.
| Parameter | Details |
|---|---|
| Material | E-glass (general), C-glass (chemical), S-glass (high-strength) |
| Linear Density | 200-4,800 tex (tex = g/km) |
| Tensile Strength | 2,500-3,500 MPa |
| Elastic Modulus | 70-85 GPa |
| Breaking Elongation | 2-4% |
| Operating Temp | -60°C to +500°C (short-term: 600°C) |
| Coating Type | Silane (general), Acrylic (high-adhesion) |
| Certifications | ISO 9001, REACH, RoHS |
Application: Wind turbine blades (primary reinforcement for spanwise and chordwise strength).
Case: Vestas V150 turbine blades use E-glass rovings to reduce blade weight by 20% while maintaining 20+ year lifespan.
Application: Lightweight body panels (e.g., hoods, doors) and interior components (e.g., dashboards).
Case: BMW i3 uses fiberglass rovings in its carbon fiber-reinforced plastic (CFRP) passenger cell for 30% weight reduction.
Application: Boat hulls, decks, and masts (corrosion-resistant alternative to steel/aluminum).
Case: Benetti superyachts employ C-glass rovings in hull laminates to withstand saltwater exposure for 15+ years.
Application: Reinforced concrete (prestressed beams, bridge decks) and FRP rebar.
Case: The Golden Gate Bridge retrofit uses S-glass rovings in FRP rebar to extend service life by 50 years.
