Alkali Resistant Basalt Fiber Yarn Environmental Protection For Applications

Price Negotiable

Price: $0.85-$2.55（KG）

MOQ: 1000KGS

Delivery Time: 3-7 work days

Brand: WGSC

Product Description

Basalt Fiber Civil Engineering Transportation Infrastructure Environmental Protection And Applications

Product Attributes

Attribute	Value
Material	Basalt
Filament Diameter	9-24(μm)
Tensile Strength(MPa)	≥3200-≥4150(MPa)
Elastic Modulus(GPa)	91-110(GPa)
Alkali Resistance	≥85%-≥95%
Max Operating Temp	880°C/650°C
Fire Resistance	Non-combustible
Chemical Resistance	Excellent
Abrasion Resistance	Excellent
Uv Resistance	Excellent
Corrosion Resistance	Excellent
Environmental Friendliness	100% Natural and Recyclable

Product Introduction

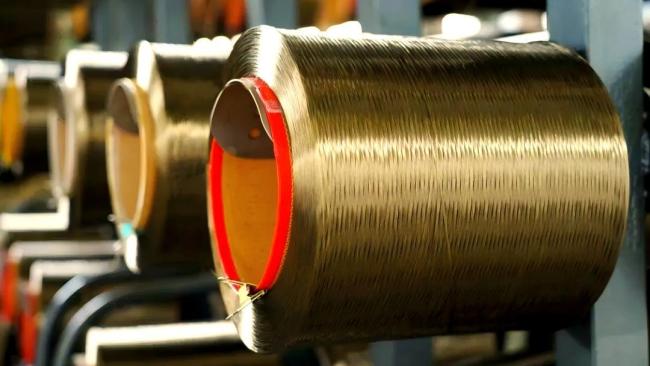

Basalt Fiber Material is an advanced inorganic composite derived from natural volcanic basalt rock. Melted at 1,450-1,500°C and drawn into continuous filaments, it offers exceptional mechanical strength, thermal stability, and corrosion resistance.

Eco-Friendly: 100% natural, recyclable, and free of carcinogens
Extreme Temperature Tolerance: Operates in -269°C to 800°C environments
Chemical Resistance: Impervious to acids, alkalis, and solvents
Lightweight: 20-30% lighter than fiberglass with equivalent strength
Applications: Structural reinforcement, thermal insulation, automotive parts, aerospace components, and fireproof textiles

Manufacturing Process

Raw Material Processing: Basalt rock is crushed and melted in a platinum-rhodium alloy furnace at 1,450-1,500°C
Fiber Drawing: Molten basalt is extruded through spinnerets to form 7-25 µm diameter filaments
Textile Production: Filaments are woven into unidirectional (UD), plain, twill, or satin fabrics using precision looms
Surface Treatment: Coated with sizing agents (e.g., silane) to enhance adhesion and UV resistance
Quality Control: ISO 9001-certified testing for tensile strength (3,800-4,800 MPa) and thermal stability

Usage Precautions

Mechanical Handling: Avoid sharp tools or excessive bending to prevent fiber breakage
Chemical Exposure: Resistant to most chemicals but avoid prolonged contact with strong oxidizers (e.g., concentrated sulfuric acid)
Thermal Management: Prevent rapid temperature shifts to avoid thermal shock cracking; use in dry conditions
Storage: Store in ventilated, dry areas; avoid folding under tension

Specifications

Parameter	Details
Material	100% Continuous Basalt Filaments
Density	2.6-2.8 g/cm³
Tensile Strength	3,800-4,800 MPa (warp/weft)
Elastic Modulus	93-110 GPa
Temperature Range	-269°C to +800°C (short-term: up to 900°C)
Weight	100-900 g/m²
Width	1-3 m
Thickness	0.2-0.5 mm
Certifications	ISO 9001, CE, ASTM D6637

Applications & Case Studies

A. Construction

Case: Bridge decks in China reinforced with basalt fiber composites to withstand seismic activity

Reinforcement: Used in concrete to enhance tensile strength and reduce cracking
Fireproofing: Fire-resistant curtains and insulation for high-temperature industrial facilities

B. Automotive

Case: Spanish GALFER's motorcycle brake pads using basalt fiber
