High Performance Fiberglass Fabric Sheets Chemical Resistant High Strength
Price:
$0.70-$0.99（KG）
MOQ:
2000KGS
Delivery Time:
3-7 work days
Brand:
WGSC
Product Description

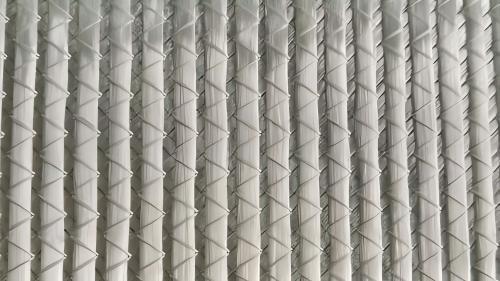

Glass Fiber Axial Fabrics | High Performance Composite Reinforcement
| Attribute | Value |
|---|---|
| Width | 100-3200 mm |
| Thickness | 0.5-3 mm |
| Heat Resistance | Up to 300°C |
| Alkali Content | ≤ 0.8% |
| Acid Content | ≤ 0.5% |
| Fiber Type | E-Glass |
Product Introduction
Glass Fiber Axial Fabrics are specialized composite reinforcement materials engineered with unidirectional or multi-axial fiber alignment to deliver exceptional strength, durability, and design flexibility. These fabrics are critical in applications requiring high tensile strength, thermal stability, and lightweight solutions.
- Unidirectional/Multi-Axial Alignment: Fibers oriented in 0°, ±45°, or 90° directions for optimized directional strength.
- High Tensile Strength: Ranges from 3,000-5,000 MPa, outperforming traditional woven fabrics in primary stress directions.
- Lightweight: Density as low as 1.5-2.0 g/cm³, ideal for aerospace and automotive industries.
- Thermal Resistance: Withstands temperatures up to 600°C without significant degradation.
- Chemical Stability: Resists acids, alkalis, and solvents, ensuring durability in harsh environments.
Manufacturing Process
- Fiber Preparation: E-glass or S-glass filaments (6-25 µm diameter) are drawn from molten glass at 1,500-1,600°C.
- Fiber Alignment: Filaments are aligned unidirectionally or in multi-axial patterns (0°, ±45°, 90°) using automated spreading machines.
- Stitch Bonding: Layers are stitched together with polyester or nylon threads to maintain fiber integrity and prevent displacement.
- Surface Treatment: Coated with sizing agents (e.g., silane) to enhance resin adhesion and UV resistance.
- Quality Control: ISO 9001-certified testing for tensile strength, fiber orientation accuracy, and thickness uniformity.
Usage Precautions
- Handling: Wear PPE (gloves, goggles) to avoid fiber irritation; use sharp tools cautiously to prevent breakage.
- Resin Compatibility: Match fabric type (e.g., E-glass for general use, S-glass for high-strength) with epoxy, polyester, or vinyl ester resins.
- Curing Conditions: Maintain 120-150°C and 0.5-1.0 MPa pressure during curing to eliminate voids.
- Storage: Store in dry, ventilated areas (humidity <60%); avoid prolonged UV exposure to prevent coating degradation.
Specifications
| Parameter | Details |
|---|---|
| Material | E-glass, S-glass, or hybrid (glass/carbon) |
| Fiber Orientation | 0°, ±45°, 90° (multi-axial options) |
| Weight | 200-1,200 g/m² |
| Thickness | 0.2-0.8 mm |
| Tensile Strength | 3,000-5,000 MPa |
| Elastic Modulus | 70-110 GPa |
| Operating Temp | -60°C to +600°C (short-term: 800°C) |
| Surface Resistivity | >10¹² Ω (electrical insulation) |
| Certifications | ISO 9001, REACH, RoHS |
Applications & Case Studies
A. Aerospace
Aircraft Components: Reinforces fuselage panels, wings, and engine mounts for lightweight durability.
Case: Boeing 787 Dreamliner uses multi-axial fabrics in wing structures to reduce weight by 20%.
B. Automotive
Body Panels: Enhances strength of EV door panels and chassis components.
Case: Tesla Model S uses axial fabrics in battery trays for crash resistance.
C. Wind Energy
Turbine Blades: Reinforces leading edges to withstand high wind loads and fatigue.
Case: GE Haliade-X offshore wind turbine blades use multi-axial fabrics for extended lifespan.
D. Marine
Boat Hulls: Corrosion-resistant alternative to steel/aluminum.
Case: Benetti superyachts employ axial fabrics in hull laminates for 15+ years of saltwater durability.
E. Industrial Piping
Pressure Vessels: Reinforces FRP tanks for chemical storage.
Case: Dow Chemical's storage tanks use E-glass axial fabrics for leak-free service over 25 years.
F. Sports & Safety
Protective Gear: Helmets and automotive safety belts.
