Corrosion Resistant Chopped Strand Mat Glass Fiber Surface Mat Industrial FRP Lining Solution​

Price Negotiable
Price: $7.04-$36.62(㎡)
MOQ: 500㎡
Delivery Time: 3-7 work days
Brand: WGSC
Product Description
Glass Fiber Surface Mat | Marine Corrosion Resistance And Industrial FRP Lining Solutions
1. Product Introduction

Glass Fiber Surface Mat is a non-woven composite material engineered for superior surface protection and aesthetic enhancement in FRP (Fiber-Reinforced Plastic) laminates. Composed of randomly oriented E-glass fibers bonded with polyester or epoxy-compatible binders, it delivers a smooth, resin-rich finish to composite parts. This product minimizes fiber print-through, improves interlaminar bonding, and acts as a corrosion-resistant barrier, making it ideal for applications demanding high durability and visual appeal in marine, automotive, and construction industries.


2. Production Process
Step Description
Fiber Cutoff Continuous glass rovings are cut into 1.5-3 inch lengths for uniform distribution.
Binder Application Fibers are bonded using polyester, acrylic, or epoxy binders for structural integrity.
Random Distribution Cutoff fibers are spread evenly on a moving belt to form a non-woven mat.
Curing Heat treatment activates binder curing, ensuring dimensional stability.
Quality Control Parameters like weight (30-100 gsm), thickness (0.2-0.5 mm), and adhesion are tested.

3. Usage Precautions
  • Storage: Keep in dry, cool environments (<35% RH) away from humidity and direct sunlight.
  • Temperature Limits: Operate within -40°C to 120°C; avoid prolonged exposure to extreme heat.
  • Chemical Compatibility: Compatible with polyester, vinyl ester, and epoxy resins. Avoid contact with strong acids, solvents, or alkaline solutions.
  • Handling: Wear gloves to prevent fiber irritation; use sharp cutting tools to minimize fraying.

4. Key Specifications
Parameter Standard GFSM
Basis Weight 30-100 gsm (customizable)
Thickness 0.2-0.5 mm
Tensile Strength ≥40 N/50 mm (MD)
Binder Content 5-15%
Moisture Content ≤0.2%
Flammability Self-extinguishing
Certifications ISO 2078, ASTM D578, RoHS

5. Applications
  • Marine Engineering: Hulls, decks, and offshore platforms for saltwater corrosion resistance.
  • Automotive: Surface layers for car panels, hoods, and electrical enclosures to enhance aesthetics.
  • Construction: Reinforced concrete panels, roofing materials, and insulation with anti-corrosion properties.
  • Wind Energy: Turbine blades and nacelle structures for UV and mechanical durability.
  • Consumer Goods: Bathroom fixtures, storage tanks, and outdoor furniture with smooth, stain-resistant finishes.

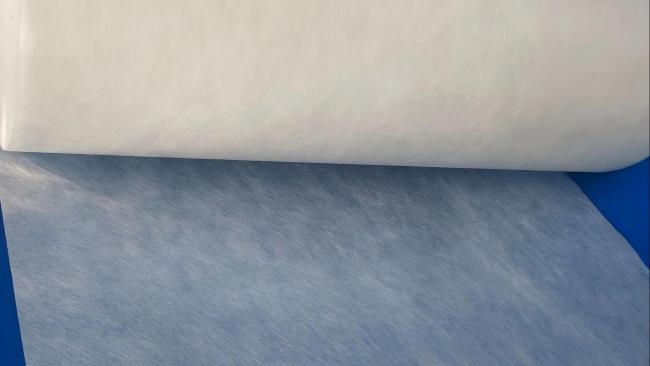

Glass Fiber Surface Mat product sample Glass Fiber Surface Mat application in industrial setting
