VW-1 Flame Resistant Carbon Fiber Sleeve with Thermal Stability and Flexible Design for Aerospace and Industrial Applications
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
WGSC
Product Description

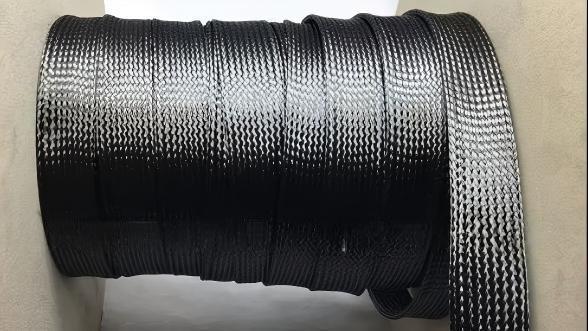

Carbon Fiber Sleeve Protective Tubing
Lightweight High Strength for Aerospace, Automotive & Industrial Applications
Our Carbon Fiber Sleeve is a precision-woven tubular fabric crafted from premium high-performance carbon fibers. Engineered for exceptional versatility, it combines ultra-lightweight design (density approx. 1.6 g/cm³) with remarkable tensile strength (up to 3500 MPa), ensuring reliable performance in demanding environments. Maintaining thermal stability up to 650°C, its advanced braided structure delivers superior fatigue resistance and flexibility, adapting to diameters ranging from 8mm to 127mm via radial expansion capabilities.
Key Features
- Lightweight & High-Strength: Weighs significantly less than metal alternatives yet withstands extreme forces, reducing system weight without compromising durability.
- Thermal Stability: Operates reliably under high-temperature conditions (up to 650°C) with minimal dimensional changes.
- Flexible & Fatigue-Resistant Braided Structure: Expands radially to fit varied diameters (8mm-127mm) and endures repeated stress cycles without failure.
- Compliance & Safety: Meets VW-1 flame resistance standards and ROHS regulations for environmental safety.
- Multi-Protective Properties: Resists corrosion, EMI interference, and mechanical abrasion, extending equipment lifespan.
- Customization Ready: Black finish standard; offer tailored sizes, yarn types, and packaging to meet unique project needs.
Applications
- Aerospace: Protect aircraft wiring harnesses and hydraulic lines.
- Automotive: Shield engine components, sensors, and high-vibration cable assemblies.
- Industrial Machinery: Safeguard industrial robot arms, conveyor systems, and heavy-duty equipment cables.
- Structural Repair & Reinforcement: Restore damaged parts or reinforce high-stress components in infrastructure, marine, and manufacturing.
Technical Specifications
| Mark | Yarn Type | Woven Diameter Range (mm) | Weight Per Meter (g/m) |
|---|---|---|---|
| WGSC-3KCF-72 | 3K Carbon Fiber | 19-22 | 15 |
| WGSC-3KCF-96 | 3K Carbon Fiber | 20-40 | 20 |
| WGSC-3KCF-120 | 3K Carbon Fiber | 40-50 | 24 |
| WGSC-3KCF-144 | 3K Carbon Fiber | 50-60 | 29 |
| WGSC-6KCF-72 | 6K Carbon Fiber | 19-35 | 29 |
| WGSC-6KCF-96 | 6K Carbon Fiber | 30-50 | 39 |
| WGSC-6KCF-120 | 6K Carbon Fiber | 50-65 | 48 |
| WGSC-6KCF-144 | 6K Carbon Fiber | 60-80 | 58 |
| WGSC-12KCF-72 | 12K Carbon Fiber | 35-50 | 58 |
| WGSC-12KCF-96 | 12K Carbon Fiber | 40-70 | 77 |
| WGSC-12KCF-120 | 12K Carbon Fiber | 60-100 | 96 |
| WGSC-12KCF-144 | 12K Carbon Fiber | 100-130 | 116 |
| WGSC-1500DAF-96 | 1500D Kevlar® Fiber | 20-40 | 18 |
| WGSC-3000DAF-96 | 3000D Kevlar® Fiber | 40-70 | 49 |
Packaging
Standard packaging includes individual anti-static bags for each sleeve, packed into sturdy cardboard boxes or pallets (quantities-dependent). For bulk orders or specialized storage requirements, customized packaging (e.g., vacuum-sealed, climate-controlled containers) is available upon request.
Storage Guidelines
To preserve product integrity, store sleeves in a dry, well-ventilated environment away from direct sunlight and moisture. Recommended storage conditions:
- Temperature: 10°C - 30°C
- Humidity: Below 60% RH
