High Tensile Strength Glass Fiber Stitched Mat with Excellent Alkali Resistance and Uniform Fiber Distribution for Composite Reinforcement
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
WGSC
Product Description

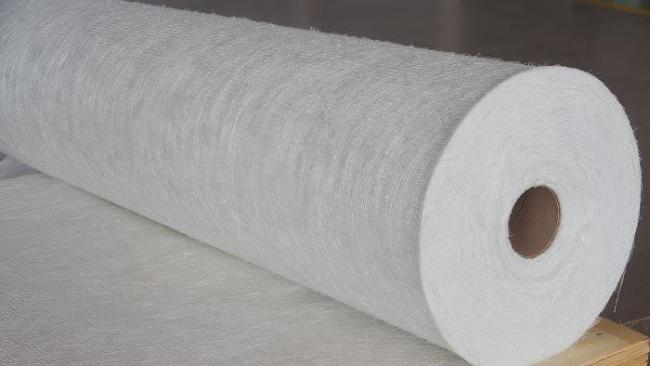

High-Performance Glass Fiber Stitched Mat for Composite Applications
Product Overview
Glass Fiber Stitched Mat is engineered from chopped E-glass strands or woven roving, precision-cut and randomly dispersed before being stitched with polyester or carbon fiber threads. This innovative material combines directional strength from woven roving and multi-directional reinforcement of chopped strand mats, making it ideal for enhancing mechanical properties in composite manufacturing. Compatible with unsaturated polyester, vinyl ester, and epoxy resins, it serves as a critical material for industries requiring durability and lightweight solutions.
Key Features & Benefits
Optimized Structural Integrity
- Uniform Fiber Distribution: Ensures consistent mechanical performance with ≤5% thickness deviation
- High Wet Tensile Strength: Maintains >30 MPa tensile strength even when fully saturated
- Directional Customization: Available in unidirectional or bidirectional configurations for targeted load-bearing applications
Process Compatibility
- Rapid Resin Penetration: ≤60-second impregnation time for efficient RTM and pultrusion processes
- Cold Storage Stability: Remains workable for 24+ hours at -18°C, extending production timelines
- Minimal Void Formation: Open-weave structure reduces air entrapment during curing
Industrial-Grade Durability
- Temperature Resistance: Operates effectively from -60°C to +150°C
- Chemical Resistance: Withstands exposure to oils, solvents, and acidic environments
Applications
| Industry | Typical Uses |
|---|---|
| Aerospace | Aircraft interior panels, helicopter rotor blades |
| Automotive | Lightweight chassis components, brake discs, and EV battery enclosures |
| Wind Energy | Turbine blade reinforcement, nacelle structural layers |
| Marine | Boat hulls, offshore platform decks, and corrosion-resistant coatings |
| Construction | Structural panels, insulation boards, and seismic retrofitting |
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Base | E-glass chopped strands + polyester/carbon fiber stitching |
| Grammage Range | 250-600 g/m² (±5%) |
| Tensile Strength (Warp) | ≥300 N/50mm (ASTM D3776) |
| Elastic Modulus | 10-20 GPa |
| Moisture Absorption | <0.5% (24h immersion at 23°C) |
| Resin Compatibility | Unsaturated polyester, epoxy, vinyl ester |
Packaging & Delivery
Standard Packaging

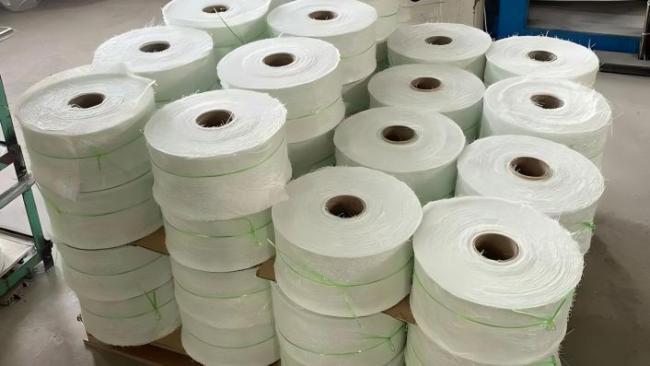

- Primary: Rolled on 76mm diameter paper tubes, wrapped in PE film to prevent oxidation
- Secondary: Packaged in moisture-resistant cardboard boxes with desiccant packs
- Bulk Orders: Stacked on pallets (max 2 layers) with stretch wrap for secure transit
Custom Solutions
- Jumbo rolls (width: 1200-3200mm, length: 500-1000m) for large-scale manufacturing
- Climate-controlled containers for international shipments
Storage Guidelines
- Environment: Store in cool, dry warehouses (15-35°C, 35-65% RH)
- Protection: Avoid direct sunlight, chemical vapors, and mechanical compression
- Shelf Life: 12 months if unopened and stored properly
- Handling: Thaw gradually at room temperature (avoid rapid warming to prevent delamination)
