The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system fully complies with the American Petroleum Institute's (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.

All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

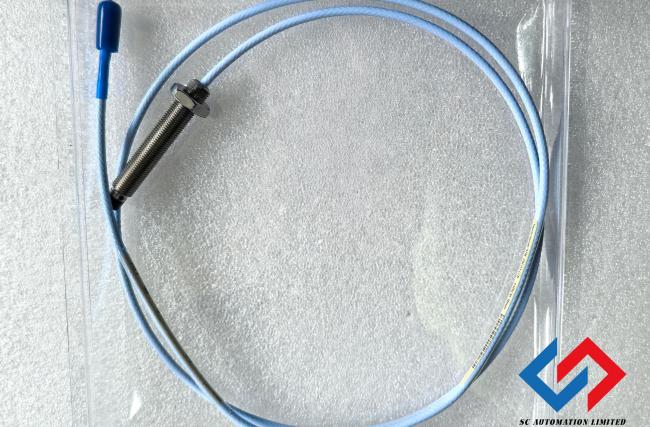

3300 XL 8 mm Proximity Probes, Metric:

• 330103 - 3300 XL 8 mm Probe, M10 x 1 thread, without armor
• 330104 - 3300 XL 8 mm Probe, M10 x 1 thread, with armor

Part Number Format: AA-BB-CC-DD-EE

A: Unthreaded Length Option
Order in increments of 10 mm. Maximum unthreaded length: 230 mm. Minimum unthreaded length: 0 mm.

B: Overall Case Length Option
Order in increments of 10 mm. Maximum case length: 250 mm. Minimum case length: 20 mm.

C: Total Length Option

• 05 - 0.5 meter (1.6 feet)
• 10 - 1.0 meter (3.3 feet)
• 15 - 1.5 meter (4.9 feet)
• 20 - 2.0 meters (6.6 feet)
• 50 - 5.0 meters (16.4 feet)
• 90 - 9.0 meters (29.5 feet)
