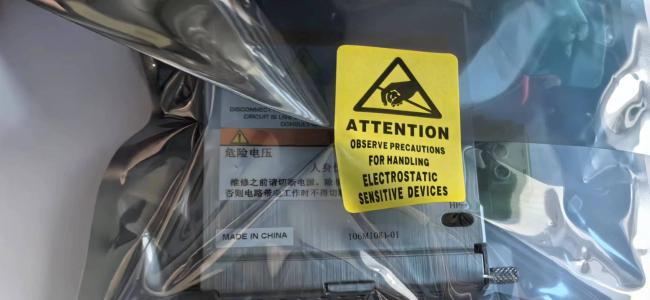

3500/15 Universal AC Bently Nevada Power Supply 85-264V 106M1079-01
Price:
negotiable
MOQ:
1pc
Delivery Time:
on request
Brand:
Bently Nevada
Product Description
3500/15 Bently Nevada 3500 System AC And DC Power Supplies 3500/15-05-05-00 106M1081-01
Product Attributes
| Attribute | Value |
|---|---|
| Brand: | BENTLY NEVADA |
| Part No.: | 106M1079-01 |
| Universal AC Voltage | 85 to 264 Vac rms |
| Weight | 1.39 kg |
| Dimensions | 120.7 mm x 50.8 mm x 251.5 mm |
| Color: | Blue |
Product Description
The 3500/15 AC and DC Power Supplies are half-height modules designed for installation in designated slots on the left side of the rack. The 3500 rack can accommodate one or two power supplies with any combination of AC and DC configurations. Either supply can power a full rack independently.
Power Supply Configuration
When two power supplies are installed in a rack, the lower slot functions as the primary supply while the upper slot serves as the backup. The system maintains continuous operation when inserting or removing either power supply module as long as a second power supply remains installed.
Voltage Conversion
The 3500/15 AC and DC Power Supplies accept a wide range of input voltages and convert them to voltages suitable for use by other 3500 modules. Available power supply options include:
- Universal AC Power
- High Voltage DC Power Supply
- Low Voltage DC Power Supply
Ordering Information
For detailed country and product specific approvals, refer to the Approvals Quick Reference Guide (108M1756) available from Bently.com.
3500/15 Power Supply Module (3500/15-AA-BB-CC)
| Code | Description |
|---|---|
| 03 | Legacy High Voltage DC (88 to 140 Vdc) |
| 04 | Legacy Low Voltage DC (20 to 30 Vdc) |
| 05 | Universal AC Voltage (85 to 264 Vac rms) |
| 06 | High Voltage DC Supply |
| 07 | Low Voltage DC Supply |
Spare Parts
| Part Number | Description |
|---|---|
| 106M1079-01 | Universal AC Power Supply Module |
| 106M1081-01 | Universal AC Power Input Module |
| 129486-01 | Legacy High Voltage DC Power Supply Module |
| 129478-01 | Legacy High Voltage DC Power Input Module |
| 133292-01 | Legacy Low Voltage DC Power Supply Module |
| 133300-01 | Legacy Low Voltage DC Power Input Module |
| 114M5329-01 | High Voltage DC Power Supply |
| 115M7750-01 | High Voltage DC PIM |
| 114M5330-01 | Low Voltage DC Power Supply |
| 114M5335-01 | Low Voltage DC PIM |
| 01720025 | Replacement Fuse (for both AC Power Input Module and Legacy High Voltage DC Power Input Module) |
| 01720045 | Replacement Fuse (Low Voltage DC Power Input Module and Legacy Low Voltage DC Power Input Module) |
| 120M3877 | Replacement Fuse Fast blow rated at 5A/500 Vac Size 6.3 x 32 mm (Universal AC Power Input Module) |
| 131150-01 | Power Supply Blank Front Panel (qty 1, includes screws) |
| 128085-01 | Power Supply Rear Input Connector Cover (qty 1) |
| 04310251 | Screw for Power Supply Input Cover (qty 2) |
| 129767 | 3500/15 Power Supply User Guide |
| 118M0915-01 | Replacement connector for Universal AC Power Input Module |
| 118M0915-02 | Replacement connector for DC Power Input Module |
| 129M0198 | Replacement fuse (High Voltage DC Power PIM) |
Related Part Numbers
| 106M1079-01 | 106M1081-01 |
| 129486-01 | 129478-01 |
| 133292-01 | 133300-01 |
| 114M5329-01 | 115M7750-01 |
| 114M5330-01 | 114M5335-01 |
| 01720025 | 01720045 |
| 120M3877 | 131150-01 |
| 128085-01 | 04310251 |
| 129767 | 118M0915-01 |
| 118M0915-02 | 129M0198 |
