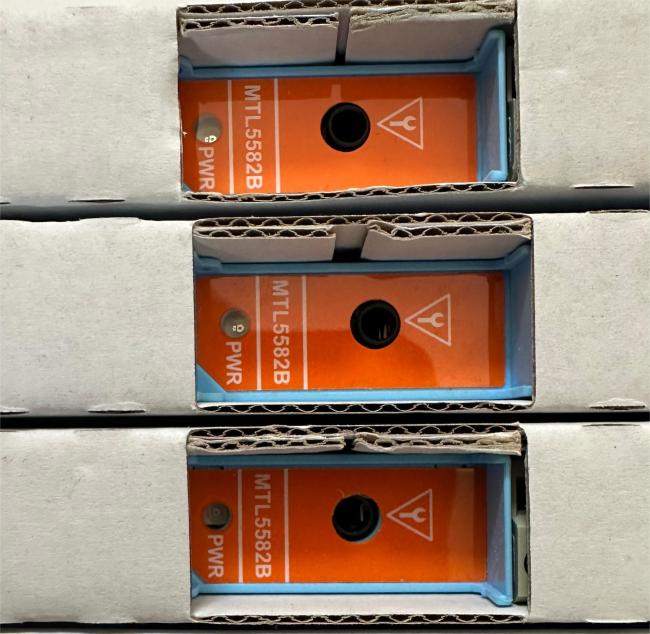

MTL5582B Resistance Isolator MTL Safety Barrier For 10Ω To 400Ω RTDs
| Number of channels | One |
|---|---|
| Resistance source | 2-, 3-, or 4-wire* RTDs to BS 1904/DIN 43760 (100Ω at 0°C) *user selectable by switches (factory set for 3-wire) |
| Resistance range | 10Ω to 400Ω |
| Output configuration | 2, 3 or 4 wires (independent of mode selected for hazardous area terminals) |
| LED indicator | Green: power indication |
| Maximum power dissipation within unit | 0.8W at 24V 1.0W at 35V |
The MTLx582B connects to a 2-, 3-, or 4-wire resistance temperature device (RTD) or other resistance located in a hazardous area, isolates it and repeats the resistance to a monitoring system in the safe area. The module is intended typically (but not exclusively) for use with Pt100 3-wire RTDs. Switches enable selection of 2-, 3-, or 4-wire RTD connection.
The MTLx582B should be considered as an alternative, non-configurable MTLx575, for use in RTD applications where a resistance input is preferred or needed instead of 4/20mA. The design is notable for its ease of use and repeatability. The number of wires which can be connected on the safe-area side of the unit is independent of the number of wires which can be connected on the hazardous-area side. The module drives upscale in the case of open circuit detection.
Div. 1, Group A, hazardous location
<0.25Ω at excitation current 0.5 - 1mA
35mA at 20V
28mA at 35V
1.0W at 35V
Uo = 1.2V Io = 4mA Po = 1.2mW Um = 253V rms or dc
Non-energy-storing apparatus ≤ 1.5V, ≤ 0.1A, ≤ 25mW; can be connected without further certification into any IS loop with an open circuit voltage < 5V.
Terminals 1, 3, 4 and 5
U = 6.51V I = 10mA P = 17mW
