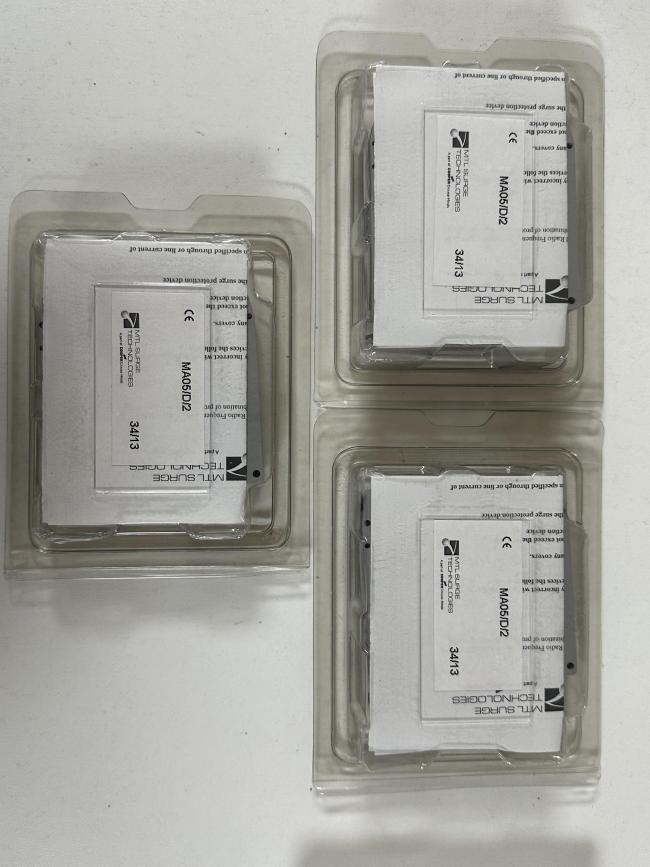

MTL MA05/D/2 DIN Rail Surge Protector MTL Safety Barrier 240V 5A 800V Limiting
Price:
negotiable
MOQ:
1pc
Delivery Time:
on request
Brand:
MLT
Product Description
MTL MA05/D/2 Surge Protection for Limiting Voltage 800V and High Temperature Performance
Product Specifications
| Attribute | Value |
|---|---|
| Maximum surge current | 6.5kA (8/20µs) |
| Maximum leakage current | <0.3mA at working voltage |
| Rated current | 5A at 30°C |
| Current derating | 1A/10°C above 35°C |
| Working voltage | 240V |
| Limiting voltage | <800V |
Product Overview
The MTL surge protection MA05/D/2 combines filtering, surge and ring suppression for comprehensive protection against electrical disturbances on AC power cabling.
- High-quality filtering with ring suppression technology
- Available in three mounting configurations: Wall/floor (I), DIN-rail (D), or standard filter case (SC)
- Includes thermal fuse protection for added safety
- Exceeds IEC61000-4-5, level 4 compliance for EMC performance
The MA05 range protects electronic equipment and computer networks against industrial noise and surges caused by lightning, switching devices, thyristor controls, transmission system overloads, and power-factor correction circuits.
Available in multiple configurations: 'SC' models feature safety-shrouded spade terminations in standard filter cans; 'I' units for wall/floor mounting in plastic enclosures with screw terminals; and 'D' models for DIN-rail mounting in control panels.
Ordering Information
| MA05/SC/1 | 'filter-can' 110V, 5Amp |
| MA10/SC/1 | 'filter-can' 110V, 10Amp |
| MA05/SC/2 | 'filter-can' 240V, 5Amp |
| MA10/SC/2 | 'filter-can' 240V, 10Amp |
| MA05/D/1 | 'DIN-rail' 110V, 5Amp |
| MA10/D/1 | 'DIN-rail' 110V, 10Amp |
| MA05/D/2 | 'DIN-rail' 240V, 5Amp |
| MA10/D/2 | 'DIN-rail' 240V, 10Amp |
| MA05/I/1 | Wall/floor mounting 110V, 5Amp |
| MA10/I/1 | Wall/floor mounting 110V, 10Amp |
| MA05/I/2 | Wall/floor mounting 240V, 5Amp |
| MA10/I/2 | Wall/floor mounting 240V, 10Amp |
