Large Glass Fused Bolted Steel Tanks Modular Design Durability For Water Management System
Large Potable Water Storage Tanks bolted steel water storage tanks constitute a significant and prudent investment for any water management system, whether it serves a small community or a large industrial complex. These tanks are meticulously engineered to provide a consistent and reliable supply of clean, safe drinking water.
Constructed from high-grade steel, these tanks are designed to withstand harsh environmental conditions, including extreme temperatures, heavy rainfall, and strong winds. Their robust construction ensures minimal maintenance over their lifespan, often extending several decades.
The versatility of bolted steel potable water storage tanks allows customization for various applications and environments. Available in multiple sizes and configurations, they can be tailored to optimize space utilization and aesthetic integration.
| Coating Color | Dark Blue, Dark Green Or Customized |
| Coating Thickness | 0.25-0.45mm |
| Acid And Alkalinity Proof | Standard PH 3-11, Special PH 1-14 |
| Adhesion | 3.450N/cm |
| Hardness | 6.0 (mohs) |
| Service Life | ≥30 Years |
| Holiday Test | 900 ~ 1500v |
| Permeability | Gas Liquid Impermeable |
| Easy To Clean | Smooth, Anti-adhesion, Glossy, Inert |
| Elasticity | Same as steel plate, about 500KN/mm |
| Corrosion Resistance | Excellent, suitable for wastewater, concentrated brine, sea water, high sulfur crude oil, salt spray, organic and inorganic compounds |
- Short construction period
- Superior corrosion resistance with service life exceeding 30 years
- Low project cost
- Easily expandable tank volume
- Customizable colors for aesthetic appeal
- Weather-resistant construction
- No heavy installation equipment required
- Simple expansion, dismantling, and relocation

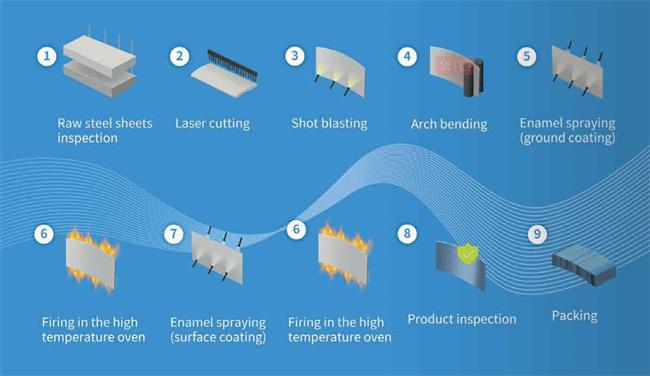

- High-strength TRS (titanium-rich steel) plates specially produced for Glass-Fused-To-Steel Technology
- Rigorous machinery preparation ensures optimal functionality
- Precision laser cutting of steel plates
- Automated laser cutting for bolt holes and nozzle apertures
- Surface cleaning removes dust particles
- Plates shot blasted to SSPC SP-10/NACE2 (Near White Metal) standard
- Plates bent according to tank diameter specifications
- Sampling inspection ensures proper curvature
- Panels coated with specialized glazes for different storage mediums
- Automatic spraying coating technology per AWWAD103 standard
- Glass coating fused to steel through firing process
- Automatic tunnel oven firing at 800℃ for complete bonding
- High-standard quality control system implementation
- Holiday test and coating thickness test on every plate
- Packing: Sea-worthy standard packing or customized options
- Port of Loading: Any port in China
- Payment Terms: 30% advance by T/T, 70% before shipment (or L/C based on order quantity)
- Production Period: 15-45 days depending on order size
- Shipping: Prompt dispatch upon full payment receipt
- Service: Professional installation guidance provided
