Palm Oil Storage Cylindrical GFS Panel Bolted Steel Tanks with Aluminum Geodesic Dome
Our GFS bolted steel tanks for palm oil storage with aluminum geodesic dome provide secure, durable, and cost-effective solutions for the palm oil industry. These versatile tanks are designed for easy maintenance and long-term reliability.
The modular design allows for flexible sizing to accommodate both small-scale operations and large-scale distribution needs. Businesses can efficiently manage palm oil inventory while maintaining quality and safety standards.
The tanks feature easy expansion and relocation capabilities, minimizing operational disruptions during capacity increases. The disassemblable design facilitates thorough cleaning and maintenance, ensuring optimal hygiene for stored palm oil.
Constructed from recyclable bolted steel materials, these tanks support sustainable practices and environmental stewardship in the industry.
| Coating color | Dark blue, dark green, white, and customized |
| Standard steel plate size | Effective size 2400mm x 1200mm |
| Steel plates thickness | 3mm - 12mm (depends on diameter & height) |
| Coating thickness | 0.25mm - 0.45mm (two coatings internal and external) |
| Acid and alkalinity proof | Standard coating suits PH3-PH11, special coating suits PH1-PH14 |
| Adhesion | 3,450N/cm |
| Elastic | Same as steel sheet (~500KN/mm) |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | 900-1500V |
| Permeability | Gas and liquid impermeable |
| Easy to clean | Smooth, glossy, inert, anti-adhesion surface |
| Corrosion resistance | Excellent resistance to wastewater, salt water, seawater, high sulfur crude oil, and organic/inorganic compounds |

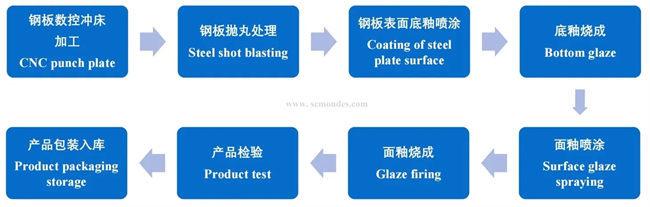

- Cutting-edge enameling technology ensures superior product performance
- First and most experienced Glass-Fused-to-Steel tanks manufacturer in China
- Innovative enameling protection on sheet edges and bolt holes
- Complies with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, NFPA international standards
- Certified by ISO9001, NSF61, LFGB, BSCI international qualification systems
- Extensive exporting experience with projects in over 20 countries
- Quick installation and lowest maintenance costs
- Packing: Sea-worthy standard packing or customized options
- Port of Loading: Any port in China
- Payment Terms: 40% advance by T/T, 60% before shipment (or L/C based on order quantity)
- Production Period: 5-60 days depending on order size
- Shipping: Prompt shipment upon full payment receipt
- Service: Professional installation guidance provided
