Durability NSF ANSI CAN 61 Enamel Steel Bolted Tanks For Waste Water Treatment
Price:
Please contact us
MOQ:
1 set
Delivery Time:
5~60 days
Brand:
YITIAN
Product Description
NSF ANSI CAN 61 Enamel Steel Bolted Panel Tank For Waste Water Treatment
Product Overview
Enamel Steel Bolted Tanks provide a robust and versatile solution for modern storage needs. Constructed with high-quality enamel-coated steel panels bolted together with custom rubber gaskets, these tanks ensure a watertight seal while offering superior corrosion resistance and extended lifespan.
The precision-engineered design features durable enamel finishes that withstand harsh conditions. The bolted construction allows for easy assembly, disassembly, and relocation, reducing transportation and installation costs. These tanks are adaptable for storing various substances including potable water, wastewater, petroleum products, and chemicals.
Main Technical Parameters
| Standard Color | RAL 5013 Cobalt Blue, RAL 6002 Leaf Green, RAL 6006 Grey Olive, RAL 9016 Traffic White, RAL 3020 Traffic Red, RAL 1001 Beige (Tan) |
|---|---|
| Coating Thickness | 0.25-0.45mm |
| Double Sides Coating | 2-3 coats each side |
| Adhesive | 3450N/cm |
| Elasticity | 500KN/mm |
| Hardness | 6.0 Mohs |
| PH Range | Standard Grade 3-11; Special Grade 1-14 |
| Service Life | More than 30 years |
| Holiday Test | Acc. to tank application, up to 1500V |

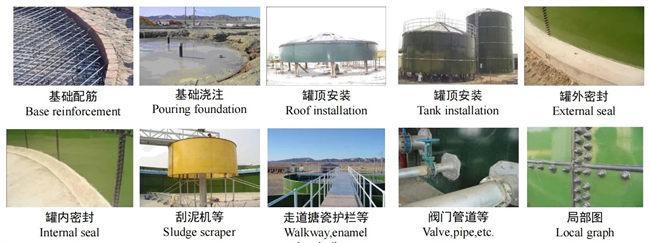

Installation Process
Site Preparation
- Foundation Construction: Prepare a solid, level foundation using concrete or compacted gravel according to manufacturer specifications
- Site Layout: Mark tank dimensions on foundation using stakes and string lines for precise placement
Component Inspection
- Pre-Installation Check: Inspect all components for damage and verify against bill of materials
- Documentation Review: Study installation manual and technical documents thoroughly
Assembly Process
- Base Panel Installation: Assemble base panels with proper alignment and secure fastening
- Wall Panel Erection: Erect wall panels sequentially using lifting equipment
- Roof Installation: Install roof sections ensuring watertight connections
Delivery Process
- Site Assessment: Evaluate installation site access and clearances
- Component Inventory: Verify all components against packing list
- Packaging and Protection: Secure components with protective materials and clear labeling
- Transportation Arrangements: Plan optimal route considering component size and road conditions
- On-Site Delivery: Unload components safely and inspect for damage
Certifications
- ISO 9001:2008 Quality Control System
- ANSI AWWA D103-09 Design Standard
- Titanium-Rich-Steel plates specially produced for GFS Technology
- Holiday Testing every panel at 700V - 1500V
- Glass Coating Thickness every panel on both sides
- Fish Scale Testing (one test for one batch)
- Impact Testing for enamel adherence (one test for one batch)
- Chinese National High-tech Enterprise
- ISO 9001:2015
- NSF/ANSI/CAN 61
