UV resistant Dual Membrane Bio Gas Balloon Mounted On Digester For Wastewater Treatment
Price:
Please contact us
MOQ:
1 set
Delivery Time:
5~60 days
Brand:
MDS
Product Description
Dual Membrane Biogas Balloon Mounted On Digester For Wastewater Treatment
Optimize Energy Management With Dual Membrane Biogas Balloon Mounted On Digester
Product Overview

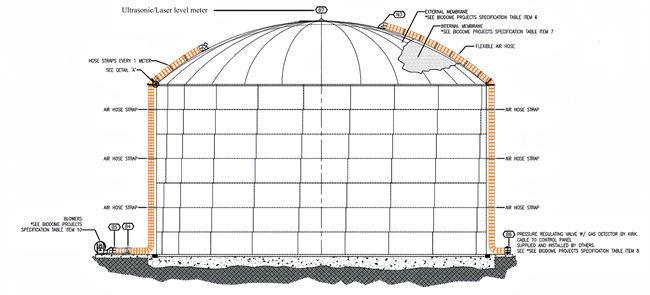

The MDS Dual Membrane Biogas Balloon represents an efficient storage solution for digester gas, featuring low total cost of ownership. This system offers easier installation, lower initial capital expenditures, and reduced operational costs compared to alternative gas storage methods. Its innovative design enables variable gas storage within the inner membrane while maintaining constant pressure during both gas production and utilization, with the air-inflated outer membrane providing necessary gas pressure and protection.
Constructed from advanced cross-woven PVC-coated fabric with UV protection, the outer membrane withstands harsh weather conditions including extreme temperatures, heavy rainfall, and strong winds. An ultrasonic sensor at the sphere's center continuously monitors stored gas volume, enabling real-time energy management decisions.
This system optimizes gas utilization for powering generators and heating systems while reducing 'flaming' emissions from digesters. It supports sustainability initiatives by enabling efficient use of renewable energy sources and reducing reliance on electric grid power.
Main Technical Parameters
| S/N | Items | Parameter Values |
|---|---|---|
| 1 | Capacity | Customized |
| 2 | Design pressure | 3mbar~20mbar |
| 3 | Operating pressure | 3mbar~15mbar |
| 4 | Outer membrane thickness | 0.74-1.20mm |
| 5 | Inner membrane thickness | 0.74~1.20mm |
| 6 | Max. wind load | 32.6m/s |
| 7 | Max. snow load | 30kg/m² |
| 8 | Applied temperature | -30℃ to +70℃ |
| 9 | Design service life | ≥20 years |
| 10 | Weld seam width | ≥70mm |
| 11 | Methane permeability | ≤200cm³ /m²*d*0.1MPa (23℃, 65% R.H.) |
| 12 | Flame retardancy | B1 |
| 13 | Warranty | 10 years |
| 14 | Country of Origin | China |
Advantages
- High safety factor: Engineered for extreme conditions with overpressure safety valve and biogas leak detection system.
- No pollution: Eliminates phenol-laden wastewater generation compared to traditional wet gas tanks.
- Long service life: Inner membrane lasts over 25 years, outer membrane over 20 years.
- Convenient installation: Requires only basic concrete foundation and can be installed within days.
- Cost efficiency: Complete volume utilization with minimal weight (under 5 tons) reduces foundation requirements.
- Temperature adaptability: Operates effectively from -30℃ to +70℃ without additional systems.
- Minimal maintenance: Self-cleaning capabilities and corrosion-resistant materials.
- Environmental sustainability: Minimal waste production with excellent material recyclability.
- Stability: Advanced control technologies and robust structural design resistant to seismic events.
- High utilization rate: Achieves full output efficiency in gas utilization.
Quality Service and Warranty
- 100% quality testing before delivery
- Professional aging testing over 8 hours
- Function testing for every process
- 2 years warranty for whole set equipment
- Free repair for outer/inner membrane within 10 years
- Free replacement for membranes within 3 years
Applications
- Livestock farm
- Brewery wastewater treatment
- Beer wastewater treatment plant
- Paper mill wastewater treatment
- Urban sewage treatment
- Garbage disposal
- Food waste treatment
- Food wastewater treatment
- Crops' waste treatment
- Food factory sewage treatment

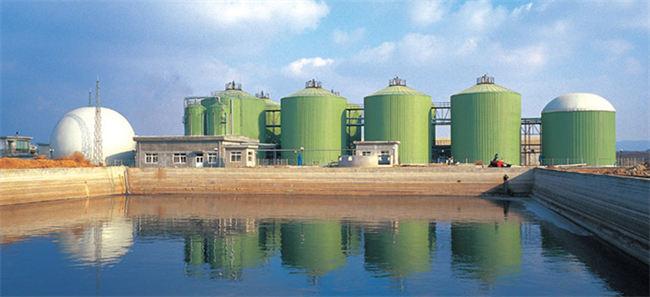

Product Show
