Lightweight Spherical Structure Aluminum Geodesic Dome Roof For Oil Tank
When it comes to safeguarding oil storage tanks, the Aluminum Geodesic Dome Roof has emerged as a game-changer. Combining lightweight durability, corrosion resistance, and cost-efficiency, these innovative structures are transforming industrial storage systems.
A geodesic dome is a spherical structure composed of interconnected triangular panels. When crafted from aluminum, it becomes an ideal roofing solution for oil tanks due to its:
- Lightweight design (reducing structural load)
- Exceptional corrosion resistance (ideal for harsh environments)
- Eco-friendly material (100% recyclable)
- High strength-to-weight ratio (withstands extreme weather)
| Feature | Benefit |
|---|---|
| Corrosion Resistance | Aluminum's natural oxide layer protects against rust and chemical exposure. |
| Low Maintenance | Requires minimal upkeep compared to steel or concrete alternatives. |
| Energy Efficiency | Reflective surface reduces heat absorption, lowering cooling costs. |
| Quick Installation | Prefabricated panels enable faster assembly, reducing downtime. |
| Longevity | Lifespan of 30+ years with proper maintenance. |
These roofs are widely used in:
- Oil and Gas Storage: Protect volatile substances from evaporation and contamination.
- Chemical Plants: Resist corrosive fumes and leaks.

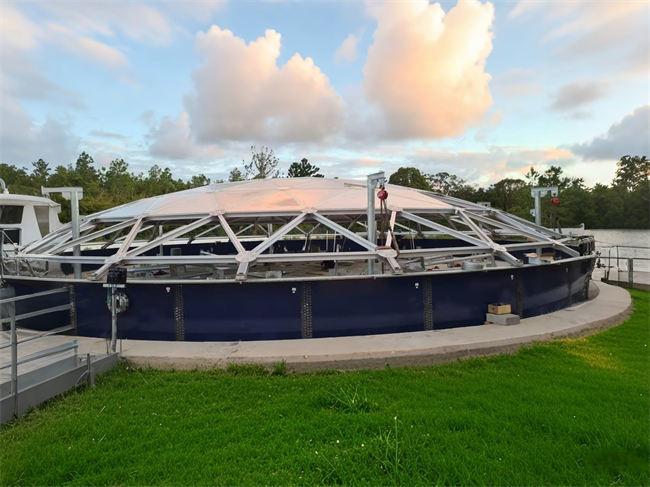

- Water Treatment Facilities: Prevent debris ingress while allowing ventilation.
| Parameter | Specification |
|---|---|
| Material | High-grade aluminum alloy (6061-T6) |
| Panel Thickness | 1-2 mm (customizable) |
| Diameter Range | 10 m to 60 m |
| Wind Resistance | Up to 150 mph |
| Temperature Tolerance | -40°C to 120°C (-40°F to 248°F) |
| Coating | Powder-coated or anodized for extra protection |
A: The airtight design minimizes vapor space, reducing hydrocarbon loss and emissions.
A: Yes! Aluminum's corrosion resistance makes it ideal for coastal and high-humidity regions.
A: A 30-meter dome can typically be installed in 2-3 weeks, depending on site conditions.
A: Absolutely. Custom designs allow integration of vents, walkways, or solar mounts.
A: Aluminum roofs have a higher upfront cost but save 40-50% in long-term maintenance.
- Steel: Prone to rust, heavier, and requires frequent painting.
- Concrete: Cracks over time and lacks flexibility.
- Fiberglass: Less durable under UV exposure and extreme temperatures.
Aluminum geodesic domes strike the perfect balance between performance and sustainability.
For industries prioritizing safety, efficiency, and environmental responsibility, aluminum geodesic dome roofs are the future of oil tank storage. Their modular design, coupled with unmatched durability, ensures compliance with global safety standards while cutting operational costs.
