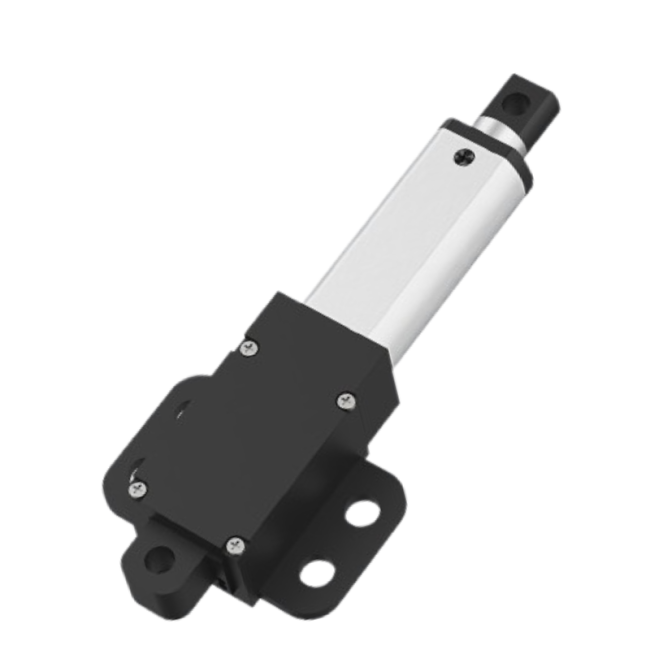

12VDC Micro Electric Linear Actuator 150N High Thrust Power 10mm-200mm Adjustable Stroke
This micro actuator is designed for precise and reliable linear motion in space-limited applications. It offers multiple speed-and-force combinations to suit different load requirements. Its aluminum inner tube, IP43 protection, and stable operation make it well-suited for light-duty automation, furniture, and small industrial applications.
| Model | LS-TB-N |
| Voltage | 6V / 12V / 24V DC |
| Duty cycle | 10% (Max.2Min ON/18Min OFF) |
| Max.Load Force | 150N |
| Cycle life | ≥20000 cycling times |
| Stroke | 10mm- 200 mm |
| Working temperature | 0°C ~ +40°C |
| IP rating | IP43 |
| Limit switches | Built-in |
| Materials | Aluminum , Plastics |
- Compact & Space-Saving Design
- Reliable Self-Locking Performance
- Stable & Durable Construction
- Multiple Speed & Load Options
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. For bulk orders, the standard lead time is approximately two weeks. The exact timeline is contingent on raw material availability.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
