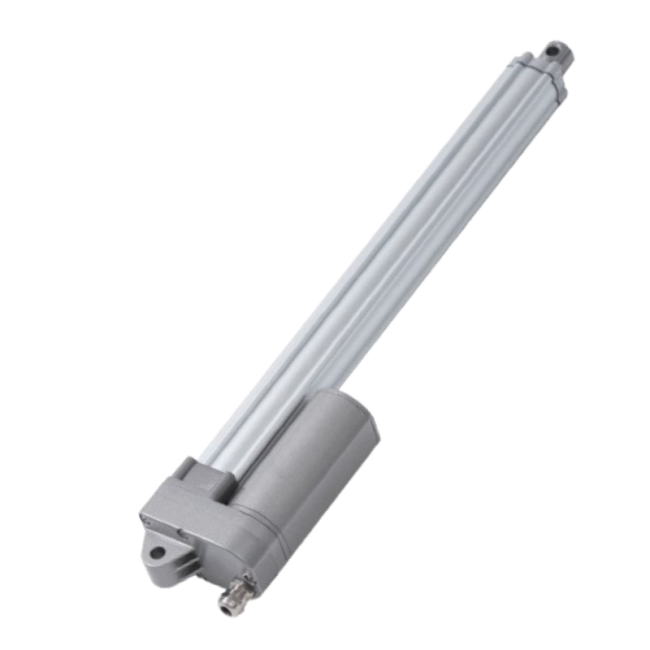

440 Lbs 24VDC Linear Actuator IP66 Waterproof Linear Actuator Industrial
This industrial-grade linear actuator is specifically engineered for reliable performance in extreme cold environments, maintaining a powerful 200kg lift capacity. With its IP66 waterproof rating, it provides a rugged, maintenance-free solution for outdoor automation, agricultural machinery, and cold-storage applications.
*This electric actuator is a customizable product. Please share your requirements with us, and we will recommend the most suitable model according to your needs
| Model | LS-PAT-908 |
| Voltage | 12V DC / 24V / 36V / 48V DC |
| Spindle Type | ACME Screw |
|
Max. Load Force |
2000N |
| Max. Speed at Full Load |
4mm/s (2000N) |
| Max. Speet at Free-load |
55mm/s (200N) |
| Stroke | 50mm - 1000mm |
| Limit Switch | Built in |
| Signal Output(Optional) | Hall Sensors |
|
Retracted Length |
≧ Stroke +108mm |
| IP Rating | IP66 |
| Operation Temperature | -40℃ - +65℃ |
| Operations | Electrical |
| Warranty | 18 months |
| Duty cycle | 25% |
- Internal components and lubricants are optimized to prevent freezing and maintain smooth motion in sub-zero temperatures
- Built with a reinforced drive system to handle light-duty industrial loads without sacrificing speed or precision
- Complete protection against dust ingress and water jets, making it ideal for exposed outdoor use
Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance testing.
Q: Is the product ready for dispatch?
A: No. We customize the actuator per your requirements, leading time is usually 2 weeks.
Q: Do you provide after-sales service?
A: Yes. We offer technical support and prompt after-sales service. Please feel free to contact us if you have any questions.
Q: What payment methods do you accept?
A: We accept bank TT, L/C, and PayPal
