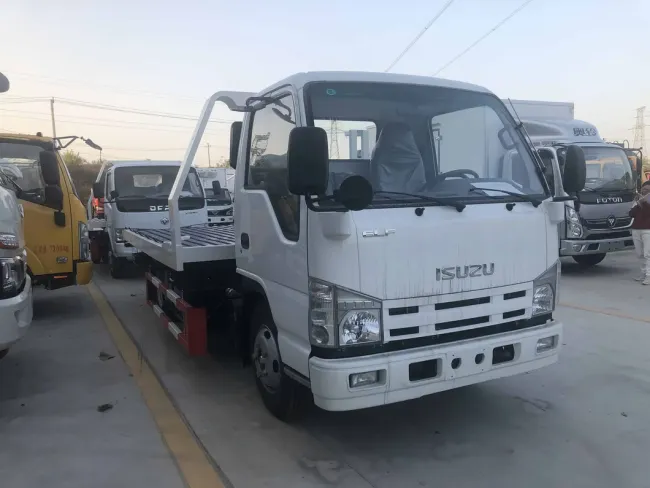

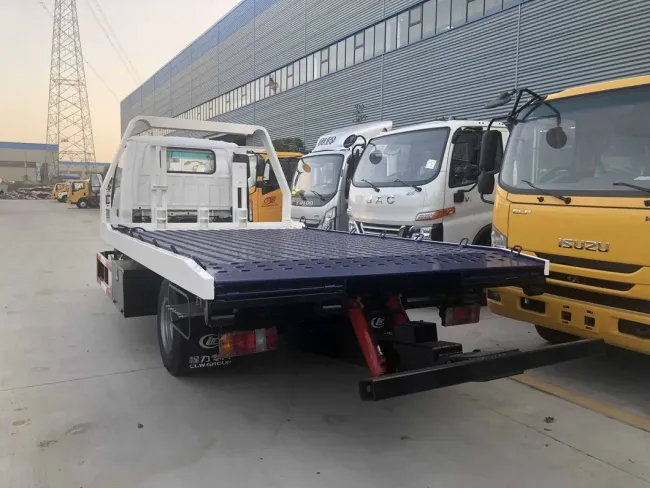

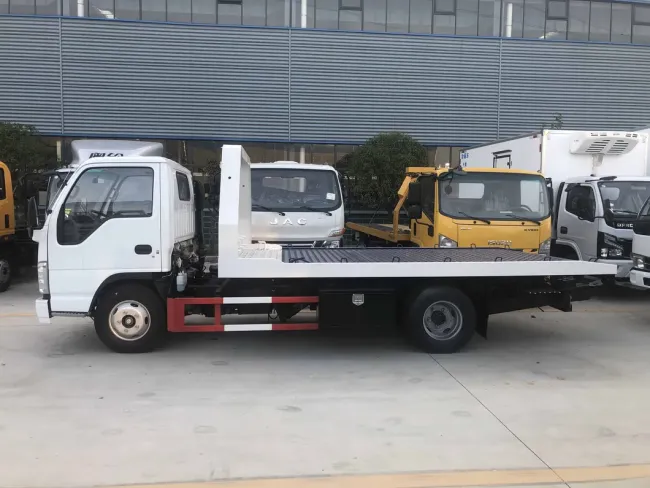

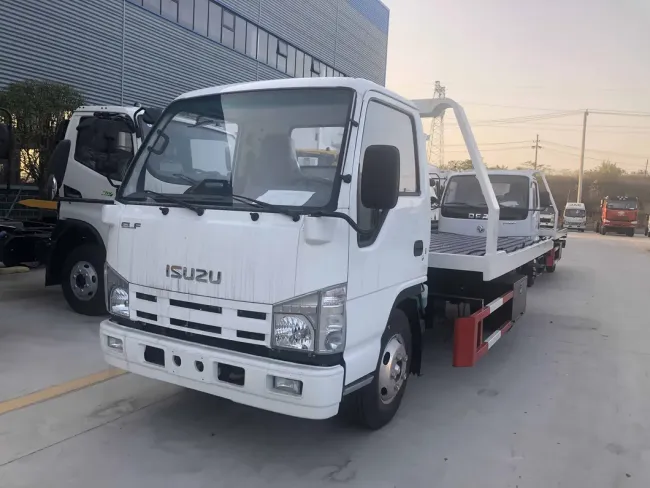

4tons 5tons 6tons 8tons Recovery Tow Truck , Wrecker Body And Truck 130HP
Product Description:

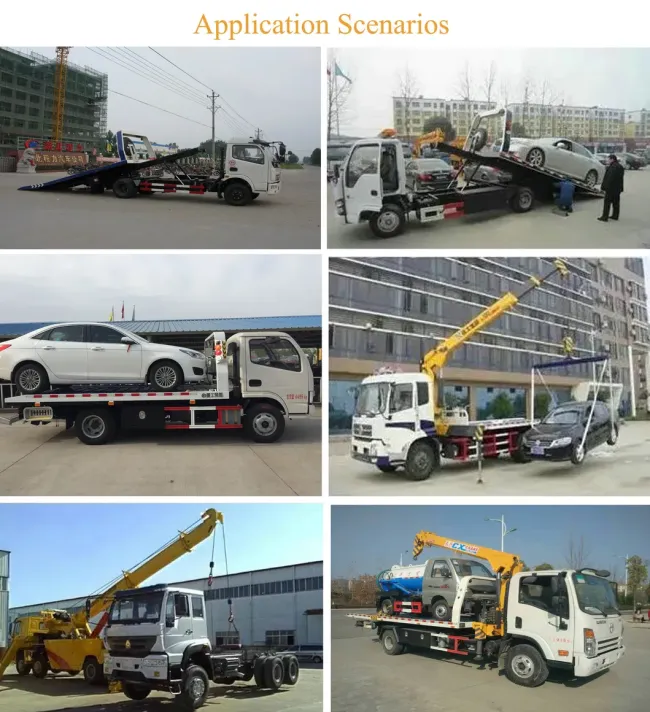

1. Purpose of 6ton flatbed tow truc: wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 6ton flatbed tow truc:howo,Dongfeng,JAC,JMC,Foton,Shacman...
3. Spare parts of 6ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of 6ton flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
5. The customers can choose to install the crane.
| General Technical Parameters | |||
| Overall Dimension | 9440x2480x2760 (mm) | ||
| Gross Vehicle Weight | 12495kg | ||
| Curb Weight | 8000kg | ||
| Chassis Specification | |||
| Chassis Brand | I-SUZU | |
| Cabin | Single row, Left Hand Driving | ||
| Model | 4HK1-TC51, 4 Cylinders | |
| Power | 190HP | ||
| Emission Standard | EURO V | ||
| Displacement | 4.5L | ||
| Fuel Type | Diesel | ||
| Gearbox | 6 Forward & 1 Reverse Gear | ||
| Front and Rear Axle Load | 4T/7T | ||
| Wheel Base | 4700(mm) | ||
| Overhang( Front/Rear) | 1015/2450(mm) | ||
| Angle(Approach/departure) | 24/9(°) | ||
| Brake System | Air Brake | ||
| Steering Gear | Power Assistant | ||
| Tire | 235/75R17.5, 6 Pieces with 1 Spare Tire | ||
| Maximum Speed | 110(km/h) | ||
| Superstructure | |||
| Dimensions | 6200x2450 (mm) | |
| Max. Loading Weight | 6000(kg) | ||
| Operating Stroke | 3300 (mm) | ||
| Min. Angle of Slope | 8(°) | ||
| Platform Height from the Ground | 1070(mm) | ||
| Quantity | 1pc | |
| Winch Rating Pulling Capacity | 10000 (kg) | ||
| Length of Steel Cable | 25 (m) | ||
| Rating Under-Pulling Capacity | 6000 (kg) | |
| Rating Under-Hoisting Capacity | 2000 (kg) | ||
| Fully Extended Max Under-Hoisting Capacity | 1600 (kg) | ||
| Max Under-Hoist Useful Length | 1640 (mm) | ||

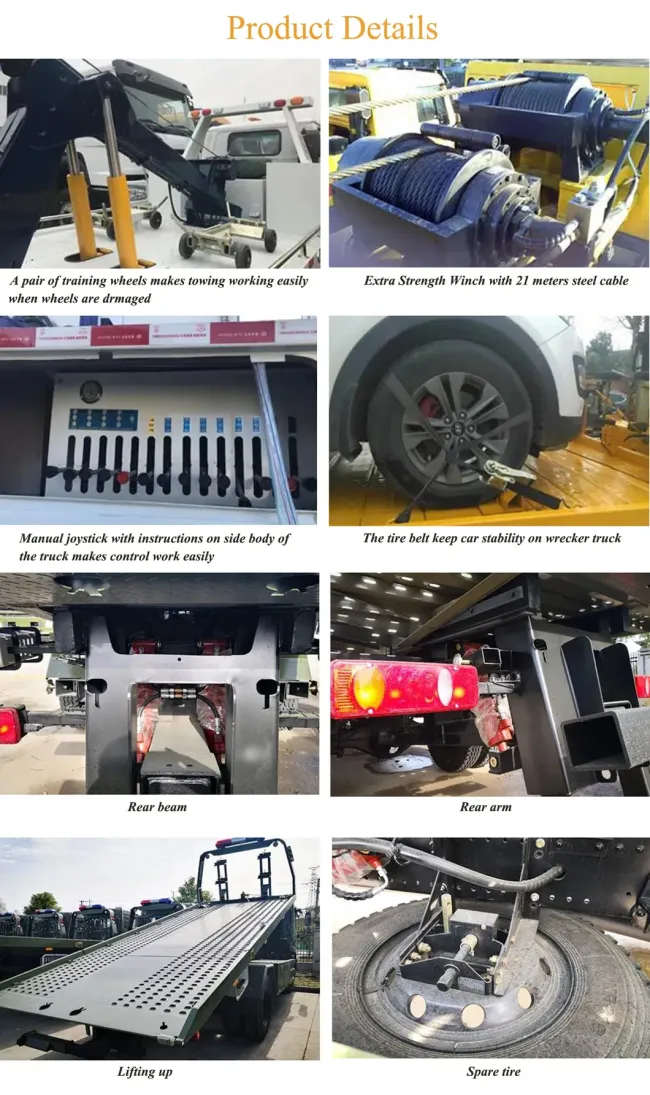

| 1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Can Tow 2 Cars | ||
