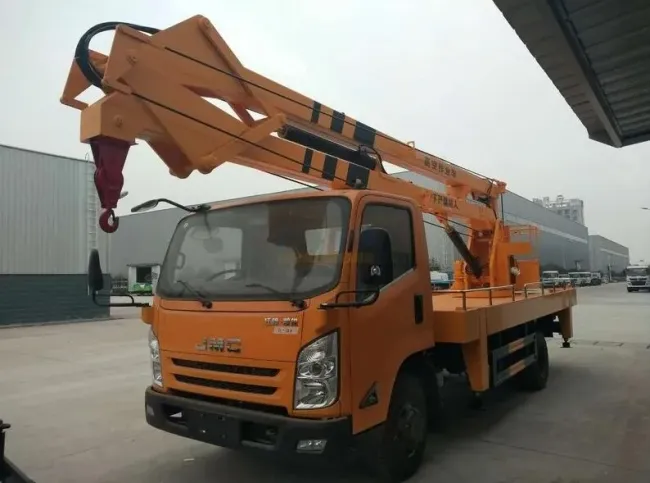

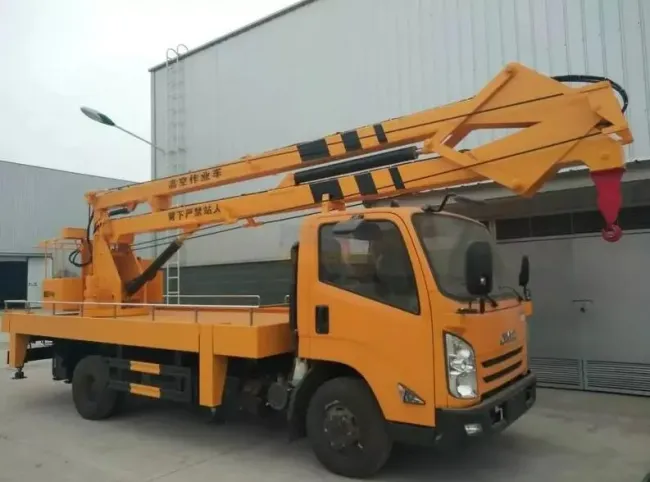

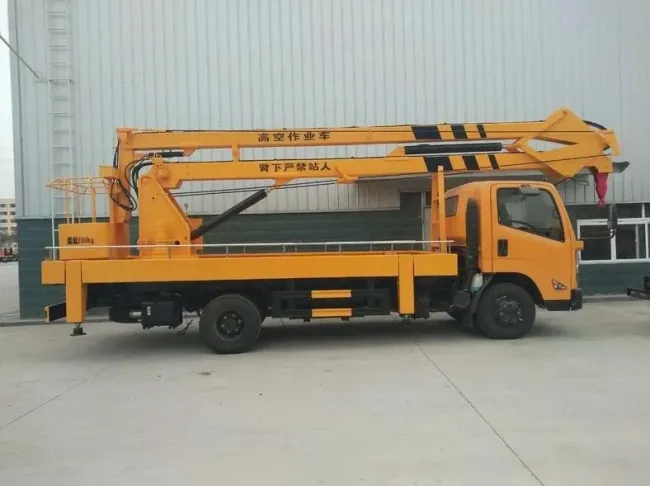

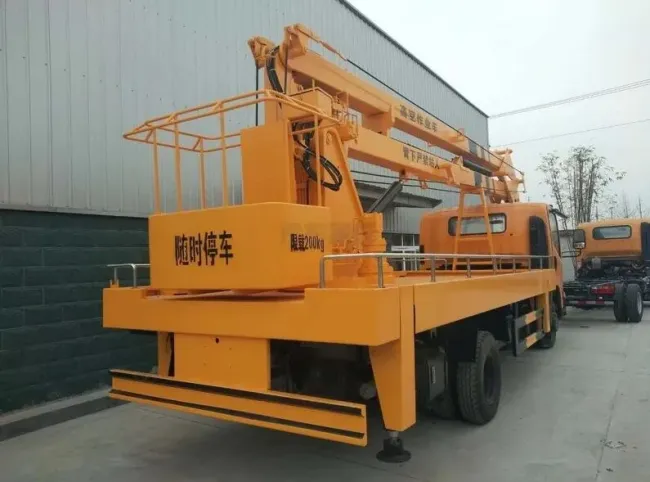

Jmc 4X2 18m 20m Lift Platform Truck , Aerial Bucket Lift Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30 Days
Brand:
CLW
Product Description
Product Description
Description:

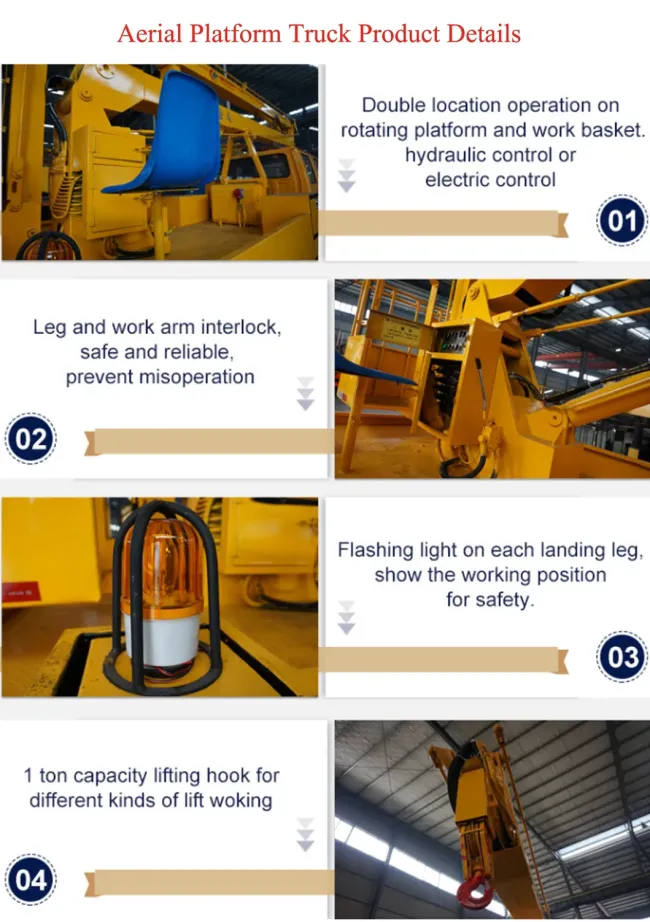

- Electronical controlled Lifting Arm with Doulbe Side Balance Vavle.
- Four Hydraulic Cylinders Control Leg to ensure the Truck Balance.
- 360 degree Rotation Arms.
- Arm and H leg Automatic Locking System to secure safety handling.
| Aeria lPlatform JMC (14-16M) | ||
|
General |
Vehicle Brand | CLW |
| Chassis Brand | JMC | |
| Overall Dimension | 7480x2150x3100mm | |
| GWW/Kerb Weight | 4,490kg/13,850kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
|
Engine |
Fuel Type: | Diesel |
| Engine Brand | JAC engine, HFC4DA | |
| Power | 92Ps(68KW) | |
| Displacement | 2771ml | |
| Emission Standard | EuroII, EuroII or Euro IV | |
|
Chassis |
Drive Type | 4X2,left hand drive |
| Transmission | 5-forward gears& 1reverse | |
| Wheelbase/No.of axle | 3360mm/2 | |
| Tyre Specification | 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95km/h | |
| Paint | Metallicpaint | |
|
Superstructure |
Cage Rated Capacity | 200kg |
| Working Height | 14-16M | |
| Outriggers | 4pcs,H-type;Hydraulically extend and retract | |
| Slewing | 360°continuous rotation with base turntable | |
| Control | Control both on the ground and in the cage | |
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. |
||
| Emergency stop switches at base and operator'scage. | ||
| Optional | Insulated cage;Cargobox;Hoist hook with cables can be equipped fo rthe function of a crane. |
|
