Sinotruk HOWO Telescopic Boom Truck Mounted Crane 5 Ton For Construction Material Transportation
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description

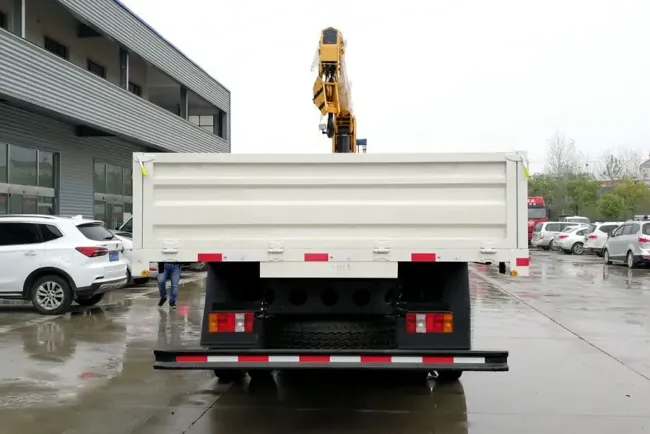

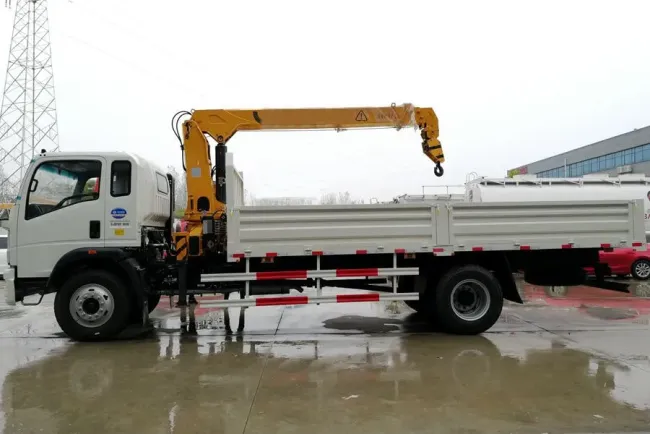

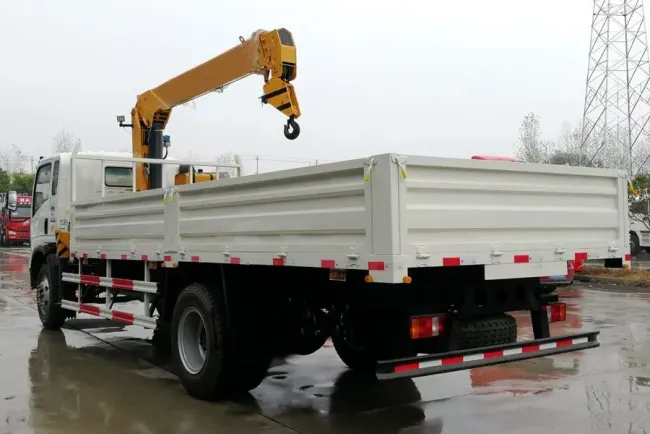

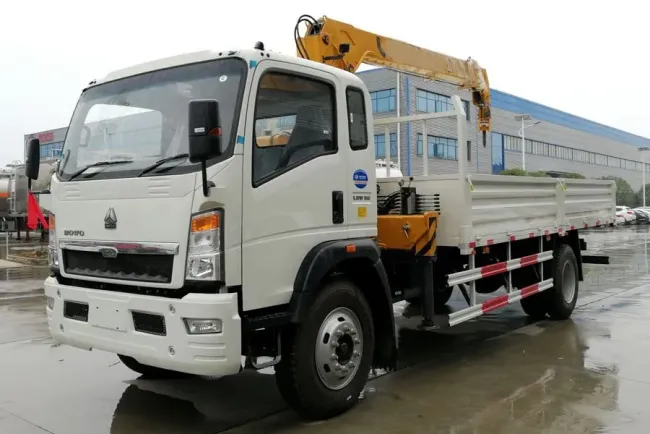

Sinotruk HOWO 5tons Truck Mounted Telescopic Boom Crane for Construction Material Transportation
Product Description:
- Crane Brand of truck mounted straight arm crane: CLW, PALFINGER, Other Chinese Brand
- Heavy Duty Cargo box.
- H Shape Hydraulic front & Rear Leg for safety.
- Folded Arm & Telescopic Straight Arm Crane for option.
- Crane capacity of truck mounted straight arm crane:2ton,2.5ton,3.2ton,4ton,5ton,6.3ton,8ton,10ton,12ton,
- 14ton,16ton,20ton,25ton
| Chassis Specification | ||
| Item No. | Parameters | |
| Chassis Brand | HOWO | |
| Overall Dimension | 8215X2500X3850mm | |
| Gross Vehicle Weight | 15795 kg | |
| Curb Weight | 8450 kg | |
| Loading Weight | 5805 Kg | |
| Front/rear axle loading capacity | 5000/7200kg | |
| Wheel Base | 4500 mm | |
| Cabin | Single, Left Hand Driving, 2 Passenger Allowed | |
| Engine | Type | Diesel Engine |
| Engine horsepower | 168HP EURO II | |
| Gearbox | Manual , 6 Forward & 1 Reverse Gear | |
| Brake System | Air Brake | |
| Steering Gear | Power Assistant | |
| Tire | 9.00-20, 6 Pieces with 1 Spare | |
| Max Driving Speed | 90 km/h | |
| Cargo compartment | |
| Material | Q235 |
| Dimension | 5070X2400X600mm |
| Thickness | 3mm for side /4 mm for the bottom |

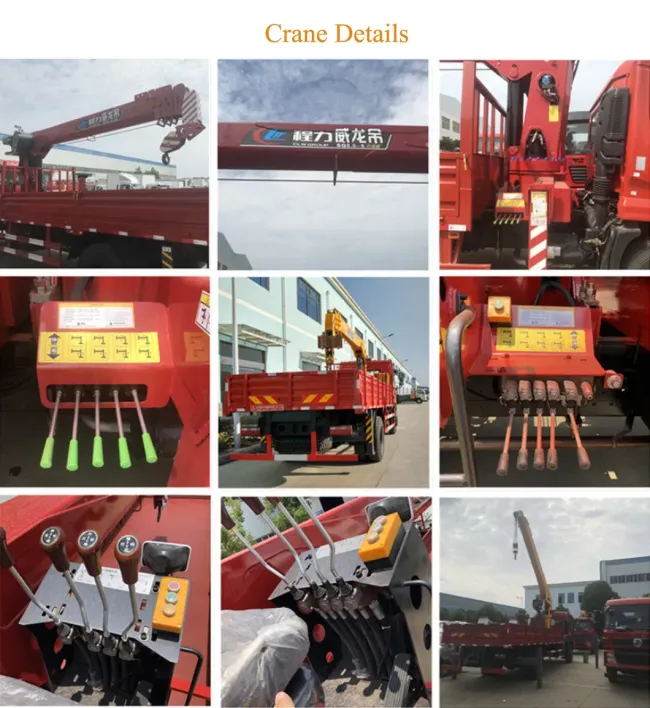

| Technical parameter of crane | |
| Crane Model | 5 Ton 3 Arms Telescopic Boom Crane |
| Crane Weight | 2120 kg |
| Max. Lifting capacity | 5000 kg |
| Max lifting height | 12 M |
| Working radius | 8.6 M |
| Outrigger span | 2280-5100mm |
| Rotation angle | 360°All rotation |
| Optional | 1. Seat 2. Hydraulic Lift system 3. Landing Leg |
| Remarks | 1. Color is optional 2.Customized LOGO painting as per customer request |
Products Catalog:
- LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
- Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
- Truck with crane / Truck mounted crane
- Dump Truck / Tipper Truck/Side Tipper/End Tipper
- Fire Fighting Truck / Fire Truck / Fire Vehicle
- Concrete Mixer Truck
- Van truck /Refrigerated truck
- Fecal suction truck / Sewage suction truck,
- Cement Powder Tank truck/ Bulk cement truck
- High-altitude operation truck,
- Self-loading garbage truck, garbage compactor truck, sealed garbage truck
- Tractor
- High Pressure Cleaning Truck
- Sweeper Truck
- Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
