Dongfeng 4*2 Drive Refrigerator Truck 4ton 5ton 6ton Diesel Fuel
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30days After Receive The Deposit
Brand:
CLW
Product Description

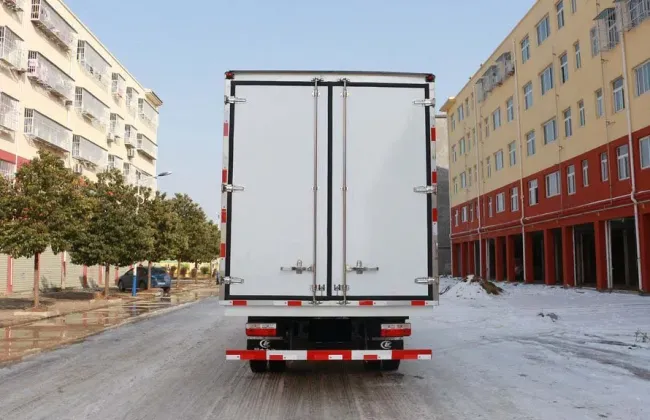

Dongfeng 4*2 Drive 4ton/5ton/6ton Refrigerator Truck
Products Catalog:
- LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
- Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
- Truck with crane / Truck mounted crane
- Dump Truck / Tipper Truck/Side Tipper/End Tipper
- Fire Fighting Truck / Fire Truck / Fire Vehicle
- Concrete Mixer Truck
- Van truck /Refrigerated truck
- Fecal suction truck / Sewage suction truck
- Cement Powder Tank truck/ Bulk cement truck
- High-altitude operation truck
- Self-loading garbage truck, garbage compactor truck, sealed garbage truck
- Tractor
- High Pressure Cleaning Truck
- Sweeper Truck
- Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Description:
- Strong power, super load capacity. We can provide trucks with a load capacity of up to 40 tons.
- Warranty: One year for the engine, gear box, and axles.
- Rear Hydraulic Lifting Platform can carry 1500 kg.
- Technical supporting and modification according to customers' requirements are available.
Technical Specifications:
| Condition | New condition/left hand drive/4x2 | ||
|
Chassis |
Brand | Dongfeng | |
| Curb weight(kg) | 4500 kg | ||
| Wheelbase(mm) | 3800 mm | ||
| Dimensions(mm) | 7010*2330*3200 mm | ||
| Front/Rear axle loading(kg) | 2500/6000 kg | ||
| Front/Rear overhang(mm) | 1120/2355 mm | ||
| Wheel track (front/rear) (mm) | 1685/1615 mm | ||
| Approach/Departure angle(°) | 22/11 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brake | Air brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 6pcs with one spare tire | |
| Specifications | 7.50R16 | ||
| Transmission | Manual type, 6 Forwards and 1 reverse | ||
| Cab | Single row seat, It can accommodate three people, with ABS | ||
|
Engine |
Model | CY4SK251 | |
| Fuel type | Diesel | ||
| Displacement(ml) | 3856 ml | ||
| Power(kw) | 115 kw | ||
| Horsepower(HP) | 156 HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 5 | ||
| Upper | |||
|
Box |
Size(mm) | 4800*2100*2100 mm | |
| Volume(m3) | 20.0 CBM | ||
| Max. Loading weight(tons) | 5tons-8tons | ||
| Material | Roofing iron | ||
|
Rear hydraulic lifting system |
Control model | Hydraulic control | |
| Control panel | Close to the rear door | ||
| Panel material | Carbon Steel | ||
| Size(width * height) | 2100*1800mm | ||
| Max. Loading capacity(kg) | 1500 kg | ||
|
Remarks |
Color is optional Logo design as per customer needs |
||
