Shacman 6X4 15ton 20ton Heavy Duty Cargo Truck With Rear Lifting Platform
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30days After Receive The Deposit
Brand:
CLW
Product Description

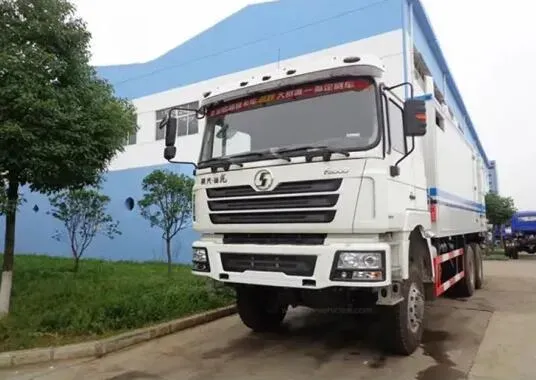

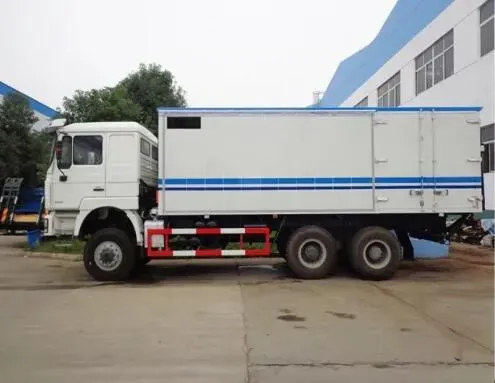

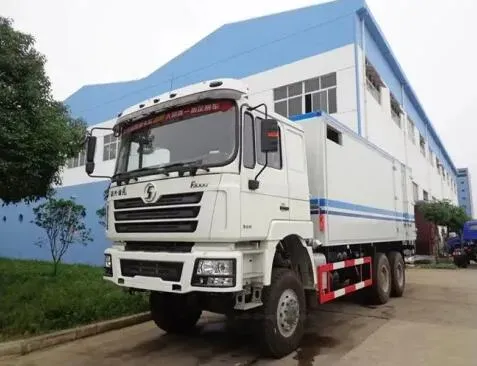

Shacman 6x4 15ton 20ton Heavy Duty Cargo Truck with Rear Lifting Platform
Description:
1. Strong power, super load capacity. We can provide trucks with a load capacity of up to 40 tons.
2. Warranty: One year for the engine, gear box, and axles.

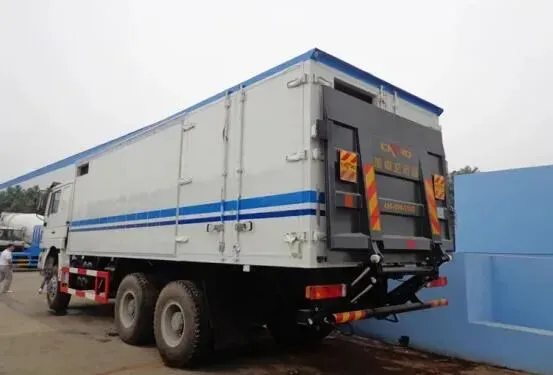

3. Rear Hydraulic Lifting Platform can carry 1500 kg.
4. Technical supporting and modification according to customers' requirements are available.
| Condition | New condition/left hand drive/6x4 | ||
|
Chassis |
Brand | Shacman | |
| Curb weight(kg) | 11380kg | ||
| Wheelbase(mm) | 4375+1400mm | ||
| Dimensions(mm) | 10100*2490*3720 mm | ||
| Front/Rear axle loading(kg) | 7500/13000 kg | ||
| Front/Rear overhang(mm) | 2036/1860 mm | ||
| Approach/Departure angle(°) | 18/11 | ||
| Max. driving speed(km/h) | 99 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brake | Air brake | ||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 10pcs with one spare tire | |
| Specifications | 12.00R20 | ||
| Transmission | Manual type, 9 Forwards and 1 reverse | ||
| Cab | Single row seat | ||
|
Engine |
Fuel type | Diesel | |
| Displacement(ml) | 9726 ml | ||
| Horsepower(HP) | 300 HP | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 4 | ||
| Upper | |||
|
Box |
Size(mm) | 7400*2326*2700 mm | |
| Volume(m3) | 46.0 CBM | ||
| Max. Loading weight(tons) | 15tons-20tons | ||
| Material | Roofing iron | ||
|
Rear hydraulic lifting system |
Control model | Hydraulic control | |
| Control panel | Close to the rear door | ||
| Panel material | Carbon Steel | ||
| Size(width * height) | 2300*1800mm | ||
| Max. Loading capacity(kg) | 1500 kg | ||
|
Remarks |
|
||
