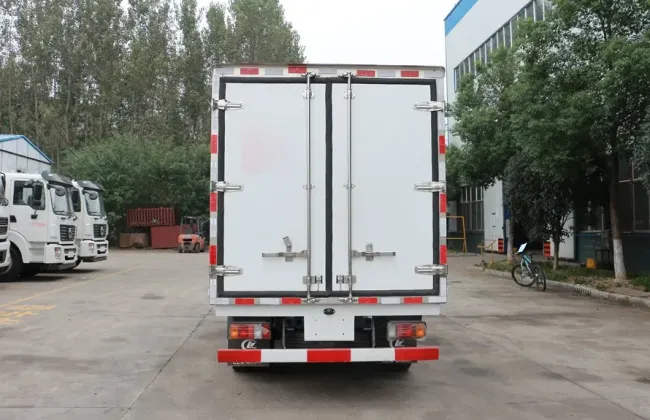

5 Tons Refrigerated Box Truck 120HP For Fish Meat Transport Freezer Truck
5 Tons Chinese Famous Brand Refrigerator Truck Fish Meat Transport Freezer Truck
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
Product Description
- 1. Purpose of the truck : transport frozen fish, meat, fresh vegetables and vaccinum, etc.
- 2. Main parts of the truck: Refrigerating unit and control system.
- 3. Features of the truck: International chassis brands and refrigerating unit brands for optional.
Product Specification
| General Technical Parameters | ||||
| Overall Dimension | 6000×2500×3300(mm) | Gross Vehicle Weight | 9000(Kg) | |
| Curb Weight | 3900(Kg) | Loading Weight | 5000(Kg) | |
| Chassis Specification | ||||
| Chassis Brand | Chinese famous brand | ||
| Cabin | Single, Left Hand Driving, with A/C | |||
| Model | 4KH1-TCG4O, 4 Cylinders | ||
| Power | 88KW/120HP | |||
| Emission standard | EURO IV | |||
| Displacement | 2.999L | |||
| Fuel type | Diesel | |||
| Gearbox | MSB, 5 Forward & 1 Reverse Gear | |||
| Front and Rear Axle load | 2.5T/4.8T | |||
| Wheel base | 3360(mm) | |||
| Overhang( Front/Rear) | 1130/1505(mm) | |||
| Angle(Approach/departure) | 20/16(°) | |||
| Brake System | Oil brake | |||
| Steering Gear | Power Assistant | |||
| Tire | 650-16, 6 Pieces with 1 Spare Tire | |||
| Maximum speed | 105(km/h) | |||
| Superstructure | ||||
| Box size | 4100×2300×2100(mm) | ||
| Material | Fiberglass | |||
| Insulating Layer | 8cm Polyurethane Foam | |||
| Brand | THERMOKING | |||
| Truck refrigeration unit | Model | KV300 | ||
| Applicable temperature (ºC) | -18~0 | |||
| Part Optional: Ventilation slot Hook External power supply Side door | |||
