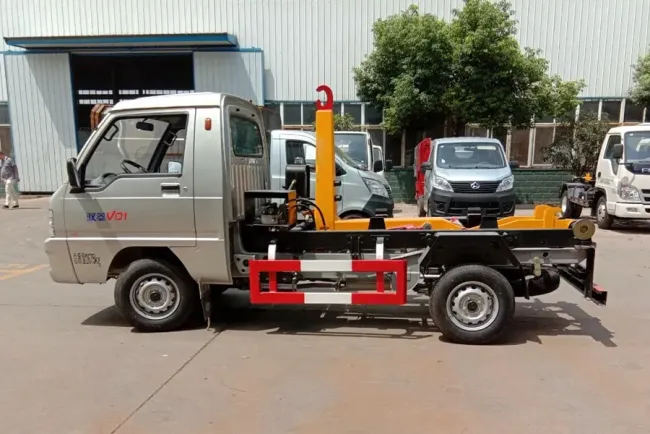

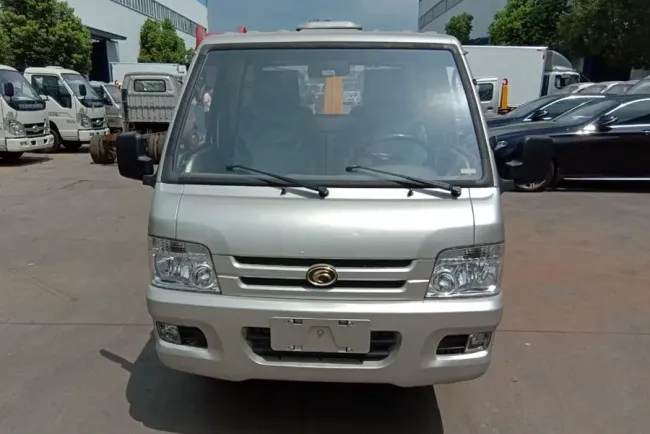

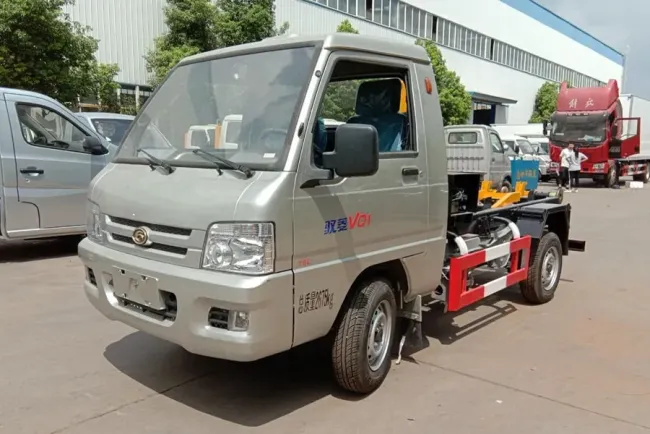

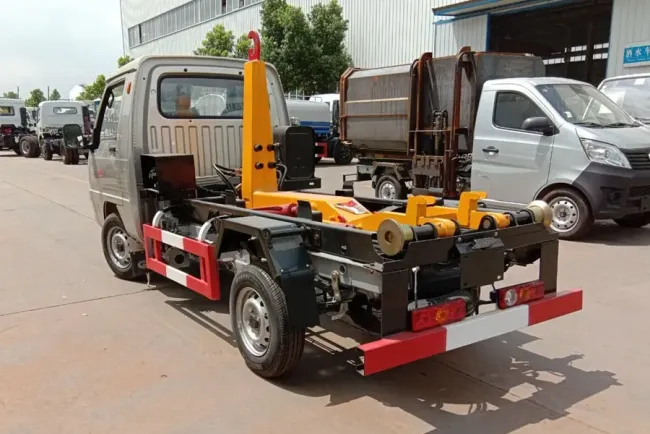

Foton 3cbm/3000liters Garbage Truck , Hook Lift Arm Type Garbage Transfer Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Foton 3CBM/3000Liters Hook-lift Arm Type Garbage Truck Garbage Removal Transfer Truck
Product Description
- Garbage Bin with different size options of waste collection truck: 2cbm to 18cbm.
- Hydraulic Control Loading & Unloading System.
- Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.
- High-tensile steel chains: imported hydraulic oil cylinder and sealing material.
- Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.
- Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Product Specification
| Parameter | Unit | Value |
|---|---|---|
| Overall Dimension(L*W*H) | mm | 4835*1870*2120 |
| Tank Cubage | m3 | 3 |
| Entrance Width | mm | 2000 |
| Loading Capacity | mt | 3-4 |
| Max Loading Mass | kg | 6000 |
| Gross Vehicle Weight | kg | 4495 |
| Compressing Ratio | ° | >=1:4 |
| Max Hydraulic Pressure | Mpa | 19.6 |
| Loading Cycle Time | s | <=30 |
| Discharging Time | s | <=45 |
| Max Torsion/Rev | N*m/r/m | 900/1400;925/1400;970/1400 |
| Engine Model | ISD245 50(OPTIONAL) | |
| Emission | Euro 3,4,5 | |
| Fuel Type | Diesel | |
| Max Driving Speed | Km/h | 90 |
| Chassis Model | Option:Dongfeng,Hino,Sinotruk,JAC,FAW,Foton... | |
| Wheel Base | mm | 2800 |
| Front/Rear Axle | mm | 1800/3500 |
| Curb Weight | kg | 2150 |
