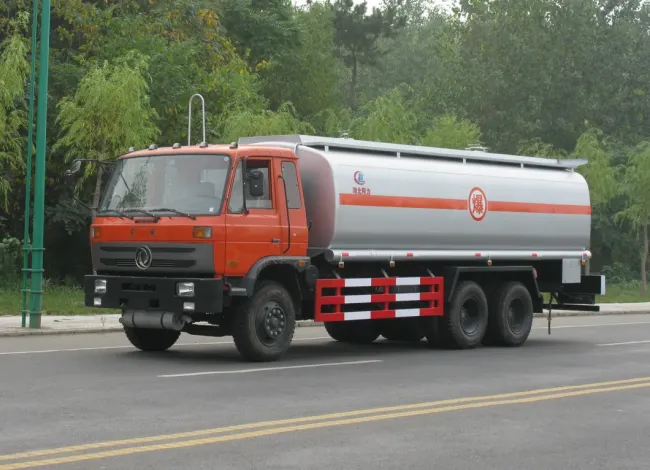

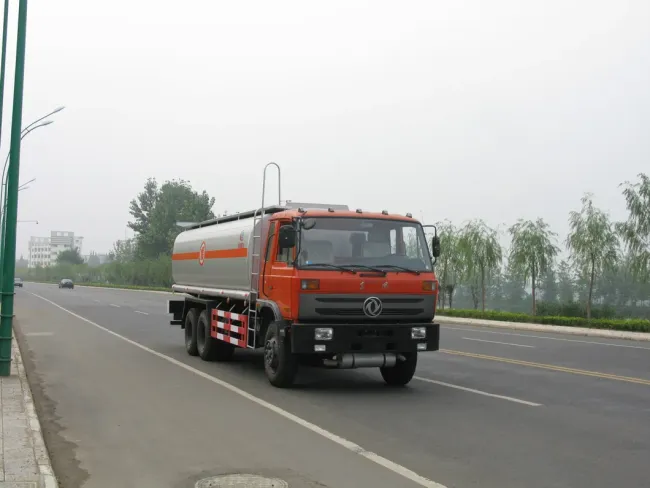

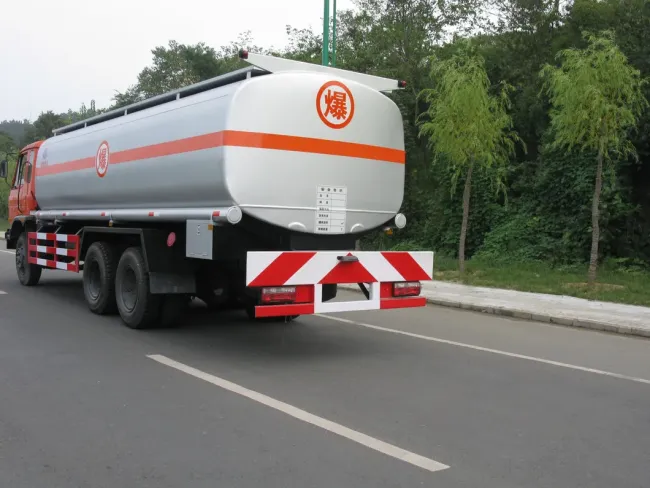

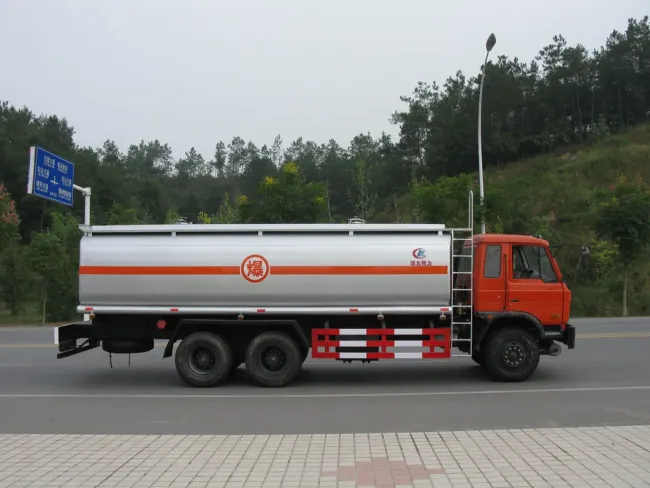

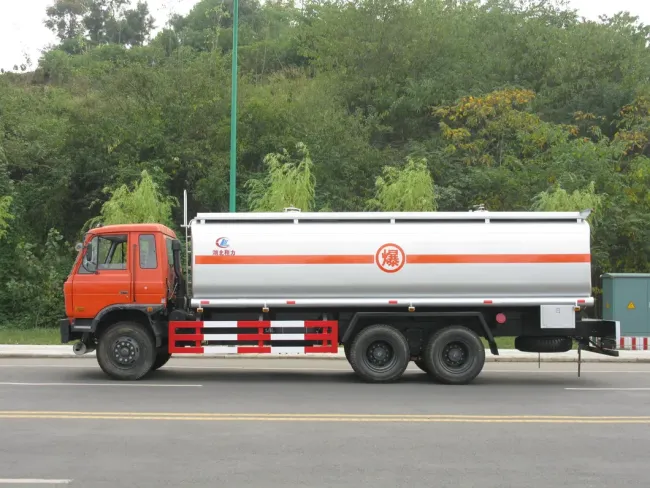

Dongfeng Fuel Tank Truck 6X6 Off Road 16m3-25m3 Fuel Tanker Truck

Name: Dongfeng Fuel Tank Truck 6X6 Off Road 16m3-25m3 Fuel Tanker Truck
Brand: Chengli Special Automobile Co.,Ltd

Price Negotiable

Price: 15000-35000 per unit

MOQ: 1

Delivery Time: 35 Days

Brand: CLW

Product Description

Description:

Tank material: Q235 (carbon steel) Q304 ( stainless steel) Q316 (stainless steel) 5454 Aluminum.
Good welding: tank body is adopted an advanced automatic vertical welding techniques and head arc butt welding technology, as well as the whole- steel forming a composite.
High safety: equip with active and passive emergency protection devices, to provide full closure remote manipulation of materials handing functions. Equip separators [Baffle] to prevent surging of liquid towards bulk head
Function: The tank body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid, caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
Oil punp: gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump, stainless steel pump are optional.
Tank shape: shape of tank body can be designed to square round, round,Heat insulation device such as heating pipes, insulation.
Refueling machine: the refueling machine we use are tax controled oiling machine with accurate figure of volume, sum of money,etc.
Optional: reading meter for outlet and inlet,self-discharge valve at rail or side of tank body, compartment quantity according to the demand.

Chassis Brand	Dongfeng
Drive Type	6×6
Engine	EQ6BT5.9
Cabin	Row and half
Transmission	6 forwards & 1 reverse)
Axle Load	3.7tons/2*4tons
Clutch	hydraulically operating with air assistance
Rim/ Tire	12.50R20, Radial tyre
Wheel base	3475+1250(mm)
Capacity of tank body	16-25m3
Thickness of tank body	5mm
Overall dimension	7760×2500×3150mm
The curb weight	7120(Kg)
Gross weight	10940 kg
Max. speed	95km/h
Maximum climbing grade	60%
Vertical obstacle height	700mm
Maximum wading depth	1m
Color	White, red, green, golden and so on.
