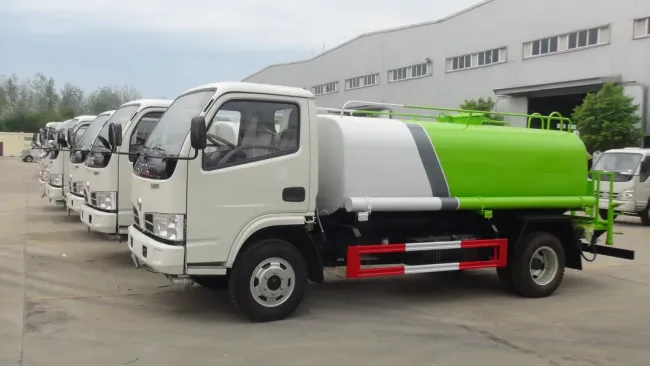

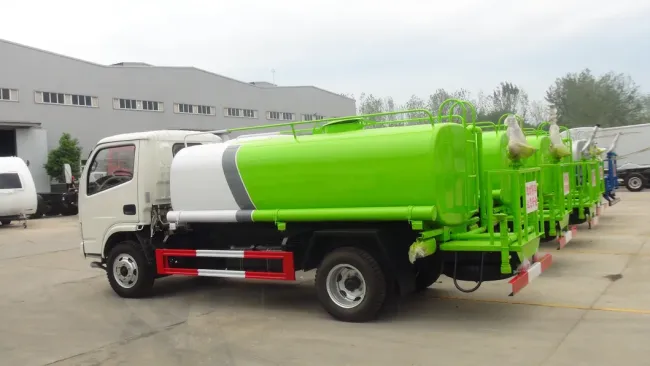

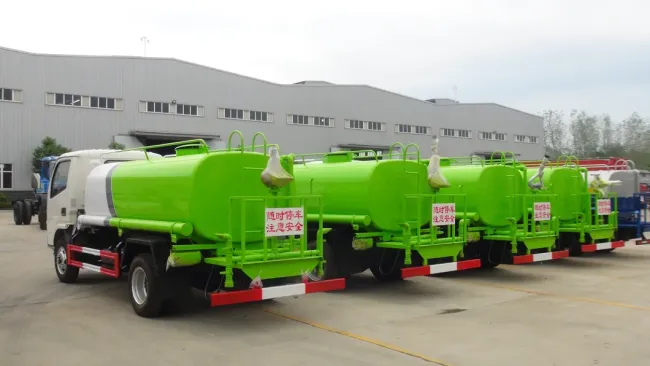

Dongfeng 4*2 3ton 4ton 5ton Water Tank Truck Water Sprinkler Spraying Road Cleaning Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Dongfeng 4*2 3ton/4ton/5ton water tank truck water sprinkler spraying road cleaning truck
- Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
- Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
- Sprinking Width of portable water truck :≥14M
- Rear working platform with water cannon range of portable water truck :≥28M
- Reliable and high quality water pump
Specifications of 11CBM water tank truck
| Condition | New/Left hand drive/4x2 | ||
|
Chassis |
Brand | Dongfeng | |
| Curb weight(kg) | 3360kg | ||
| Loading weight(kg) | 3870kg | ||
| Gross weight(kg) | 7360kg | ||
| Wheelbase(mm) | 3308mm | ||
| F/R suspension | 1140/1810(mm) | ||
| Dimensions(mm) | 6250*1900*2400(mm) | ||
| Front Loading Capacity (Ton) | 1.8 | ||
| Rear Loading Capacity (Ton) | 3.5 | ||
| Approach/Departure angle | 16/22(°) | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
| Brake system | Pneumatic | ||
| Steering Gear | Power assistant | ||
|
Tire |
Quantity | 6 pcs with one spare tire | |
| Specifications | 7.00-16 Nylon | ||
| Transmission | Manual type, 5 speed forwarder with 1 reverse | ||
| Cabin | Single row seat. Left hand drive. | ||
|
Engine |
|||
| Fuel type | Diesel | ||
| Power(kw) | 65 | ||
| Horsepower(HP) | 88 | ||
| Cylinder number | 4 | ||
| Emission standard | Euro 5 | ||
| Upper frame structure | |||
|
Water tank |
Capacity(cbm/tons) | 11/11 | |
| Tank Dimension(mm) | 3500*1700*1100 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||
| Water pump | China local brand | ||
| Suction Height | 7M | ||
| Function | 1, Front Side Rear Sprinkling width≥14m | ||
| 2, Water cannon range≥28m | |||
|
Remarks |
1. 1pc fire flow valve | ||
| 2. 2pcs water hose. | |||
| 3. 1pc fire joint | |||
| 4. Color is optional as customer's request | |||
