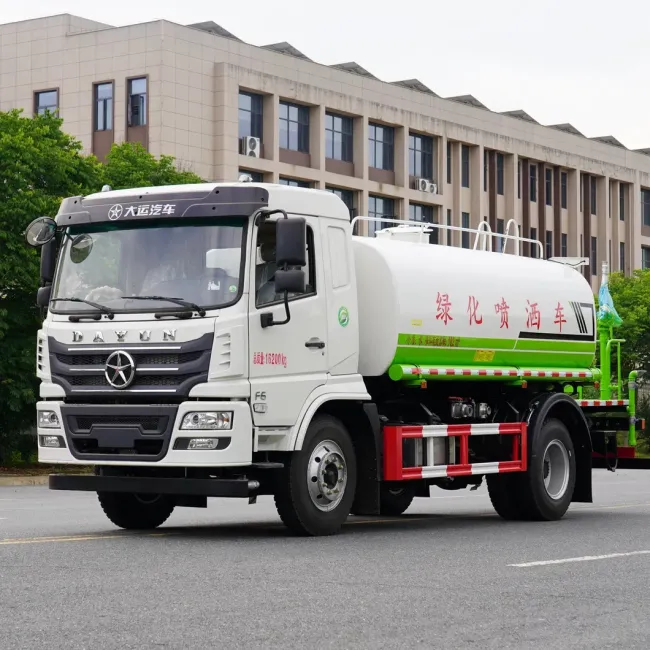

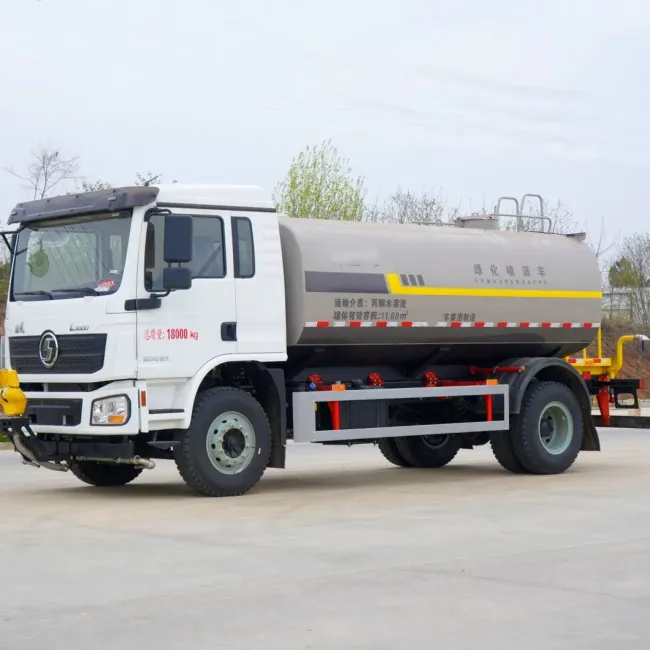

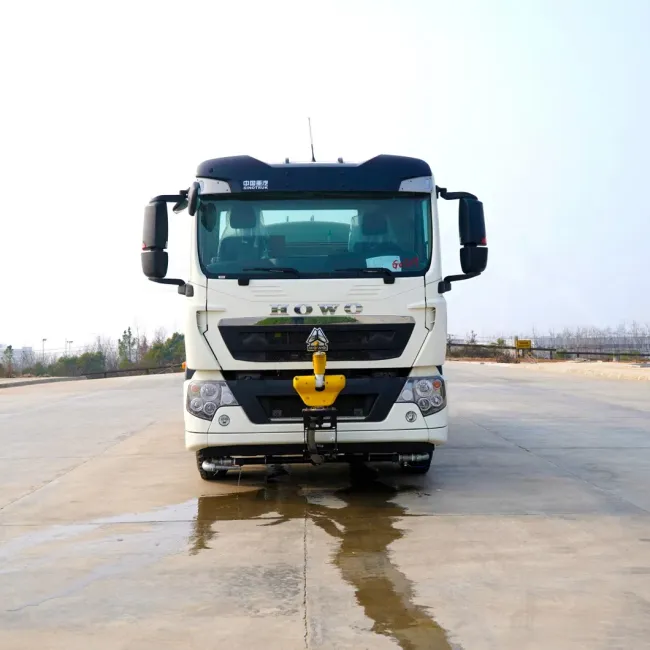

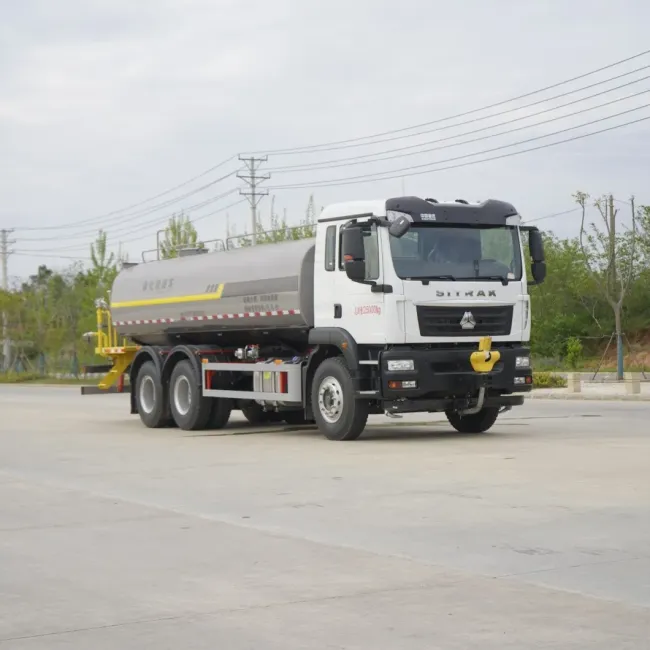

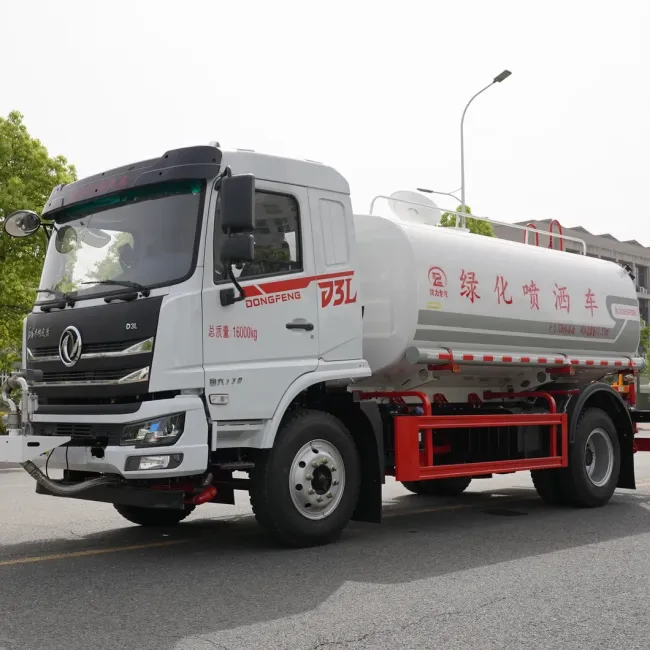

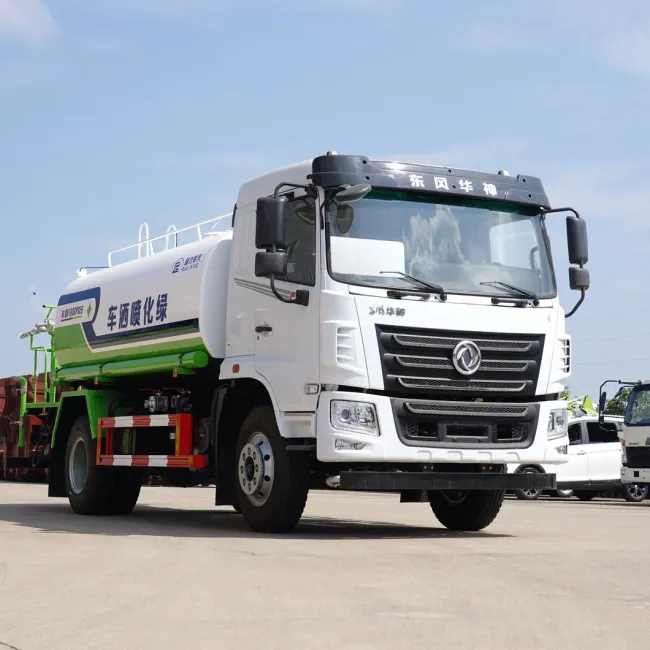

JAC HOWO Dongfeng Dayun3000L 5000liters 3ton 5ton Water Bowser Truck Water Tanker Drinking Water Delivery Transportation Sprinkler Tank Truck for Road Dust Cleaning
- Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,
- Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
- Sprinking Width of portable water truck :>14M
- Rear working platform with water cannon range of portable water truck :28M
- Reliable and high quality water pump
| Chassis parameters | ||||
| Condition | New condition/Left hand drive/4x2 | |||
|
Main details |
Brand | JAC | ||
| Curb weight(kg) | 3380 kg | |||
| Loading weight | 3850 kg | |||
| Wheelbase(mm) | 3950 mm | |||
| Dimensions(mm) | 6000*1900*2300 mm | |||
| Front/Rear Axle loading(kg) | 1800/3500kg | |||
| Wheel track (front/rear) (mm) | 1923/1865 mm | |||
| Max. driving speed(km/h) | 90 | |||
| Clutch | Reinforced diaphragm clutch | |||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels |
|||
| Auxiliary brake: engine exhaust valve brake | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance | |||
| Suspension | Front/rear leaf spring | |||
| Tire | Quantity | 6 pcs with one spare tire | ||
| Specifications | 7.00-16 Nylon | |||
| Transmission | Manual type, 5 Forwards and 1 reverse | |||
| Cabin | ISINgle row seat, tiltable, it can accommodate three people, with air conditioner | |||
|
Engine |
Brand | CHAOCHAI | ||
| Cylinder | 4 | |||
| Max power/Horsepower)KW/HP) | 85KW/116HP | |||
| Fuel type | Diesel | |||
| Emission standard | Euro 3 | |||
| Upper | |||
|
Water tank |
Capacity(cbm/tons) | 5/5 | |
| Tank Dimension(mm) | 3400*1600*1100 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||
| Water pump | China local brand | ||
| Suction Height | 7M | ||
| Function | 1, Front Side Rear Sprinkling width≥14m | ||
| 2, Water cannon range≥28m | |||
|
Remarks |
1. AM/FM radio | ||
| 2. 2pcs water hose. | |||
| 3. Color is optional | |||
HUBEI CHENGLI AUTOMOBILE Co., Ltd

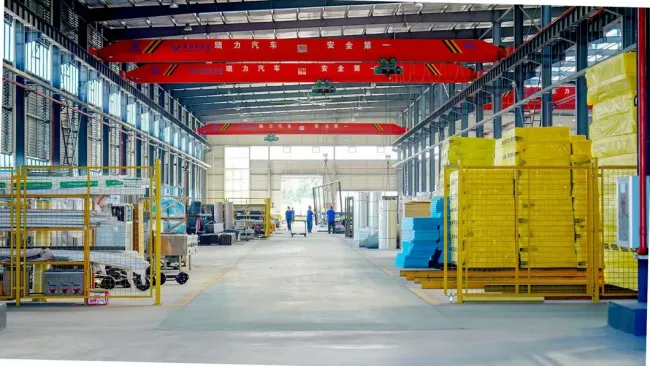

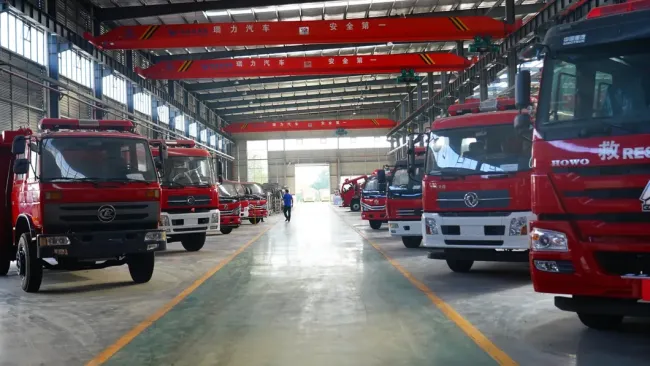

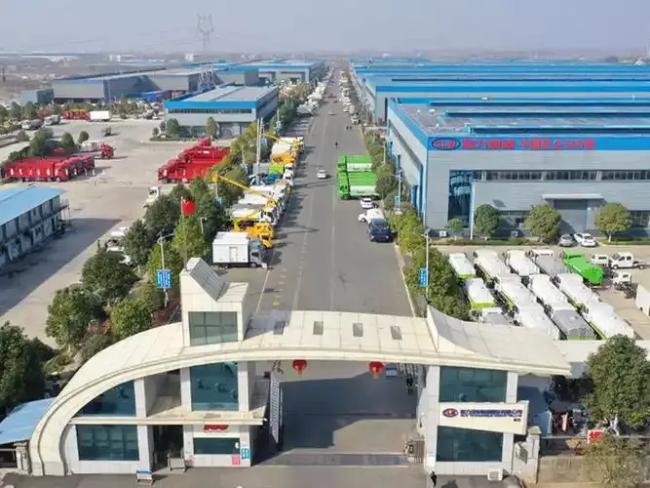

is a large-scale factory with diverse product lines including dump trucks, sewage suction trucks, aerial work platforms, crane trucks, wreckers, refrigerated trucks, road sweepers, fire trucks, and garbage trucks. The company possesses fully functional and well-equipped manufacturing workshops, spraying and electrophoresis facilities, powder coating workshops, and testing centers. With advanced production equipment, mature manufacturing processes, and an excellent technical team, we are a diversified automotive company integrating automotive technology research and development, vehicle manufacturing and modification, parts production, and sales. CHENGLI has obtained 14 utility model patents, 1 design patent, and 2 invention patents. We have perfect order processing flow and after-sales service. We provide both online and offline technical guidance and training. We can customize bodywork and develop new products according to customer needs.
CHENGLI have more than 200 products, the main products are three series: The fire fighting truck, power van truck, wrecking truck, personnel carrier, flood control vehicle, repair vehicle, crane truck, aerial work vehicle, ladder vehicle, etc.; Refrigerated vehicle, mobile stage truck, mobile dining truck, medical waste transfer vehicle, medical testing vehicle ambulance car, explosion-proof vehicle, livestock and poultry truck; Water sprinkler truck, dust suppression truck, garbage truck, sewage suction truck, food kitchen garbage truck, road sweeper truck, mobile compression station and so on.

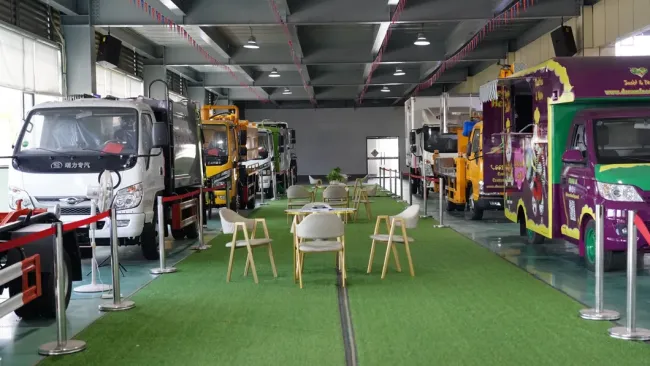

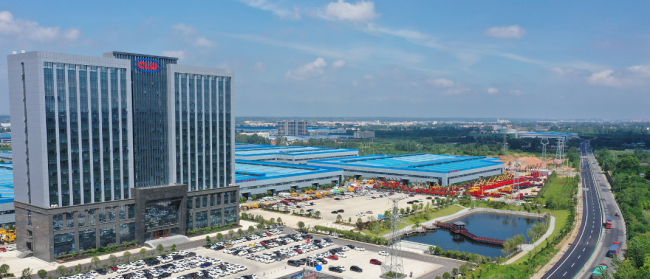

The first phase of the Emergency Industrial Park has a built floor area of more than 26, 000 square meters, of which the office area reaches more than 5, 000 square meters. Has more than 1000 employees, including more than 360 engineering and technical personnel, more than 200 sales team, with finished vehicle display area, fully functional supporting production workshop, E-coating workshop, testing center high-end production equipment, mature manufacturing process, excellent technical team, modern enterprise management system, which is a set of automotive technology research and development, automotive manufacturing modification parts production and sales in one of the diversified automobile company.
