Dongfeng D9 10-14ton Sanitation Water Bowser Truck / Dust Cleaner Water Cannon Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
30days
Brand:
CLW
Product Description
Dongfeng D9 10-14ton sanitation water bowser truck road cleaning street washing truck watering cart tank truck dust cleaner water cannon truck
Product Description
- Optional chassis brand: Dongfeng, Sinotruk, Foton, Faw, Shacaman,
- Water Tank Material: High Tension Steel Q235/Q345, stainless steel 304B for option.
- Reliable and high quality water pump.
- Optional for insulation layer which is suitable for warm water delivery.
Spefications:
| General Technical Parameters | |||
| Overall Dimension | 7700*2500*3200(mm) | ||
| Gross Vehicle Weight | 15995(Kg) | ||
| Curb Weight | 6660(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | Dongfeng | ||
| Drive model | 4*2 | ||
| Cabin | Single, Left Hand Driving | ||
| Number of Passengers | 3 (2 in cabin, 1 in working platform) | ||
|
Engine |
Model | ISB180 50, 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Power | 132KW/180HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 4730(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 4700(mm) | ||
| Front/Rear Axle Loading | 4500/9000(Kg) | ||
| Tire | 10.00R20, 6pcs + 1 spare tire | ||
| Max Driving Speed | 90(km/h) | ||
| Superstructure Specification | ||
|
Water Tanker |
Dimension | 4500*2200*1400(mm) |
| Material | Q235B carbon steel | |
| Tanker volume | 10000Liter | |
| Thickness of Tanker | 4mm | |
| Water Pump Material | carbon steel | |
| Vertical suction | 7m | |
| Sprinkling width | 15m | |
| Range of Water Gun | 30m | |
| Pump Flow | 20m³/h | |
| Range of Water Pump | 90m | |
| Other Configuration | High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc. | |
| Options | Caution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc. | |

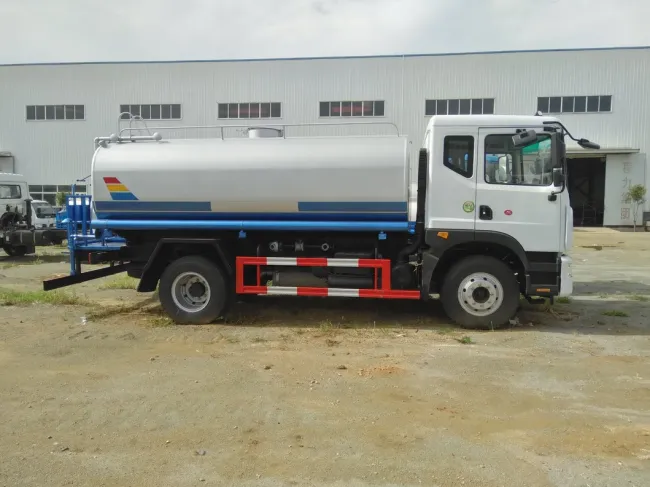

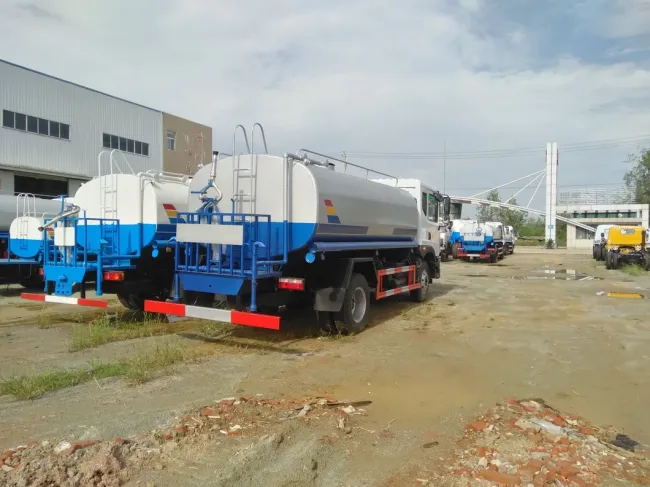

Reference Photos:
