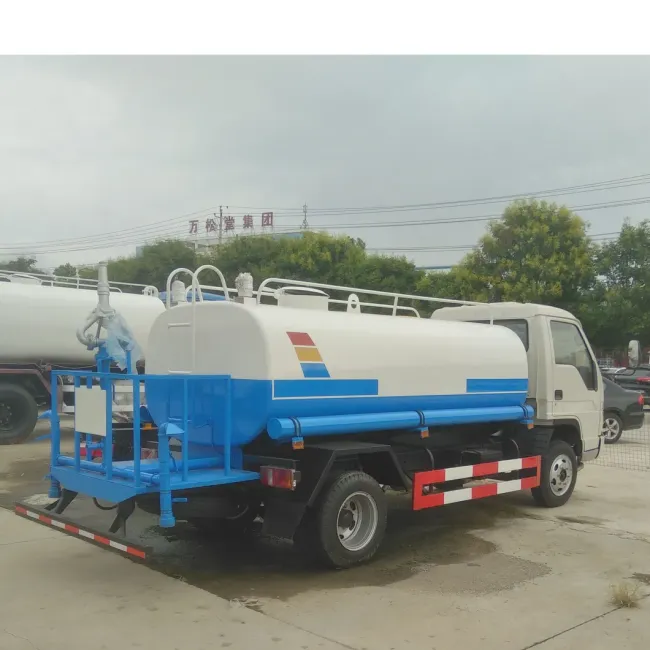

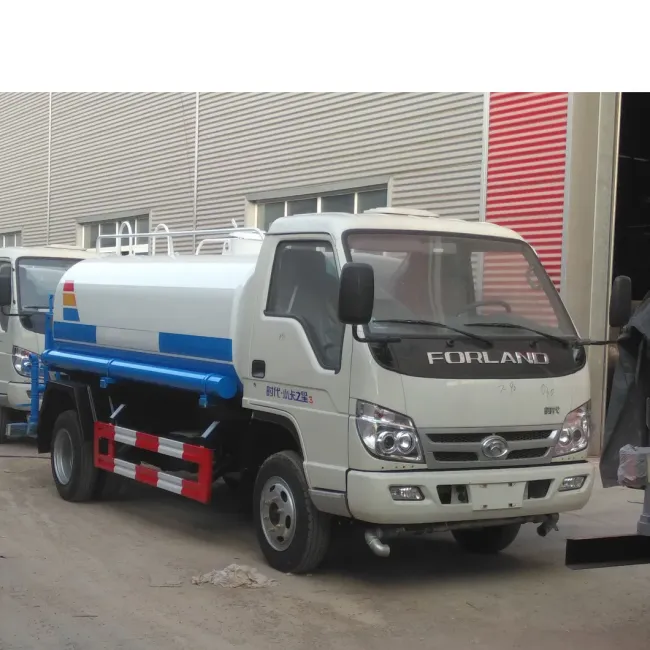

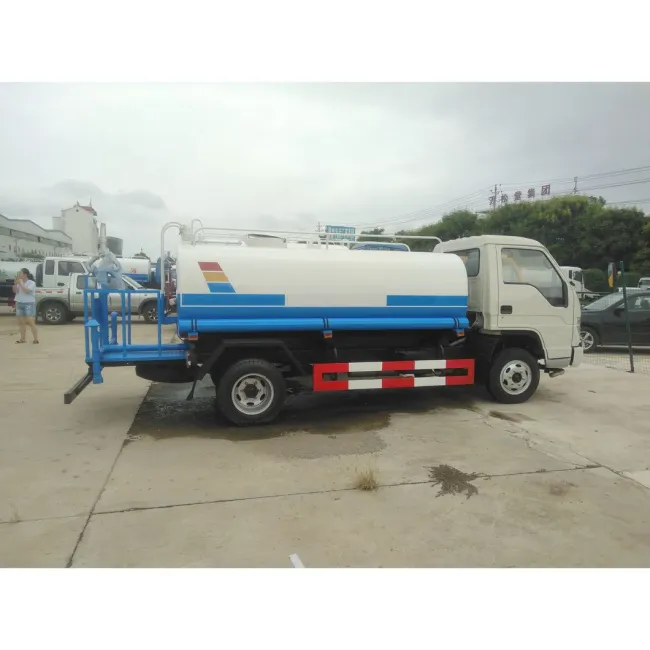

Forland 4X2 2ton 3ton 4ton Water Transportation Vehicle Spraying Drinking Water Bowser Trucks
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
35 Days
Brand:
CLW
Product Description
Forland 4X2 2ton/3ton/4ton Water Transportation Vehicle Water Bowser Sprinkler Truck Spraying Drinking Water Truck Watering Cart Tank Truck Garden Truck
Product Description
- Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman
- Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
- Sprinking Width of portable water truck :>14M
- Rear working platform with water cannon range of portable water truck :28M
- Reliable and high quality water pump
Specifications of water tank truck:
| General Technical Parameters | |||
|---|---|---|---|
| Overall Dimension | 5500*1700*2100(mm) | ||
| Gross Vehicle Weight | 4015(Kg) | ||
| Curb Weight | 2480(Kg) | ||
| Chassis Specification | |||
| Chassis Brand | FOTON Forland | ||
| Drive model | 4*2 | ||
| Cabin | Single, Left Hand Driving | ||
| Number of Passengers | 3 (2 in cabin, 1 in working platform) | ||
|
Engine |
Model | 4A2-68, 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Power | 50KW/68HP | ||
| Emission standard | EURO 3 | ||
| Displacement | 2270(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse | ||
| Brake System | Air break | ||
| Wheel Base | 2800(mm) | ||
| Front/Rear Axle Loading | 1800/3000(Kg) | ||
| Tire | 6.00R15, 6pcs + 1 spare tire | ||
| Max Driving Speed | 90(km/h) | ||
| Superstructure Specification | ||
|---|---|---|
|
Water Tanker |
Dimension | 2800*1200*800(mm) |
| Material | Q235B carbon steel | |
| Tanker volume | 3000L | |
| Thickness of Tanker | 4mm | |
| Water Pump Material | carbon steel | |
| Vertical suction | 7m | |
| Sprinkling width | 15m | |
| Range of Water Gun | 30m | |
| Pump Flow | 20m³/h | |
| Range of Water Pump | 90m | |
| Other Configuration | High quality vacuum pump, power take off, ball valves, filter screen, water hoses, sprinkler device, manhole, fense&ladder, vice-beams, anti-wave clapboard, metering tube, etc. | |
| Options | Caution light, inlet valve, medicine tray, pneumatic valve, cylinder, sprayer, etc. | |
