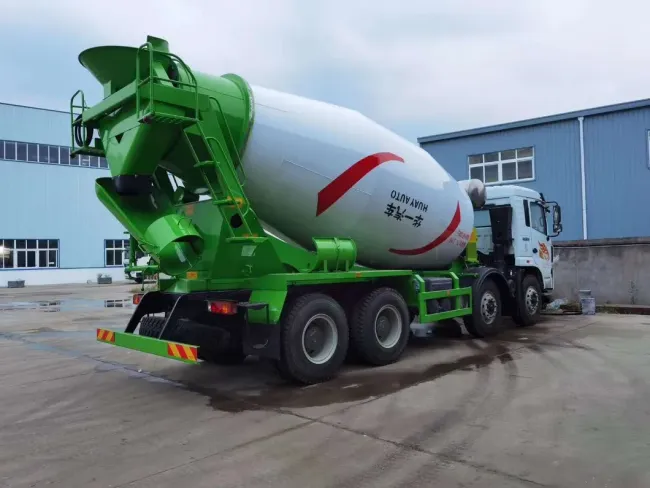

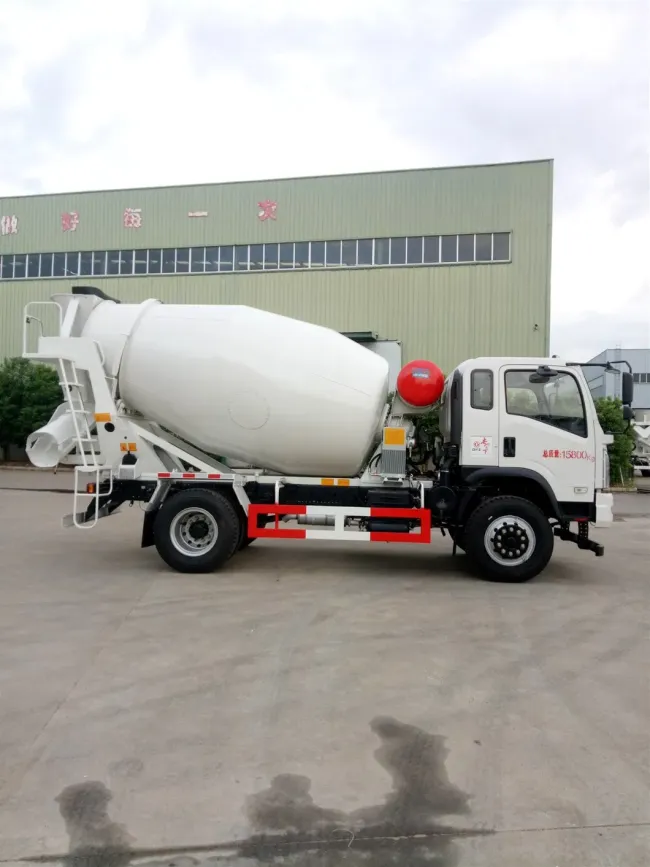

China Dongfeng 6cbm Concrete Mixer Machine Cement Transport Vehicle Concrete Mixer Cement Small Mobile Cement Mixer

Price Negotiable
Price: 15000-35000 per unit
MOQ: 1
Delivery Time: 35days
Brand: CLW
Product Description
China Dongfeng 6cbm Concrete Mixer Machine Cement Transport Vehicle Concrete Mixer Cement Delivery Tansportation Truck
Description:
  • Chassis: Dongfeng, Sinotruk, FOTON/ Forland, Faw, Shacman, etc.
  • High Tension Steel Q345 Tank Material in 5mm.
  • International Brand Motor, Pump, Reductor & Radiator
  • 400Liter Water Tank with Pressure Water Filling
  • Water Filling System to Keep the cement moisture.
  • Tank and hand Washing Device.
Specifications:
CabinNew condition, left hand drive, 4x2








Chassis

BrandDongfeng
Gross vehicle weight16000kg
Curb weight(kg)7530 kg
Wheelbase(mm)3800 mm
Dimensions(mm)7520x2500x3660mm
F/R overhang1400/2290mm
Max. driving speed(km/h)90 km/h
BrakeAir brake
TireNumber6pcs with one spare tire
Specifications9.00R20
Fuel tank(L)200 L
Transmission6 Forwards and 1 Reverse with PTO
CabinIt can accommodate three people, With Air conditioner


Engine

BrandYUCHAI
Horsepower(HP)160 HP
Emission standardEuro 5
Upper

Mixer drum

Max. Capacity6 cbm
MaterialAlloy steel Q345, 4mm thickness
VaneMaterialAlloy steel Q345, 4mm thickness




Specification

Feeding Speed (m3/min)≥2.8
Discharging Speed (m3/min)≥1.2
Discharging Residual rate(%)≤0.5
Mixing Tank Rotating Speed (RPM)0-17
Discharging range180° full range





Driving system

OptionOption 1Option 2Option 3
Hydraulic PumpUS EATON 5423SAUER 75SUNNY 56
Hydraulic MotorUS EATON 5433SAUERSUNNY 63
ReducerGermany ZF4300 brandItaly BonfiglioliChina local brand
RadiatorChina local brand
Water supply systemWater Tank Capacity (liters)300
Water supply typePneumatic water supply
Control systemControl WayConnecting Rod Controlling


Structure Features

  1. Mixer Tank and Vane use special anti-resistant material.
  2. Discharging slot and feeding plate are the same anti-resistant material as the tank.
  3. Humanized Operation System, Connecting Rod Controlling, easy, safe, reliable.
  4. With famous brand driving system. Discharging fast, no residue.
RemarksThe color is optional
