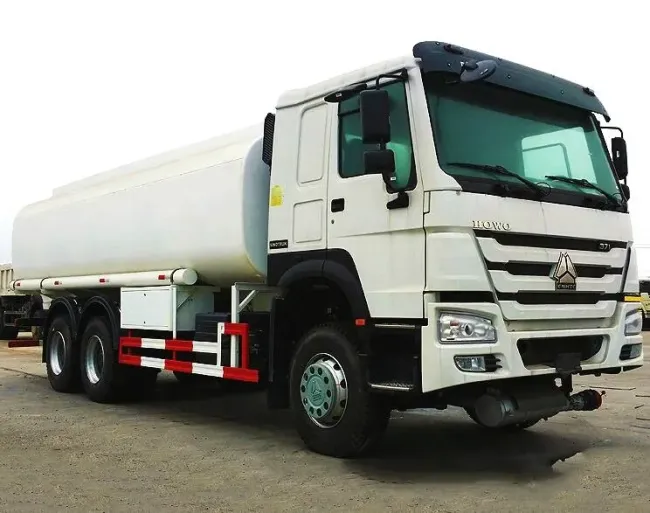

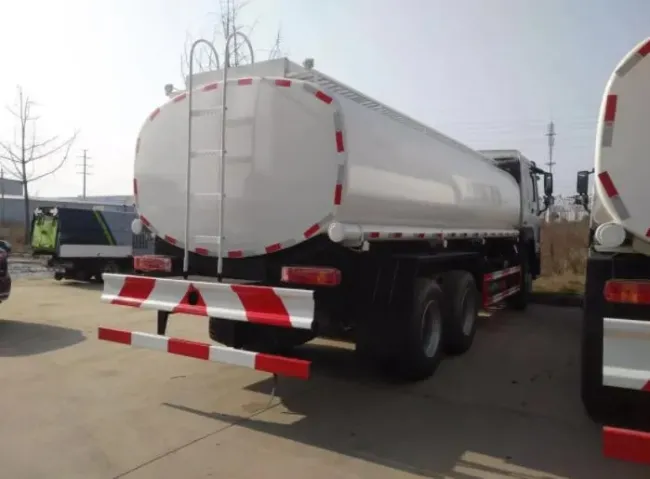

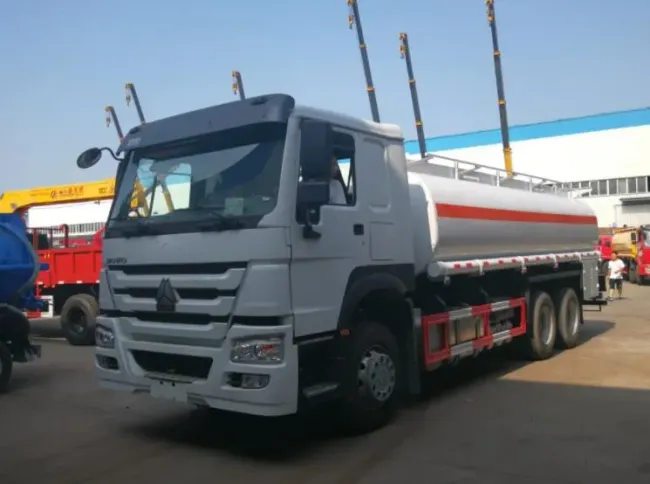

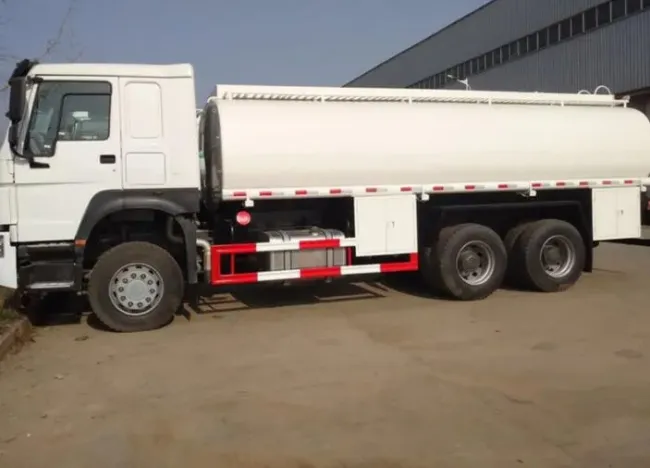

HOWO A7 6X4 380HP 20000L Fuel Tanker Truck / Fuel Delivery Truck Logo Custom
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
HOWO A7 6X4 380HP 20000L Fuel Tanker Truck
Sinotruk Chassis with Engine of 336HP
- High Quality chassis good for many different kinds of road condition.
- Good Quality Tank with different capacity for choice: 10,000 liter to 30,000Liters

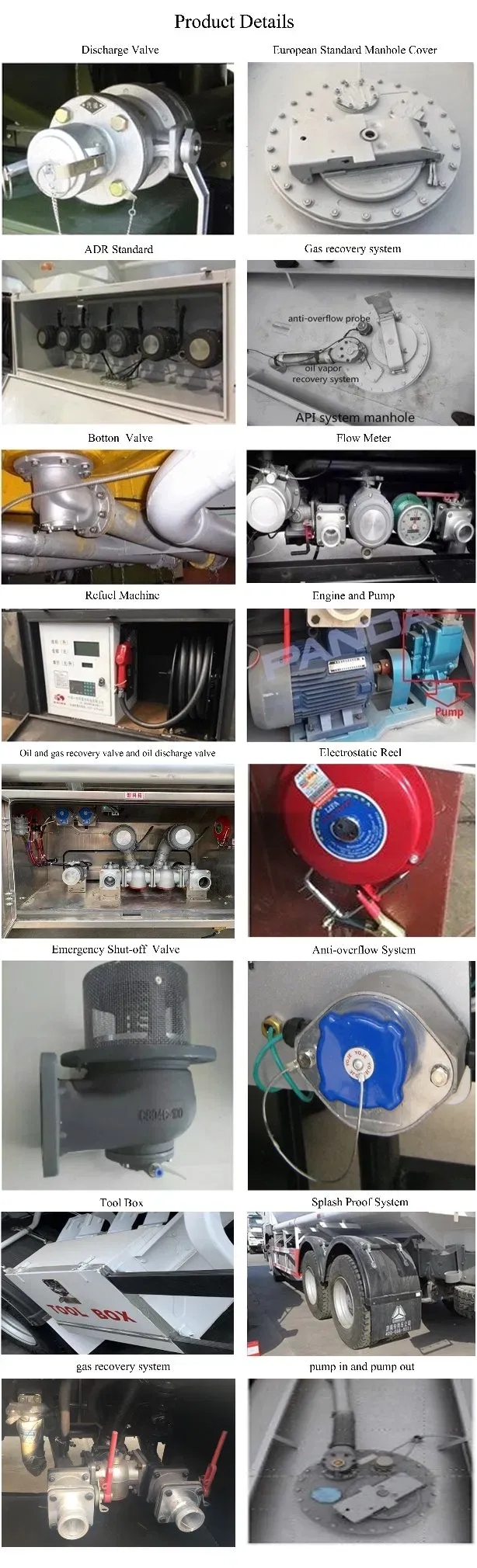

- API Manhole, Emergency cut-off Valve,
- Optional Bottom Discharge, Vapor Recovery system.
Specifications of 20000 liters Fuel Delivery Truck
| Vehicle Description | ||
| Overall dimensions | 9900*2500*3300mm | |
| GVW | 25000kg | |
| Curb weight | 10805kg | |
| Chassis brand | SINOTRUK HOWO | |
| Traction type | 6*4 | |
| Tanker Description | ||
| Tank capacity | 18-24cbm | |
| Tanker material | Carbon steel | |
| Thickness | Tanker body | 5mm |
| End cover | 5mm | |
| Tanker shape | Square | |
| Tanker compartment | 3 compartment (optional: several compartment) | |
|
Standard configuration |
3 set manhole (3 sets manhole for the capacity more than 7000L+7500L+7500L). | |
| Equipped with double discharge valve and valve box. | ||
| Equipped with surge baffles, ladder, roof coaming, skid resistant walkway, and toolbox. | ||
| Electrostatic conducting tape and double fire extinguishers. | ||
|
Optional |
Tanker material: aluminum alloy; stainless steel | |
| Chinese standard configuration is available, or other world famous fuel configuration. | ||
| over flow probe system, vapor recovery system, bottom valve, API adaptors. | ||
| Emergency bottom valve and foldable aluminum handrail. | ||
| Others: fuel pump, refueling dispenser, flow meter,dipstick, etc. | ||
| Chassis Description | ||
| Chassis model | ZZ1257N4641W | |
|
Cab |
HW76-extended cab, single berth, adjustable steering wheel, VDO instrument and control module, safety belt with double locking mechanism, exterior sunroof, air-conditioner. | |
| Wheelbase | 4600+1350mm | |
| Tire specification | 12.00R20 | |
| Tire quantity | 10+1 units | |
|
Engine |
Engine model | WD615.69 |
| Emission level | Euro 2 | |
| Displacement/output | 9726ml/247kw | |
| Horse power | 336hp | |
| Gear box | Model | HW19710 |
| Number of gears | 10 forward gears& 2 reverse, planetary reducer | |
|
Brake system |
Service brake:dual-circuit pneumatic brake; | |
| Parking brake:energy storage spring air cutoff brake; | ||
| Auxiliary brake:engine exhaust brake. | ||
| Axle | Front | HF-9T |
| Rear | ST-16T*2 | |
| Suspension | Front | Leaf springs |
| Rear | Leaf springs | |
| Fuel tanker | Type | Steel tanker, with lockable cap |
| Capacity | 400L | |
