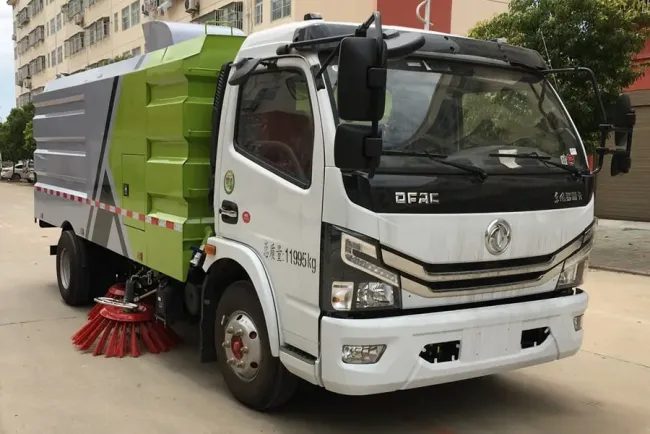

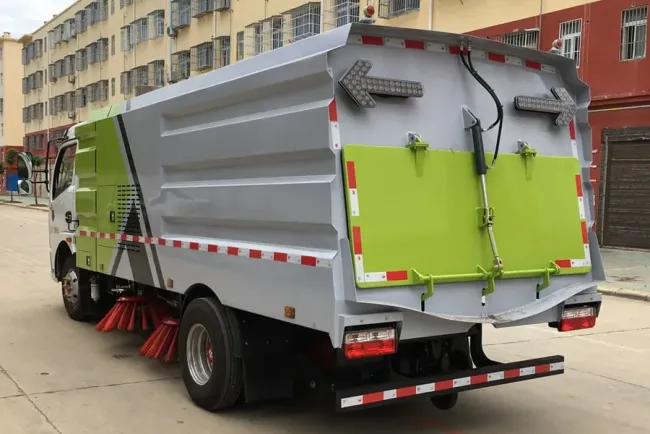

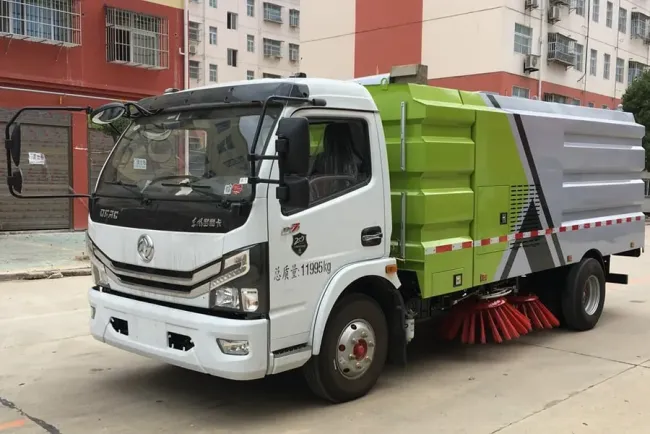

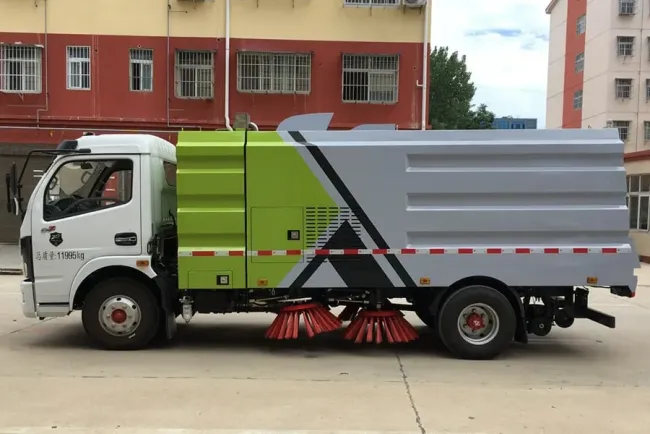

Dongfeng Road Sweeper Truck 5cbm Water Tank for Road Cleaning with 5cbm Dust Tank Suction Debris Collection Mechanism
Dongfeng Road Sweeper Truck 5CBM Dust Tank with 5CBM Water Tank for Road Cleaning
Description:
1. We can supply all brands of special trucks, such as Dongfeng, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
2. The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
3. Certification: ASM, ISO, BV, SGS, CCC etc.
Advantage:
- Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
- The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
- With efficient filtration system
- Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
- Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
| Cabin |
Driving type 4x2 LHD single row,with A/C ,with two seats |
|||||||||||
|
Vehicle Main Dimensions |
Overall dimensions (L x W x H)mm | 7000*2200*2700 | ||||||||||
| Wheel base (mm) | 3800 | |||||||||||
| Approach/Departure angle(°) | 21/12 | |||||||||||
|
Weight in KGS |
Tare Weight | 6405 | ||||||||||
| payload | 4850 | |||||||||||
| Front axles loading capacity | 1x6280 | |||||||||||
| Rear axles loading capacity | 1x4720 | |||||||||||
| Max. driving speed(km/h) | 90 | |||||||||||
|
Engine |
Brand | Chaoyang | ||||||||||
| Horse Power(HP) | 156 | |||||||||||
| Emission standard | Euro III | |||||||||||
| Gearbox | 5 forwards & 1 reverse | |||||||||||
| Steering | left hand drive | |||||||||||
| Tire | 8.25-16,6 tires with one spare | |||||||||||
| Max. Cleaning Width | 3M | |||||||||||
| Sweeper Speed | 3~20 km/h | |||||||||||
| Max. Cleaning Capacity | 60000 m2/h | |||||||||||
| Max. Suction grain size | ≥110mm | |||||||||||
| Dumping angle | ≥45° | |||||||||||
| Hopper | 5000liters,double layer,Stainless steel inside | |||||||||||
| Water tank | 4000Liters | |||||||||||
|
Auxiliary Engine |
Model&Manufacturer | JIANGLING JX493ZQ | ||||||||||
| Type | Four-injection,water-cooling,turbo-charged,diesel engine | |||||||||||
| Power | 77hp/3600r/min | |||||||||||
| Max. Rotation Speed | 2400r/min | |||||||||||
| Oil type | Diesel,share the same fuel box with chassis | |||||||||||
|
Aerator |
Type | High pressure centrifugal Aerator | ||||||||||
| Curb rotation speed | 2600-2900r/min | |||||||||||
| Driving model | Driven by auxiliary engine and transferred by transmission parts,clutch and belts | |||||||||||
| Water sprinkling | Main parts | Water pump,water filter,sprinkler,water box | ||||||||||
|
Electrical system |
Con-structure | Two batteries(in series) | ||||||||||
| Voltage | 24V | |||||||||||
| Battery model | 12-80A.H | |||||||||||
|
Sweeping System |
Type |
2 brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately. Rear brushes and suction nozzle are gang controlled for up and down. |
||||||||||
| Sweeper Diameter | 900mm | |||||||||||
| Sweeper rotation speed | 80r/min | |||||||||||
| Sweeper angle adjustment | Forerake 4°-6°and extroversion 2°-4° | |||||||||||
|
Suction Nozzle |
Type | U-shaped | ||||||||||
| Nozzle diameter | 200mm | |||||||||||
| Nozzle ground clearance when operation | 5-10mm | |||||||||||
