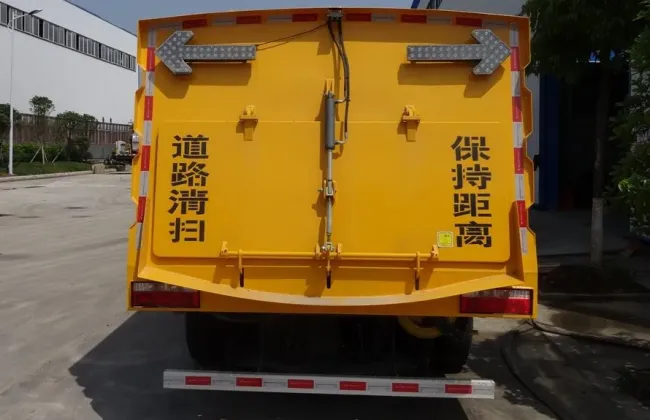

Dongfeng 8cbm Road Sweeper Truck Pavement Sweepers Truck with 4 Brushes Sweeper Ride on
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Dongfeng 8CBM Road Sweeper Truck Pavement Sweepers Truck with 4 Brushes
Description:
- We can supply all brands of special trucks, such as Dongfeng, Sinotruck, Foton, Faw, north Benz(beiben), JAC, JMC, etc.
- The drive type could be 4X2, 4X4, 6X4, 6X6, 8X4.
- Certification: ASM, ISO, BV, SGS, CCC etc.
Advantage:
- Full suction cleaning, no need to replace the brush; easy maintenance, no dust.
- The cleaning effect is perfect, from tens of micron dust to ordinary pebbles, leaves and other debris can be effectively removed
- With efficient filtration system
- Improve cleaning efficiency and reduce cleaning costs: a vacuum cleaner is equivalent to the labor efficiency of more than 30 cleaners.
- Suitable for coal plants, power plants, cement plants, steel plants, mining pavements, etc.
Technical Parameters
|
Technical Parameters |
Condition | New condition/Left hand drive/4x2 | |||||
| Overall Dimension(mm) | 6700x2200x2750 | ||||||
| Gross Vehicle Weight(Kg) | 6995 | ||||||
| Loading Weight(Kg) | 1900 | ||||||
| Curb weight(kg) | 4965 | ||||||
|
Chassis |
Brand | Dongfeng | |||||
| Model | |||||||
| Wheelbase(mm) | 3800 mm | ||||||
| Overhang (front/rear) (mm) | 1015/1815 mm | ||||||
| Wheel track (front/rear) (mm) | 1504/1425 mm | ||||||
| Approach/Departure angle(°) | 24/16° | ||||||
| Axle Load(kg) | 2500/5000 kg | ||||||
| Max. driving speed(km/h) | 90 km/h | ||||||
| Clutch | Reinforced diaphragm clutch | ||||||
| Brakes | Oil brake | ||||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||||
|
Tire |
Quantity(pcs) | 6pcs with one spare tire | |||||
| Specifications | 7.50R16 | ||||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | ||||||
| Cab | Single row seat. With air conditioner. | ||||||
|
Engine |
Model | ||||||
| Displacement(ml) | 2771 ml | ||||||
| Power(kw)/Horsepower(HP) | 95 kw/130 HP | ||||||
| Cylinder quantity(pcs) | 4 pcs | ||||||
| Diámetro x car rera(mm) | φ93×102mm | ||||||
| Emission standard | Euro III | ||||||
| Upper | |||||||
|
Tank |
Garbage tank |
Tank material | Stainless steel | ||||
| Tank volume(cbm) | 6 cbm | ||||||
|
Water tank |
Tank material | Stainless steel | |||||
| Tank volume(cbm) | 2 cbm | ||||||
|
Auxiliary engine |
Model | ISUZU | |||||
| Power(kw)/Horsepower(HP) | 55 kw/75 HP | ||||||
| Fuel type | Diesel | ||||||
|
Sweeping System |
Type |
Fours brushes installed between front and rear axle,driven by gerotor motor. Left and right brushes are controlled to lift up and down separately.Rear brushes and suction nozzle are integrated controlled for up and down. | |||||
| Sweeper Diameter(mm) | 900 mm | ||||||
| Working area(m) | 2.7-3.0 m | ||||||
| Sweeper rotation speed(r/min) | 80 r/min | ||||||
| Cleaning capacity | 40000m2/h | ||||||
| Sweeper angle Adjustment |
Forerake 4°-6°and extroversion 2°-4° | ||||||
|
Remarks |
1, Rear LED pilot lamp 2, Self unloading box body 3, Rear vacuum cleaner 4, The tank color is optional |
||||||
