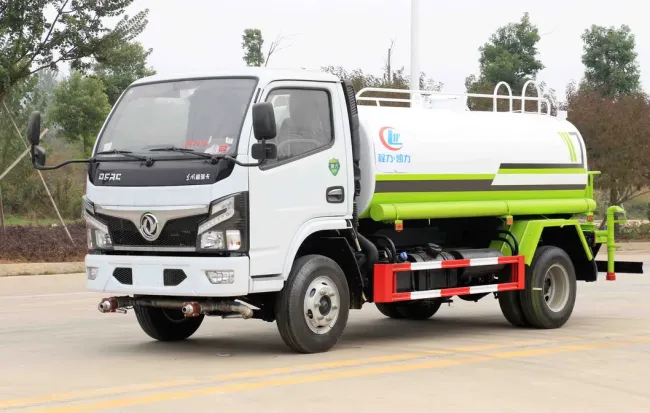

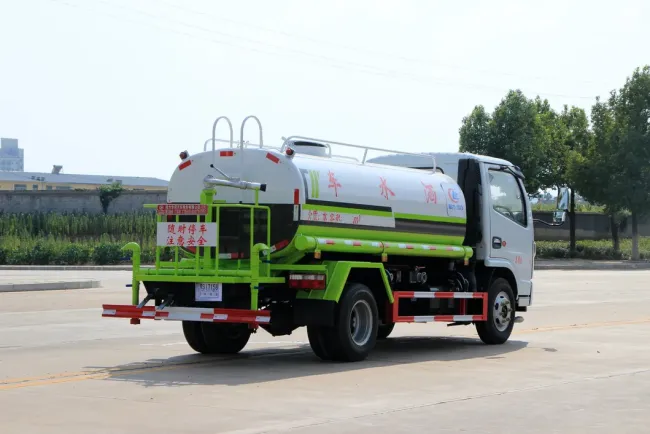

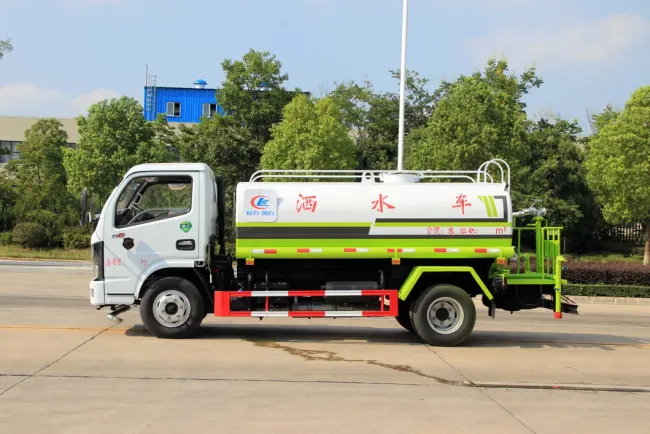

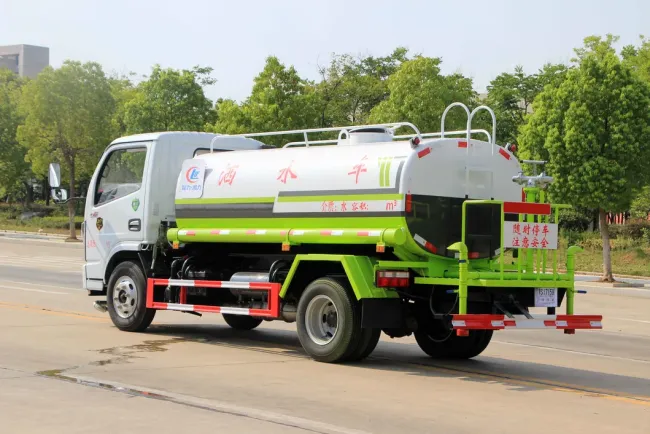

4ton 4000liters 4L Construction Water Truck Street Sprinkler Water Delivery Truck
4ton/4000liters/4L Construction Water Truck Street Sprinkler Water Delivery Truck
Description:
Optional chassis brand of portable water truck: Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman, etc.
Material of portable water truck: High Tension Steel Q235/Q345,stainless steel 304 for option.
Sprinking Width of portable water truck: ≥14M
Rear working platform with water cannon range of portable water truck: ≥28M
Reliable and high quality water pump
| Chassis Specification | ||||
| Item No. | Parameters | |||
| Chassis Brand | DONGFENG | Overall Dimension | 6000×1900×2400mm | |
| Gross Vehicle Weight | 7360kg | Curb Weight | 3360 kg | |
| Loading Weight | 3870 Kg | Wheel Base | 3308 mm | |
| Cabin | Single, Left Hand Driving | |||
| Engine | 88HP, EURO V | |||
| Overhang( Front/Rear) | 1140/1810(mm) | |||
| Fuel type | Diesel | |||
| Axle load | 1800/3500(kg) | |||
| Angle(Approach/departure) | 16/22(°) | |||
| Transmission/Gearbox | 5 Forward & 1 Reverse Gear | |||
| Brake System | Pneumatic | |||
| Steering Gear | Power Assistant | |||
| Tire | 7.00-16, 6 Pieces with 1 spare tire | |||
| Maximum speed | 90(km/h) | |||
| Superstructure | ||||
| Water Tanker | Tank Volume | 4000 Liters / 4m3 | ||
| Tank Material | 5mm Q235B Carbon Steel | |||
|
Sprinkling System: |
Suction height of Truck Pump | >7m | ||
| Full Tank Suction Time | <15 minutes | |||
| Sprinkling width of front/rear/side Sprinkler | ≥14m | |||
| Range of Water Cannon | ≥28m | |||
| Remarks | Other Parts: Self-flow valve 1pc; Fire joint 1pc; Water pipe 2pcs | |||
