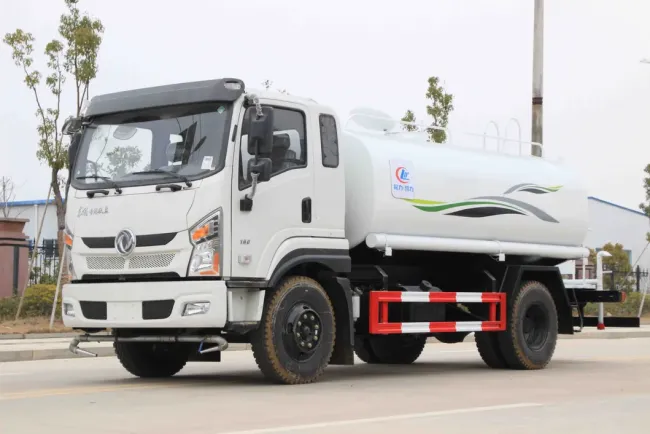

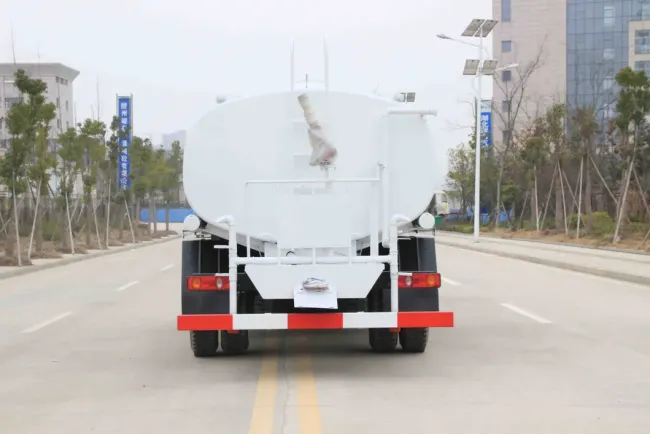

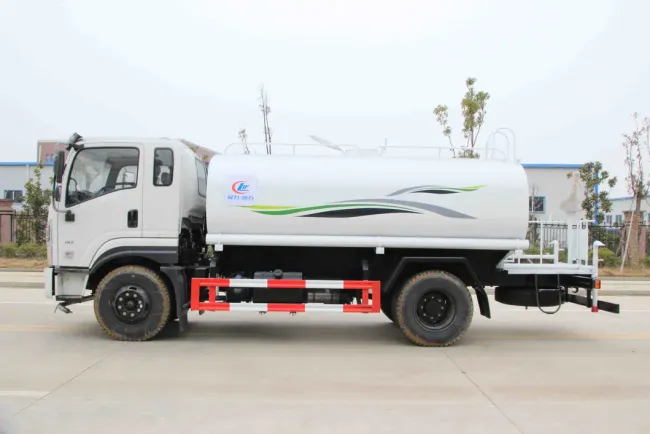

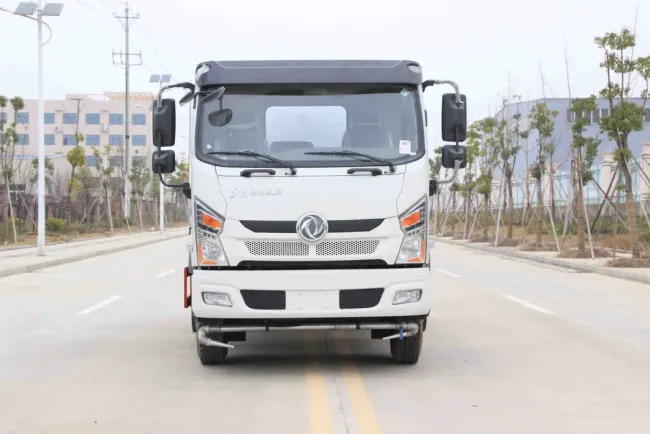

Dongfeng 4X4 14000 Liters Water Sprinkler Truck Full Drive 14ton Water Tanker Truck
Price:
15000-35000 per unit
MOQ:
1
Delivery Time:
Negotiable
Brand:
CLW
Product Description
Dongfeng 4X4 Full Drive 14ton Water Tanker Truck 14000 Liters Water Sprinkler Truck
Product Description
1. Optional chassis brand of portable water truck : Dongfeng, Sinotruk, FOTON/Forland, Faw, Shacaman,
2. Material of portable water truck :High Tension Steel Q235/Q345,stainless steel 304 for option.
3. Sprinking Width of portable water truck :>14M
4. Rear working platform with water cannon range of portable water truck :28M
5. Reliable and high quality water pump
Specifications of 14,000 liters water tanker truck
| Condition | New condition/Left hand drive/4x4 | ||
|
Chassis |
Brand | Dongfeng | |
| Curb weight(kg) | 7205 kg | ||
| Loading weight(kg) | 10600 kg | ||
| Gross weight(kg) | 18000 kg | ||
| Wheelbase(mm) | 4500 mm | ||
| Dimensions(mm) | 7900*2500*3000 mm | ||
| Front Loading Capacity (Ton) | 4.5 | ||
| Rear Loading Capacity (Ton) | 10 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Clutch | Reinforced diaphragm clutch | ||
|
Brakes |
Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels | ||
| Auxiliary brake: engine exhaust valve brake | |||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||
| Tire | Quantity | 8 pcs with one spare tire | |
| Specifications | 10.00R20 | ||
| Transmission | Manual type,6 Forwards and 1 reverse | ||
| Cabin | Single row seat, Tiltable. It can accommodate three people. With air conditioner. | ||
|
Engine |
Brand | ||
| Fuel type | Diesel | ||
| Power(kw) | 140 kw | ||
| Horsepower(HP) | 190 | ||
| Cylinder number | 4 | ||
| Emission standard | Euro II,III | ||
| Upper | |||
|
Water tank |
Capacity(cbm/tons) | 14/14 | |
| Tank Dimension(mm) | 4400*2500*1600 | ||
| Tank material | Q235 carbon steel | ||
| Thickness(mm) | 4 | ||
| Water pump | China local brand | ||
| Suction Height | 7M | ||
|
Function |

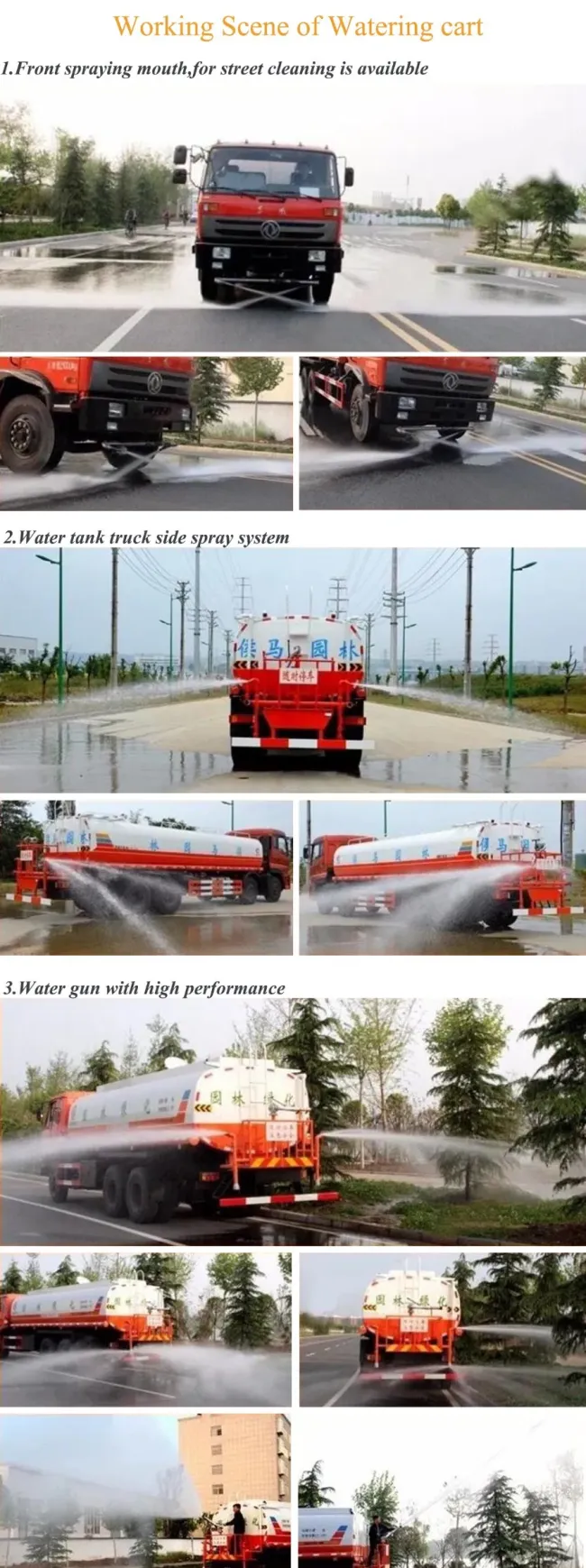

1, Front Side Rear Sprinkling width≥14m 2, Water cannon range≥28m |
||
|
Remarks |
1. AM/FM radio 2. 2pcs water hose. 3. Color is optional |
||
